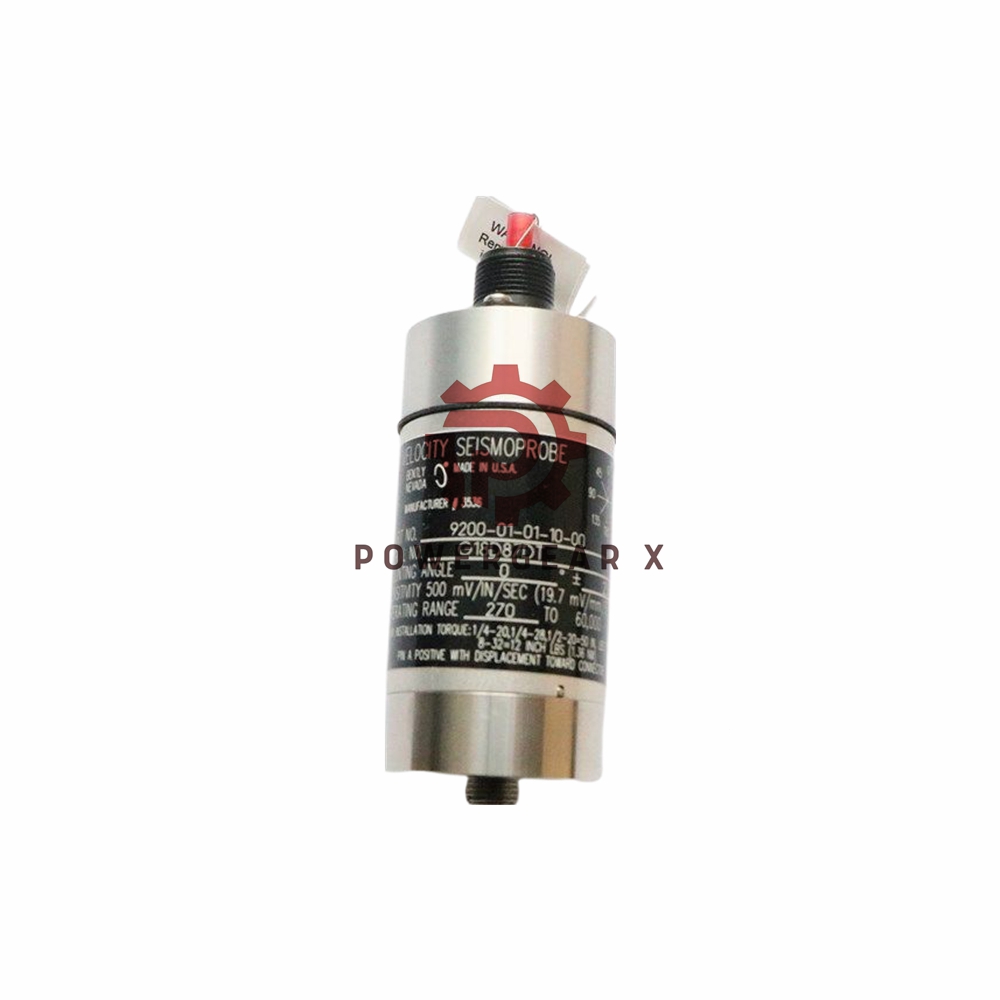

Bently Nevada 9200-01-01-01-00 Two-wire Transducer

Overview

The Bently Nevada 9200-01-01-01-00 Two-Wire Velocity Seismoprobe Transducer is a robust, precise sensor designed to monitor velocity vibration in industrial equipment. Engineered for reliability, it delivers accurate measurements even in demanding environments.

Features

• Wide Frequency Response: 4.5 to 1000 Hz (270 to 60,000 CPM) with a typical ±0, -3dB deviation.
• High Sensitivity: Offers 20 mV/mm/s (500 mV/in/s) ±5% sensitivity.
• Shock Resistance: Endures up to 50 g peak along the non-sensitive axis.
• Durable Construction: Anodized aluminum case ensures longevity in harsh environments.
• Extended Cable Length: Supports up to 305 meters (1,000 feet) between the transducer and the monitor.

Technical Specifications

• Model: 9200
  • Transducer Mounting Angle/Minimum Operating Frequency: 0° ±2.5°, 4.5 Hz (270 CPM)
  • Connector Option: Top mount
  • Circular Thread: 1/4-20 UNC stud
  • Agency Approvals: No approvals required (00 suffix).
• Dynamic Range: Supports velocities up to 25 mm/s (1 in/s) at 100 Hz.
• Operating Temperature: -29°C to +121°C (-20°F to +250°F).
• Coil Resistance: 1.25 kΩ ±5%.
• Calibration Load: 10 kΩ across terminals A and B.
• Dimensions: Height: 102 mm (4 in), Diameter: 41 mm (1.6 in).

Applications

1. Industrial machinery vibration monitoring.
2. Turbine and compressor health analysis.
3. Predictive maintenance for rotating equipment.
4. Use with Bently Nevada 3300 and 3500 Monitoring Systems.

FAQ

1. What does the “9200” represent in the model number?
It identifies the product as a Two-Wire Velocity Seismoprobe Transducer.

2. Can the transducer withstand high shocks?
Yes, it is designed to handle up to 50 g peak maximum acceleration.

3. What is the significance of the “01” suffix?
The “01” suffix specifies a 0° mounting angle and a 4.5 Hz minimum operating frequency.

4. Is it compatible with long cable lengths?
Yes, it supports up to 305 meters (1,000 feet) of lead wire.

5. What is the environmental rating?
It operates reliably between -29°C and +121°C.

Check official datasheet for more detailed information:9200 and 74712 Seismoprobe Velocity Transducers Datasheet
