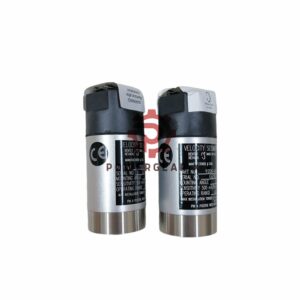

Bently Nevada 9200-01-05-10-00 Two-wire Transducer

Overview

The Bently Nevada 9200-01-05-10-00 Two-Wire Velocity Seismoprobe Transducer is a high-precision sensor designed to measure casing vibrations in industrial environments. Manufactured in the USA, it offers robust performance with exceptional sensitivity and reliability. Its compact design, rugged construction, and advanced features make it suitable for a wide range of applications, including machinery monitoring and vibration analysis.

Features

• Brand & Model: Bently Nevada 9200 Series
• High Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5%
• Rugged Construction: Anodized aluminum case with neoprene gaskets
• Wide Operating Range: Temperature limits from -29°C to +121°C
• Compact Design: 102 mm height and 41 mm diameter
• Shock Resistance: Withstands up to 50 g peak acceleration
• Versatile Mounting Options: M10X1 stud and others available
• Reliable Output Signal: Pin A polarity goes positive towards the connector

Technical Specifications

Brand & Model

• Manufacturer: Bently Nevada
• Product Number: 9200-01-05-10-00
• Suffix Explanation:
  • 01: Frequency range ±2.5, 4.5 Hz (270 cpm)
  • 05: Terminal block top mount (no cable)
  • 10: Circular M10X1 stud
  • 00: No agency approvals required

Performance

• Amplitude Linearity: ±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100 Hz
• Frequency Response: 4.5–1000 Hz; +0, -3 dB typical
• Dynamic Range: 2.54 mm (0.1 in) peak-to-peak maximum displacement
• Velocity Range: Up to 25 mm/s (1 in/s) at 22°C

Electrical Characteristics

• Sensitivity Temperature Coefficient: 0.2%/°C
• Coil Resistance: 1.25 kΩ ±5%
• Locked Coil Inductance: 125 mH typical
• Calibration Load: 10 kΩ across terminals “A” and “B”

Environmental

• Operating Temperature: -29°C to +121°C
• Connector Material: Cadmium-plated aluminum and neoprene
• Gasket Material: Neoprene (9200), Silicone (74712)

Physical Dimensions

• Height: 102 mm (4 in) typical
• Diameter: 41 mm (1.6 in)
• Weight: 300 grams (10.5 ounces)

FAQs

1. What is the primary function of the Bently Nevada 9200 Series?
   The sensor measures casing vibration velocity for industrial machinery monitoring.
2. What materials are used in its construction?
   The transducer housing is anodized aluminum with neoprene or silicone gaskets for durability.
3. What is the maximum lead wire length?
   The sensor supports a maximum wire length of 305 meters (1,000 feet).
4. What type of mounting does the 9200-01-05-10-00 offer?
   It includes an M10X1 stud for secure installation.
5. Does it require special certifications?
   This model comes with no specific agency approval requirements.

Check official datasheet for more detailed information:9200 and 74712 Seismoprobe Velocity Transducers Datasheet
