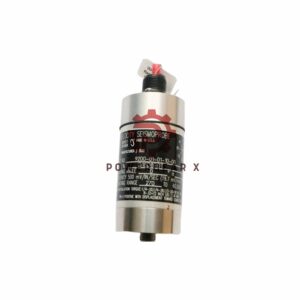

Bently Nevada 9200-06-02-01-00 Two-wire Transducer

Overview

The Bently Nevada 9200-06-02-01-00 is a high-precision two-wire velocity seismoprobe transducer designed for accurate vibration measurement in industrial environments. With its robust build and exceptional performance, it ensures reliability in monitoring machinery dynamics. This transducer is made in the USA and is widely used in applications requiring consistent velocity measurement, such as industrial machinery protection and condition monitoring systems.

Key Features

• Brand: Bently Nevada
• Model: 9200-06-02-01-00
• Design: Side-mount with no cable for flexible installation options.
• Material: Anodized aluminum case with neoprene gasket for durability.
• Connector Options: Cadmium-plated aluminum with neoprene and silver-plated copper materials.
• Temperature Range: Operates efficiently between -29°C to +121°C (-20°F to +250°F).
• Agency Approvals: No additional approvals required (suffix “00”).
• Dynamic Range: Handles up to 2.54 mm (0.100 in) peak-to-peak displacement.

Technical Specifications

• Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5%.
• Frequency Response:
  • 4.5 to 1000 Hz (270 to 60,000 CPM), +0, -3dB typical.
  • 10 to 1000 Hz (600 to 60,000 CPM), +0, -3dB typical.
  • 15 to 1000 Hz (900 to 60,000 CPM), +0, -3dB typical.
• Amplitude Linearity: ±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100 Hz.
• Polarity: Pin A is positive relative to Pin B when the case velocity is directed towards the connector.
• Shock Resistance: Withstands a maximum acceleration of 50 g along the non-sensitive axis.
• Lead Wire Length: Up to 305 meters (1,000 feet).
• Mounting Torque: 5.6 N·m (50 in·lbf).
• Physical Dimensions:
  • Height: 102 mm (4 inches).
  • Diameter: 41 mm (1.6 inches).
  • Weight: 300 grams (10.5 ounces).
• Coil Resistance: 1.25 kΩ ±5%.
• Locked Coil Inductance: 125 mH typical.

FAQs

1. What does the suffix “06-02-01-00” indicate?
   • 06: ±100 mV sensitivity at 10 Hz.
   • 02: Side mount with no cable.
   • 01: Circular; 1/4-20 UNC stud.
   • 00: No additional agency approvals.
2. What is the maximum lead wire length?
   • The transducer supports up to 305 meters (1,000 feet) of lead wire between it and the monitoring system.
3. What kind of environments can the 9200 Series withstand?
   • It is designed to operate in extreme temperatures (-29°C to +121°C) and resists high shock and vibration conditions.
4. Is this model compatible with Bently Nevada 3300 or 3500 monitors?
   • Yes, it integrates seamlessly with Bently Nevada’s 3300 and 3500 Monitoring Systems.

Check official datasheet for more detailed information:9200 and 74712 Seismoprobe Velocity Transducers Datasheet
