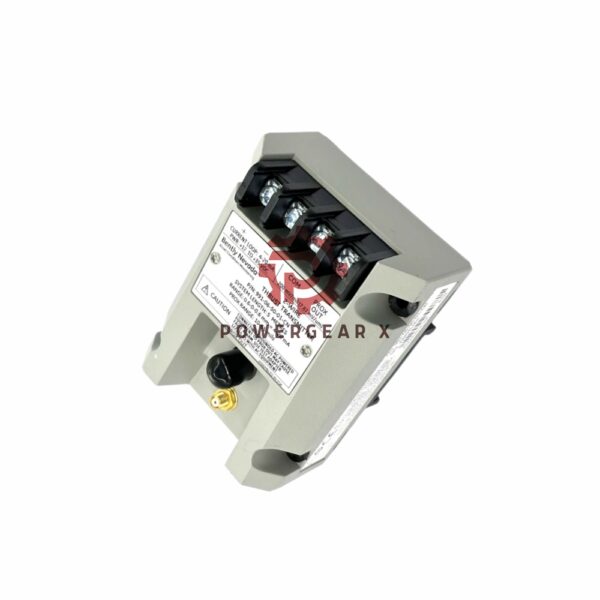

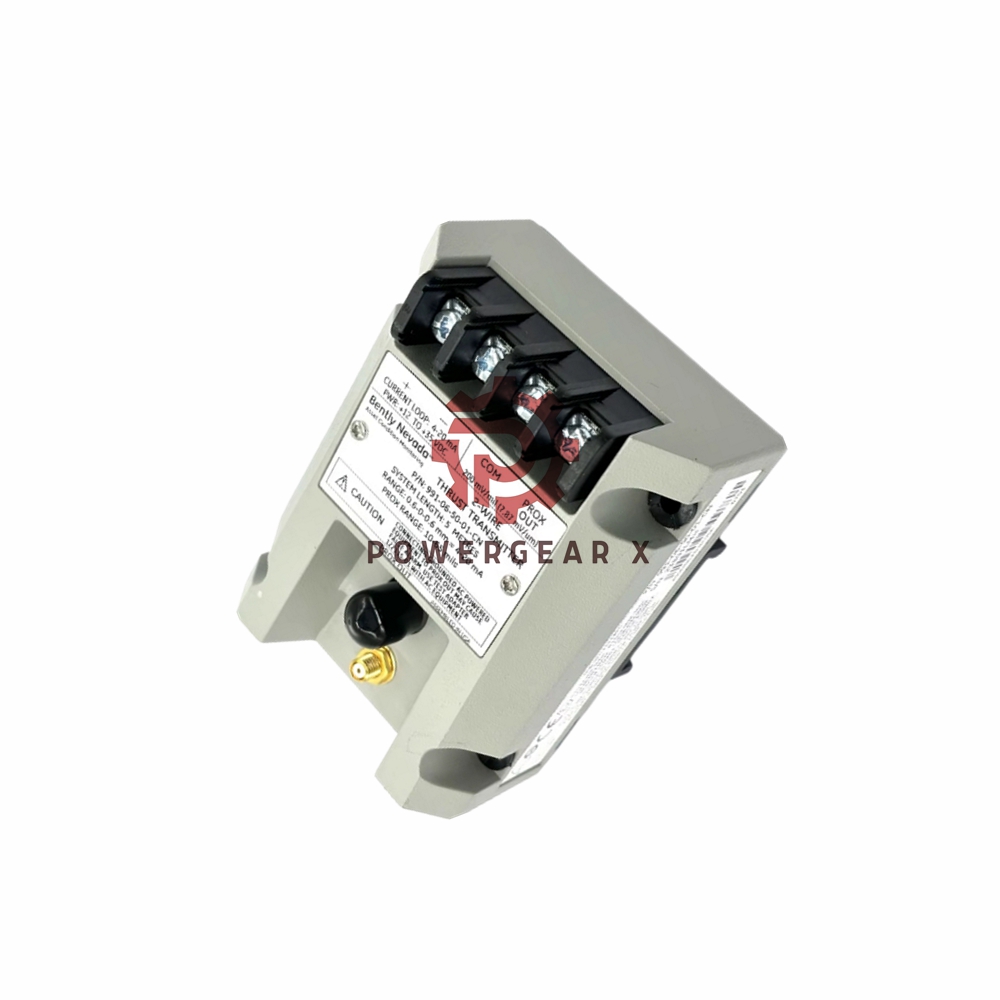

Bently Nevada | 991 Thrust Transmitter 991-06-50-01-CN

Product Features for 991-06-50-01-CN

• Brand: Bently Nevada
• Model: 991-06-50-01-CN
• Made in U.S.A
• Full-Scale Range: 0 to 0.6 mm (0-0.6 mm)
• Mounting Options: 35 mm DIN-rail clips
• Power Supply: 12 to 35 Vdc input
• Output: 4 to 20 mA over specified full-scale range
• Accuracy: ±1.5% typical over the full-scale range
• Material: Stainless Steel (AISI 303 or 304) for case, Polyphenylene sulfide (PPS) for transducer tip
• Weight: 0.43 kg (0.9 lb)
• Temperature Stability: Remains within ±10% of the scale factor from 0°C to +70°C (+32°F to +158°F)
• Maximum Loop Resistance: 1,000 Ω
• Cable: 75Ω coaxial, fluoroethylene propylene (FEP) insulated, with optional flexible AISI 302 SST armor
• Tensile Strength: 222 N (50 lbf) maximum for probe case to probe lead
• Transmitter Output Impedance: 10 kΩ, calibrated for 10 MΩ load

Technical Specifications

• Brand: Bently Nevada
• Model: 991-06-50-01-CN
• Full-Scale Range: 0 to 0.6 mm
• System Length: 5.0 meters (16.4 feet)
• Mounting Option: DIN-rail clips (35 mm)
• Power Supply: +12 to +35 Vdc at the transmitter terminal
• Accuracy: ±1.5% over full-scale range
• Maximum Loop Resistance: 1,000 Ω at 35 Vdc
• Current Limiting: 23 mA typical
• Transducer Tip: Polyphenylene sulfide (PPS)
• Transducer Case: Stainless Steel (AISI 303 or 304)
• Probe Cable: 75Ω coaxial, fluoroethylene propylene (FEP) insulated
• Cable Armor: Flexible AISI 302 SST with optional FEP outer jacket
• Temperature Range: From 0°C to +70°C
• Sensor Output: Compatible with ungrounded portable test equipment
• Signal Output: 4 to 20 mA over the specified full-scale range
• Max Distance for Signal: 13 km (8 miles)

FAQ

• Q: What is the accuracy of the Bently Nevada 991-06-50-01-CN Thrust Transmitter?
  A: The accuracy is within ±1.5% over the specified full-scale range, typically.
• Q: What is the required power supply?
  A: The transmitter requires +12 to +35 Vdc at the transmitter terminal.
• Q: Can this transmitter be used in hazardous environments?
  A: Yes, the transmitter is suitable for non-hazardous and Zone 2 or Div 2 hazardous area locations.
• Q: What is the maximum cable length for the probe sensor?
  A: The maximum cable length for the probe sensor is 3 meters (10 feet).

For more detailed information:991 Thrust Transmitter Datasheet
