Product details
Key Features
- Robust Design: Constructed from 316L stainless steel for durability.
- High Sensitivity: Sensitivity of 2.5 mV/m/s² (25 mV/g) ±5%.
- Wide Acceleration Range: Capable of measuring up to 735 m/s² (75 g) peak overall acceleration within a frequency range of 10 Hz to 15 kHz.
- Temperature Operation: Operates in extreme temperatures from -55°C to +121°C (-67°F to +250°F).
- IP68 Rating: Sensor is dust-tight and watertight, ensuring reliable performance in harsh conditions.
Technical Specifications

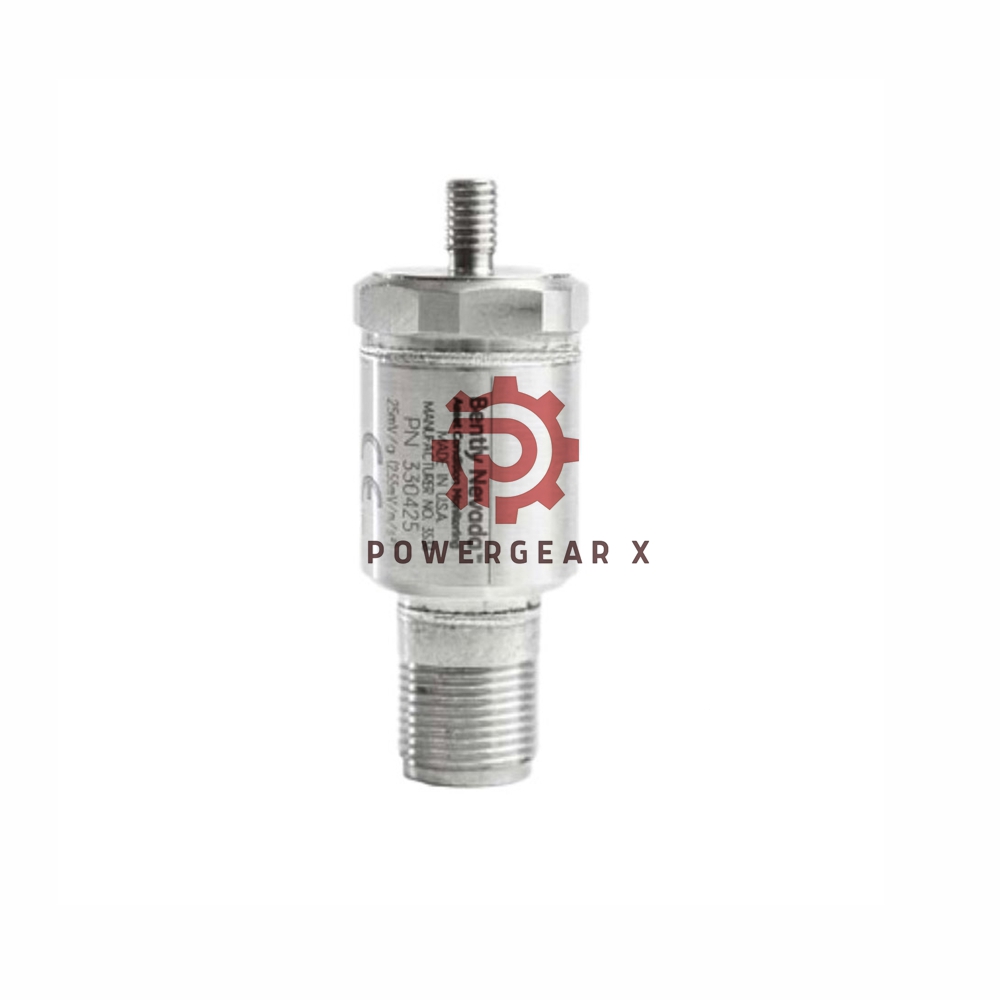

- Brand: Bently Nevada
- Model: 330425-01-05
- Type: Accelerometer Acceleration Transducer
- Sensitivity: 2.5 mV/m/s² (25 mV/g) ±5%
- Acceleration Range: 735 m/s² (75 g) peak
- Frequency Response:
- 10 Hz to 15 kHz (±3dB)
- 30 Hz to 10 kHz (±10%)
- Temperature Sensitivity: -11% to +3% typical
- Transverse Sensitivity: Less than 5% of axial
- Resonant Frequency: Greater than 30 kHz
- Weight: 100 g (3.5 oz) without cable
- Dimensions:
- Diameter: 23 mm (0.93 in)
- Height: 59 mm (2.3 in), including mounting stud
- Connector: 3-pin MIL-C-5015 Receptacle
- Mounting Torque: 4.1 N·m (3.0 ft·lb)
- Environmental Compatibility:
- Relative Humidity: 100% condensing, non-submerged
- Shock Survivability: 49,050 m/s² (5000 g) peak maximum
- Magnetic Field Susceptibility: <2.21 mm/s²/gauss (225 mg/gauss) at 50 gauss, 50-60Hz
- Mounting Thread Option: 0 1 ¼-28 UNF integral stud
- Agency Approval Options: Multiple approvals (CSA, ATEX, IECEx)
FAQ
Q: What is the primary use of the Bently Nevada 330425-01-05?
A: It is primarily used for vibration monitoring in industrial machinery and systems.
Q: What materials is the transducer constructed from?
A: The transducer is made from 316L stainless steel, providing robustness and corrosion resistance.
Q: What is the maximum operating temperature?
A: The transducer operates effectively in temperatures ranging from -55°C to +121°C (-67°F to +250°F).
Q: Is the transducer suitable for high humidity environments?
A: Yes, it can operate in 100% condensing humidity without being submerged.
For more detail information: 330400 and 330425 Accelerometer Acceleration Transducers Datasheet
