🔹 Overview

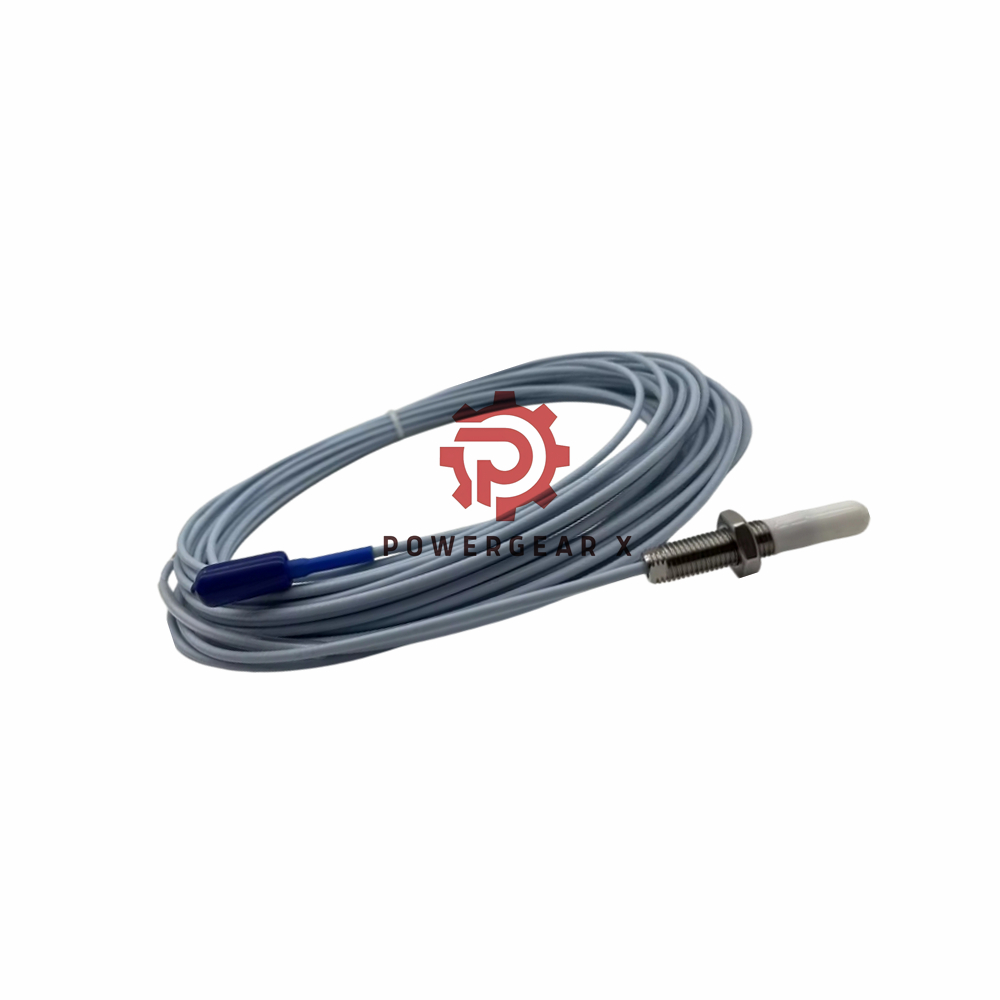

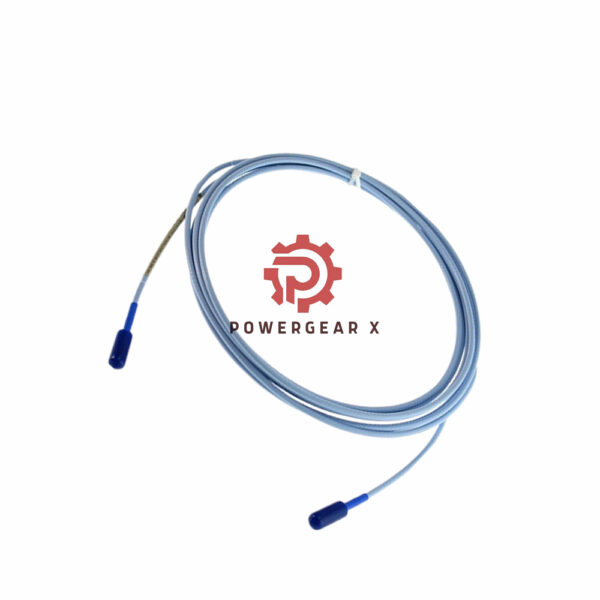

The Bently Nevada 330190-035-01-00 is a 3300 XL Extended Temperature Range (ETR) Extension Cable, for high-performance applications in industrial environments. With its 75Ω triaxial perfluoroalkoxy (PFA) insulation, it ensures exceptional durability and resistance to extreme temperatures ranging from -52°C to +260°C (-62°F to +500°F).
🔧 Technical Specifications
- Brand: Bently Nevada
- Model: 330190-035-01-00
- Cable Type: 3300 XL Extended Temperature Range (ETR) Extension Cable
- Cable Length Option: 035 (3.5 meters / 13.1 feet)
- Approvals: 00 (Not Required)
- Cable Material: 75Ω triaxial, perfluoroalkoxy (PFA) insulated
- Connector Material: Gold-plated brass or gold-plated beryllium copper
- Maximum Connector Torque: 0.565 N•m (5 in•lbf)
- Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) (typical)
- Nominal DC Resistance:
- Center Conductor (RCORE): 0.66 ± 0.10 Ω (for 3.0 m length)
- Outer Conductor (RJACKET): 0.20 ± 0.04 Ω (for 3.0 m length)
- Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), 3-conductor shielded triad cable recommended
- Maximum Wiring Length: 305 meters (1,000 feet)
- Linear Range: 2 mm (80 mils) from 0.25 to 2.3 mm (10 to 90 mils) (-1 to -17 Vdc)
- Operating & Storage Temperature: -52°C to +260°C (-62°F to +500°F) ❄️🔥
📦 Ordering Information
To ensure proper installation, the probe length and extension cable length must match the total length required for the Proximitor Sensor. Available in multiple probe lengths, including 0.5, 1, 1.5, 2, 5, or 9 meters.
❓ FAQ
🔹 Q: Can this cable be used with turbine oil exposure?
👉 No, silicone tape is included but not recommended if exposed to turbine oil. 🛢️
🔹 Q: Does this cable support armored options?
👉 Yes, 01 (Armored Cable) is available for enhanced protection. 🏅
🔹 Q: How do I ensure compatibility with my Proximitor Sensor?
👉 The total cable length, including the probe, must match the sensor’s specifications. 📏
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
