Bently Nevada | Armored Extension Cable 330130-075-03-05

Overview

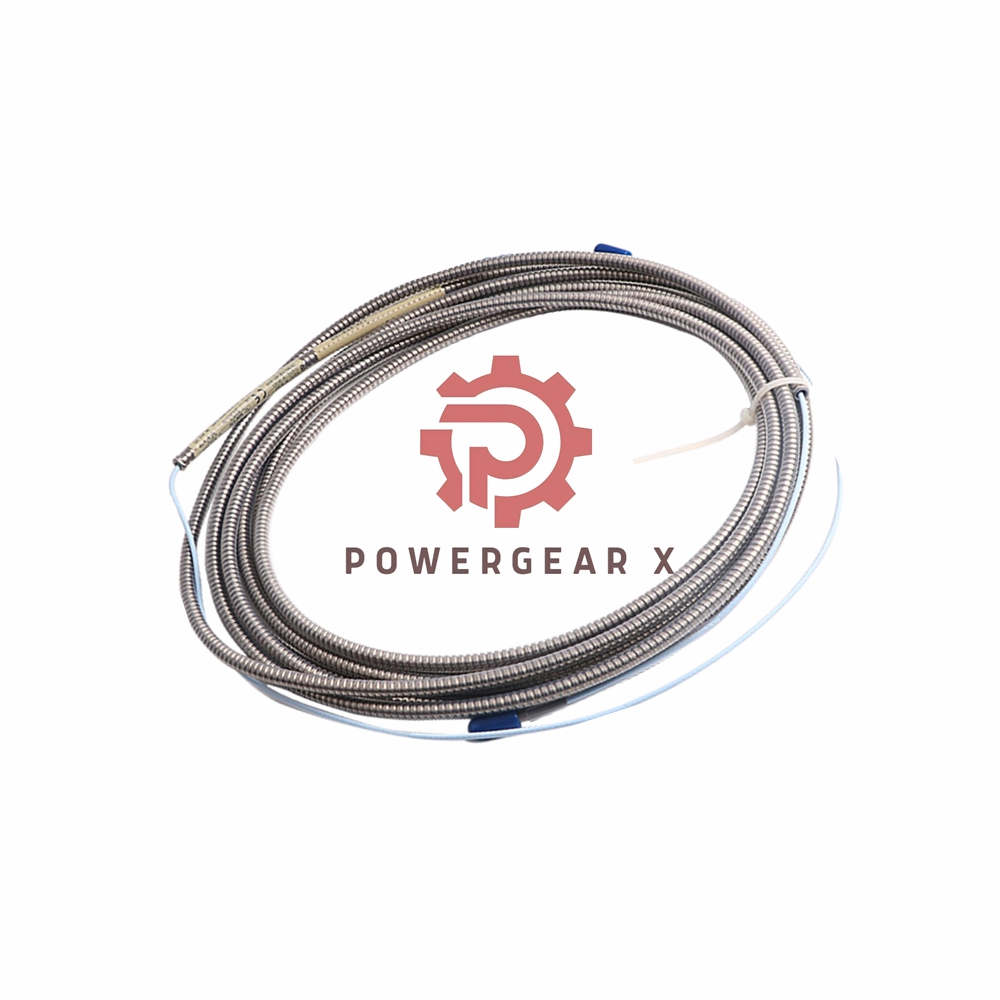

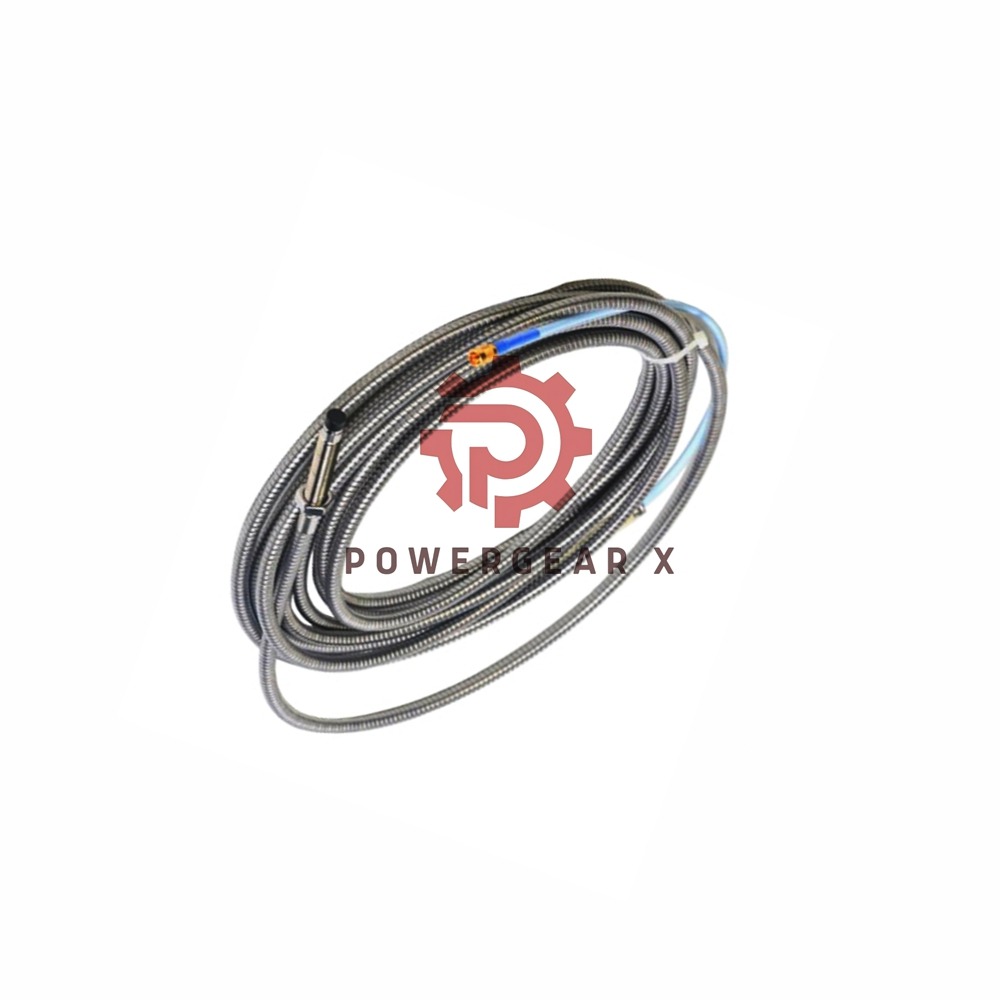

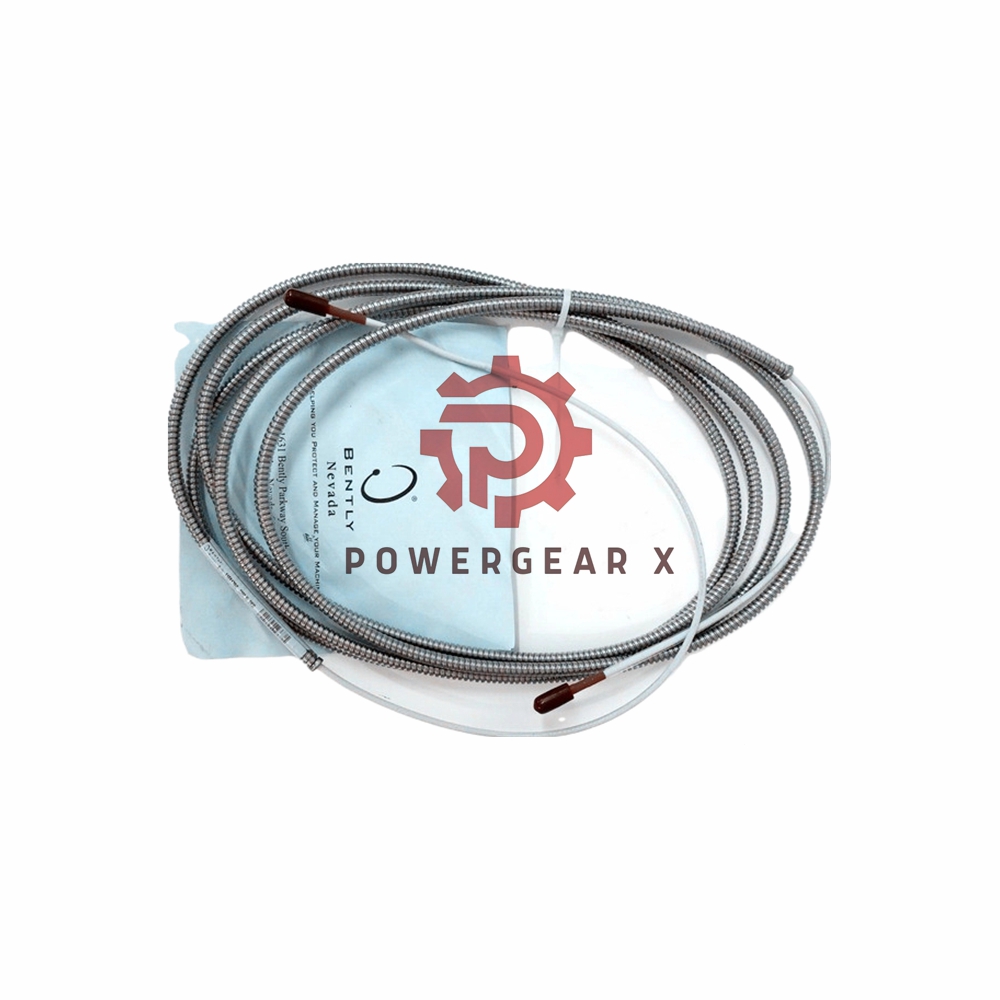

The Bently Nevada 330130-075-03-05 Extension Cable is a reliable and high-performance component designed for precision vibration monitoring systems. Made in the USA, it is engineered for robust operation under challenging industrial conditions. This cable is part of the 3300 XL product line, offering superior quality with features like advanced molding methods and enhanced resistance capabilities.

Technical Specifications

General Information

• Brand: Bently Nevada.
• Model: 330130-075-03-05.
• Suffix Breakdown:
  • 075: Cable length (7.5 meters).
  • 03: Armored cable with connector protectors.
  • 05: Approvals (CSA, ATEX, IECEx).

Electrical Specifications

• DC Resistance (Center Conductor):
  • Length of Cable: 7.5 meters.
  • RCORE: 1.65 ± 0.25 Ω.
• DC Resistance (Outer Conductor):
  • Length of Cable: 7.5 meters.
  • RJACKET: 0.49 ± 0.10 Ω.
• Capacitance: 69.9 pF/m (21.3 pF/ft).
• Supply Voltage: -17.5 Vdc to -26 Vdc, with up to 12 mA current consumption.
• Output Resistance: 50 Ω.

Physical Specifications

• Weight:
  • 103 g/m (1.5 oz/ft) for armored cables.
• Operating Temperature Range: +18˚C to +27˚C (+64˚F to +80˚F).

Frequently Asked Questions (FAQ)

• Q1: What are the primary certifications of this extension cable?
  A1: The 330130-075-03-05 is certified with CSA, ATEX, and IECEx approvals, ensuring compliance with global industrial safety standards.
• Q2: How does the FluidLoc option enhance the cable?
  A2: The FluidLoc option prevents the leakage of oil or other liquids through the cable’s interior, improving its suitability for fluid-intensive environments.
• Q3: What is the linear range of the cable?
  A3: The linear range of the cable begins at approximately 0.25 mm (10 mils) and extends up to 2 mm (80 mils).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
