Bently Nevada | Armored FluidLoc Cable 330130-045-13-05

Overview

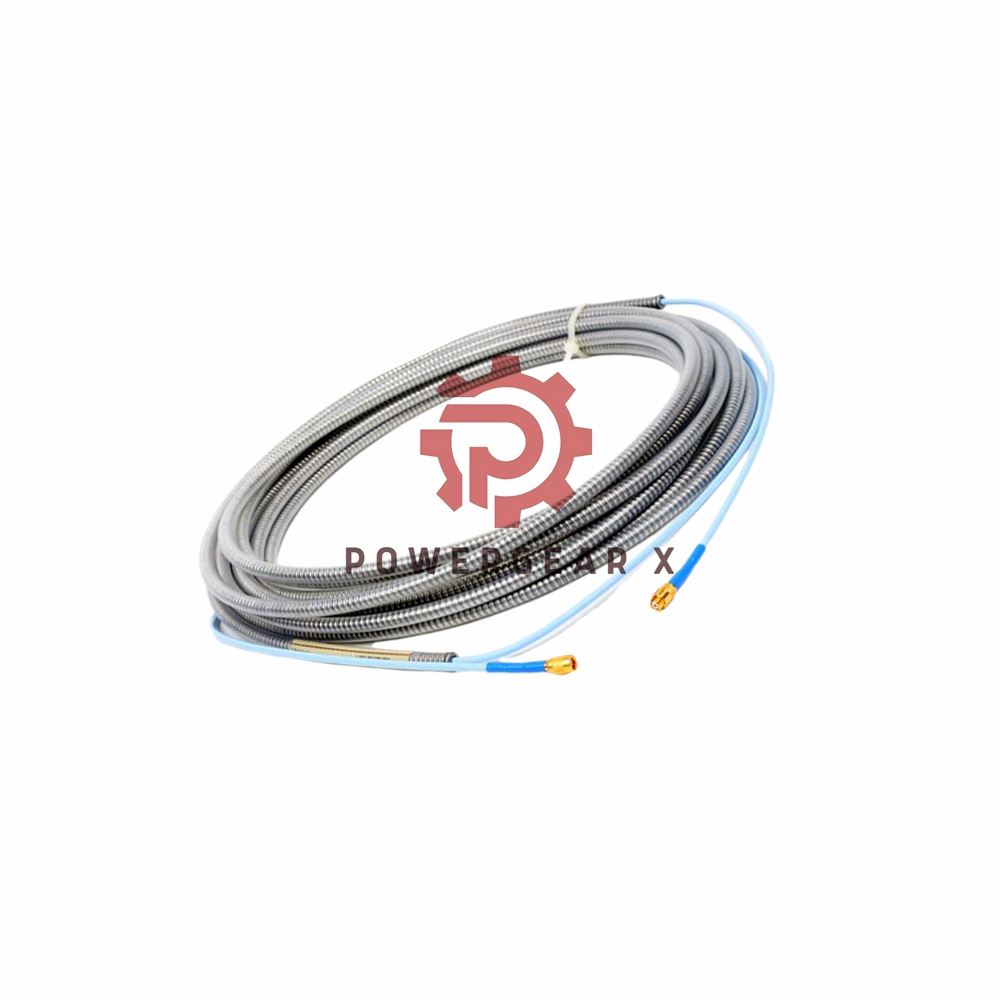

The Bently Nevada 330130-045-13-05 Extension Cable is designed for use with 3300 XL 8 mm Proximity Probes. Manufactured in the U.S.A, this cable offers robust features, including an armored FluidLoc cable option and a connector protector. It is CSA, ATEX, and IECEx approved, ensuring reliable and safe operation in hazardous environments. The 4.5-meter length (14.8 feet) option makes it ideal for various industrial applications.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-045-13-05
• Product Type: Extension Cable
• Cable Length: 4.5 meters (14.8 feet)
• Cable Type: 13 Armored FluidLoc cable with connector protector
• Made In: U.S.A
• Certificate of Origin (COO): Available
• Approvals: CSA, ATEX, IECEx
• Nominal Extension Cable DC Resistance:
  • RCORE (Center Conductor to Center Conductor, 4.5 meters): 0.99 ± 0.15 Ω
  • RJACKET (Outer Conductor to Outer Conductor, 4.5 meters): 0.30 ± 0.06 Ω
• Resistance:
  • Requires -17.5 Vdc to -26 Vdc power when installed with a non-incendive circuit.
  • -23 Vdc to -26 Vdc with barriers.
• Power Consumption: 12 mA maximum.
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
• Output Resistance: 50 Ω
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft), typical.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG). Recommend using 3-conductor shielded triad cable and tinned field wiring.
• Linear Range:
  • 2 mm (80 mils) linear range starts at approximately 0.25 mm (10 mils) from the target and extends from 0.25 to 2.3 mm (10 to 90 mils), with a voltage range of -1 to -17 Vdc.

FAQ

• Q1: What is the recommended installation environment for this extension cable?
• The cable is ideal for use in environments with CSA, ATEX, and IECEx approvals. It operates within a temperature range of +18˚C to +27˚C (+64˚F to +80˚F) at a maximum altitude of 2000 meters.
• Q2: What is the linear range of this extension cable?
• The linear range is 2 mm (80 mils), beginning at approximately 0.25 mm (10 mils) from the target.
• Q3: How does the FluidLoc option work?
• The FluidLoc option prevents oil and other liquids from leaking through the cable’s interior, ensuring a secure and clean connection.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
