Bently Nevada | ETR Extension Cable 330190-080-00-00

Overview

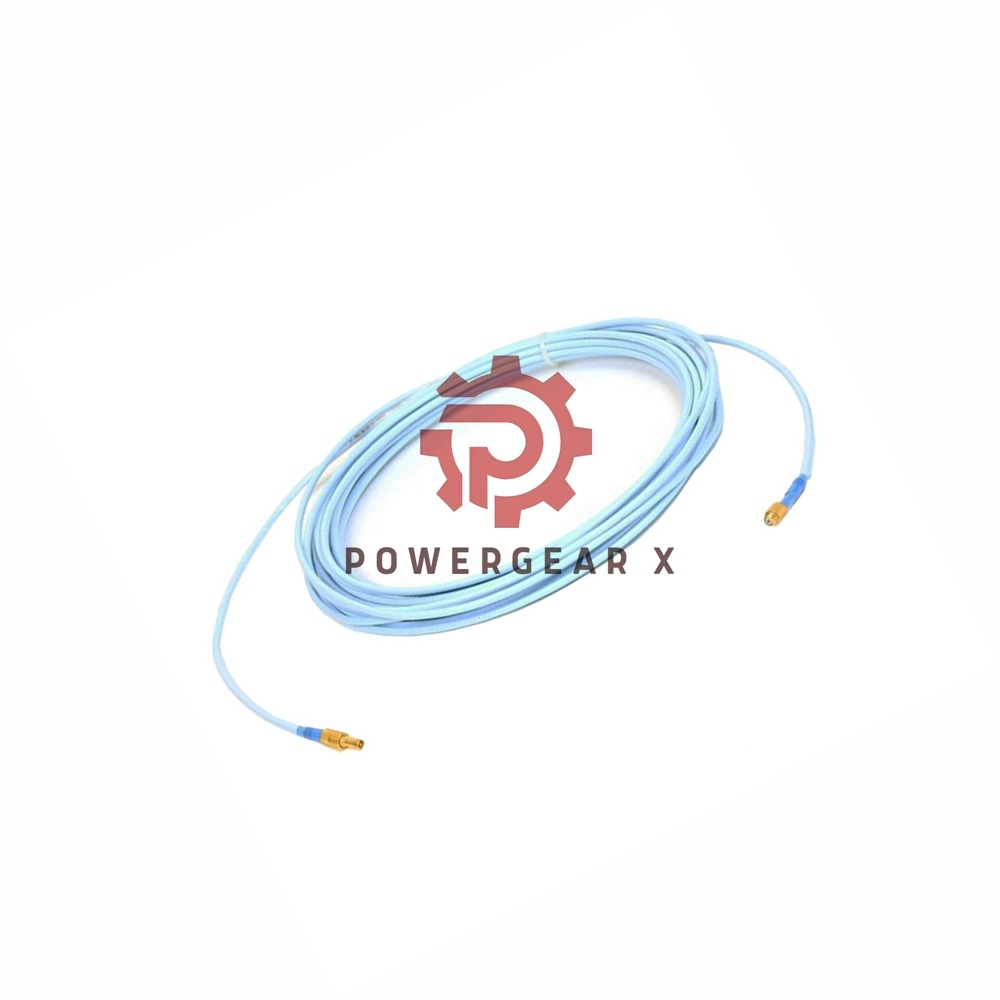

The Bently Nevada 330190-080-00-00-3300 XL Extended Temperature Range (ETR) Extension Cable is designed to enhance the performance and reliability of the 3300 XL series proximity probes. It is engineered with a 75 Ω triaxial fluoroethylene propylene (FEP) insulated cable, making it durable and resistant to harsh conditions. This extension cable offers superior protection with its patented CableLoc and TipLoc designs, ensuring stronger bonds and securing the probe cable, making it ideal for high-performance machinery monitoring.

Technical Specifications

• Brand: Bently Nevada
• Model: 330190-080-00-00
• Product Type: 3300 XL ETR Extension Cable
• Cable Length: 8.0 meters (26.2 feet)
• Power Requirements: -17.5 Vdc to -26 Vdc with non-incendive circuit; -23 Vdc to -26 Vdc with barriers
• Output Resistance: 50 Ω
• Temperature Range:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Probe Cable: -51°C to +260°C (-60°F to +500°F)
• Weight: 0.289 kg
• Material: Polyphenylene sulfide (PPS) for the probe tip
• Certification: Optional Certificate of Origin (COO) available

FAQ

1. What is the cable length?
   The cable length is 8.0 meters (26.2 feet).
2. Is the cable resistant to high temperatures?
   Yes, the extension cable supports extended temperature ranges up to +260°C for the cable and connector, ensuring reliable performance in high-temperature environments.
3. What is the significance of the FluidLoc option?
   The FluidLoc option prevents liquids such as oil from leaking out of the machinery through the cable’s interior, ensuring that the system remains intact during operation.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
