Bently Nevada | Extension Cable 330130-045-12-05

Overview:

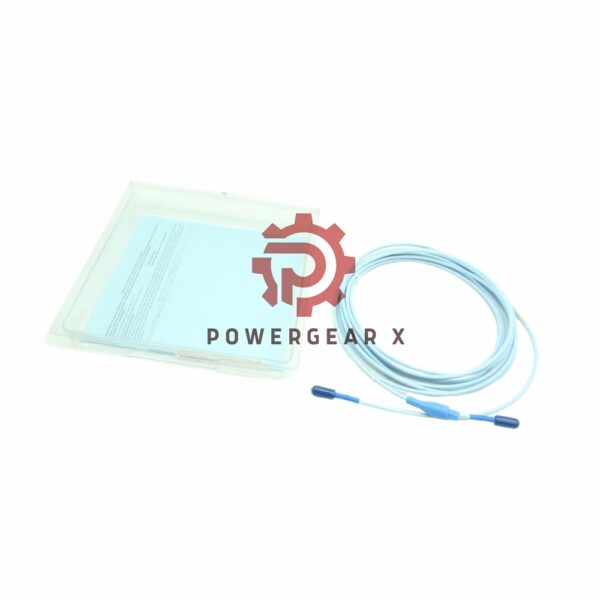

The Bently Nevada 3300 XL Extension Cable (Part No. 330130-045-12-05) is designed for use with 3300 XL series proximity probes. It is built to provide reliable connections in industrial applications, offering an ideal solution for extending the reach of your monitoring systems. The cable includes a FluidLoc option for enhanced protection against liquid leakage and is equipped with CSA, ATEX, and IECEx approvals. Silicone tape is also provided for added protection, though it is not recommended for applications exposed to turbine oil.

Key Specifications:

• Manufacturer: Bently Nevada
• Product No.: 330130-045-12-05
• Cable Length: 4.5 meters (14.8 feet)
• Cable Type: 12 FluidLoc cable with connector protector
• Approvals: CSA, ATEX, IECEx
• Country of Origin: Made in U.S.A
• Certificate of Origin (COO): Available upon request

Electrical and Mechanical Specifications:

• Nominal DC Resistance (RCORE):
  • 0.99 ± 0.15 Ω (for 4.5 meters)
• Nominal DC Resistance (RJACKET):
  • 0.30 ± 0.06 Ω (for 4.5 meters)
• Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring:
  • Compatible with wire gauges from 0.2 to 1.5 mm² (16 to 24 AWG)
  • Recommended: 3-conductor shielded triad cable with tinned wiring
• Power Requirements:
  • -17.5 Vdc to -26 Vdc for non-incendive circuits
  • -23 Vdc to -26 Vdc with barriers
• Supply Sensitivity:
  • Less than 2 mV change per volt change in input
• Output Resistance:
  • 50 Ω
• Maximum Field Wiring Length:
  • 305 meters (1,000 feet)
• Linear Range:
  • 2 mm (80 mils)
  • Linear range starts from 0.25 mm (10 mils) to 2.3 mm (90 mils)

FAQs:

1. What is the maximum length of the 3300 XL extension cable?
   • The maximum length is 305 meters (1,000 feet), allowing flexibility in system design.
2. Is this extension cable suitable for hazardous environments?
   • Yes, the cable meets CSA, ATEX, and IECEx approval standards for use in hazardous locations.
3. What are the power requirements for the 3300 XL extension cable?
   • It requires a -17.5 Vdc to -26 Vdc power supply when installed with a non-incendive circuit.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
