Bently Nevada | FluidLoc Cable 330130-080-10-05

Overview

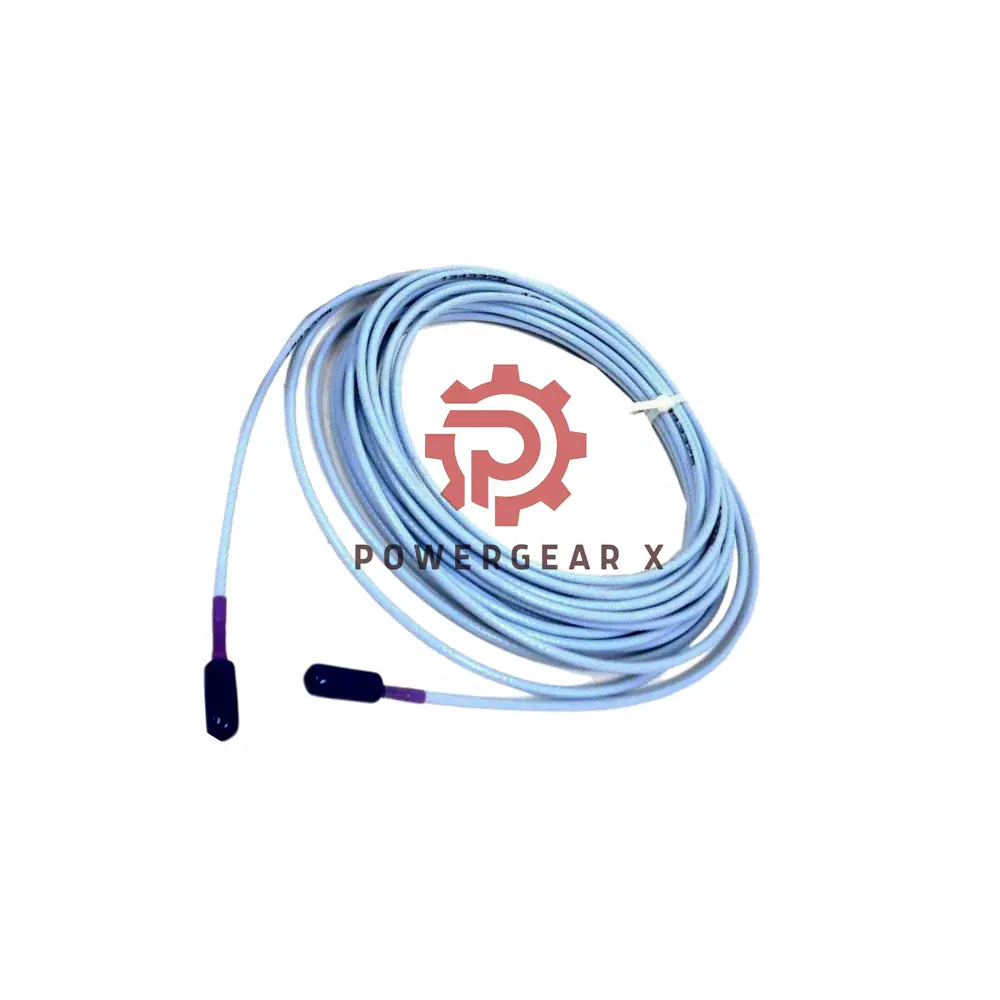

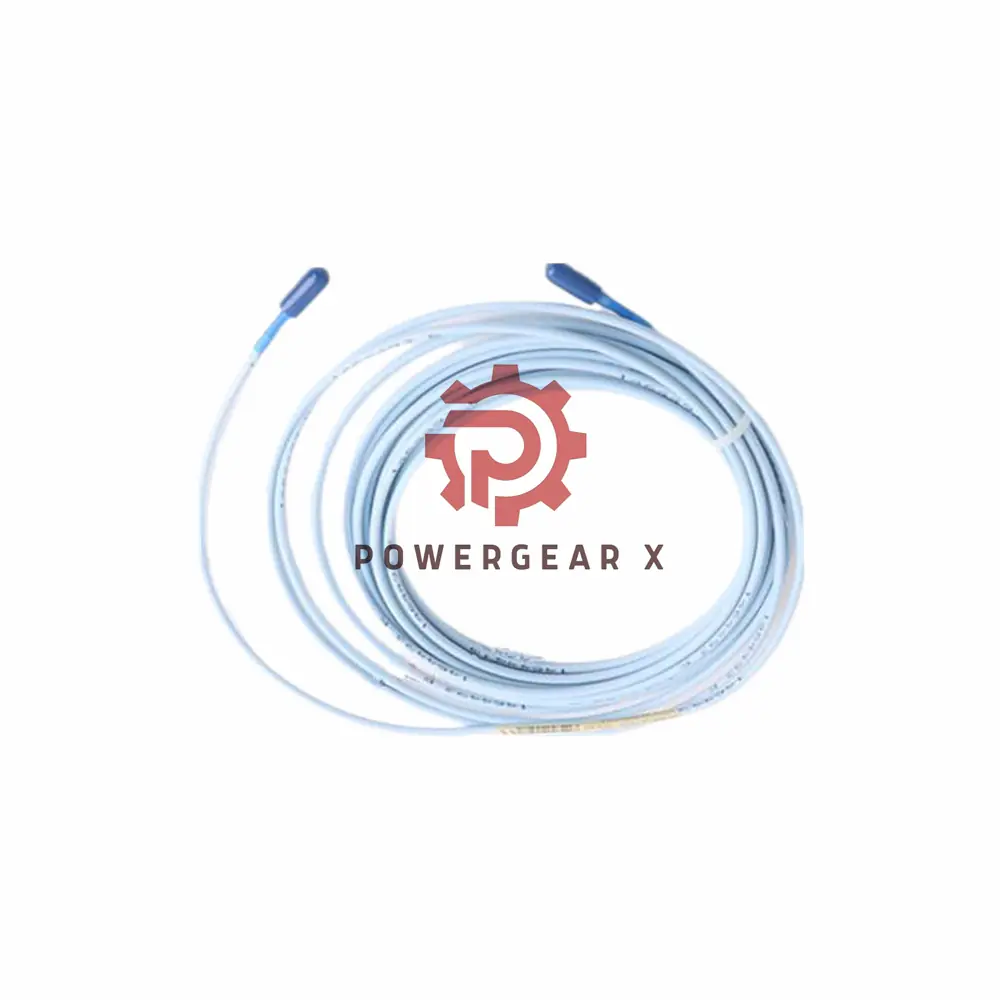

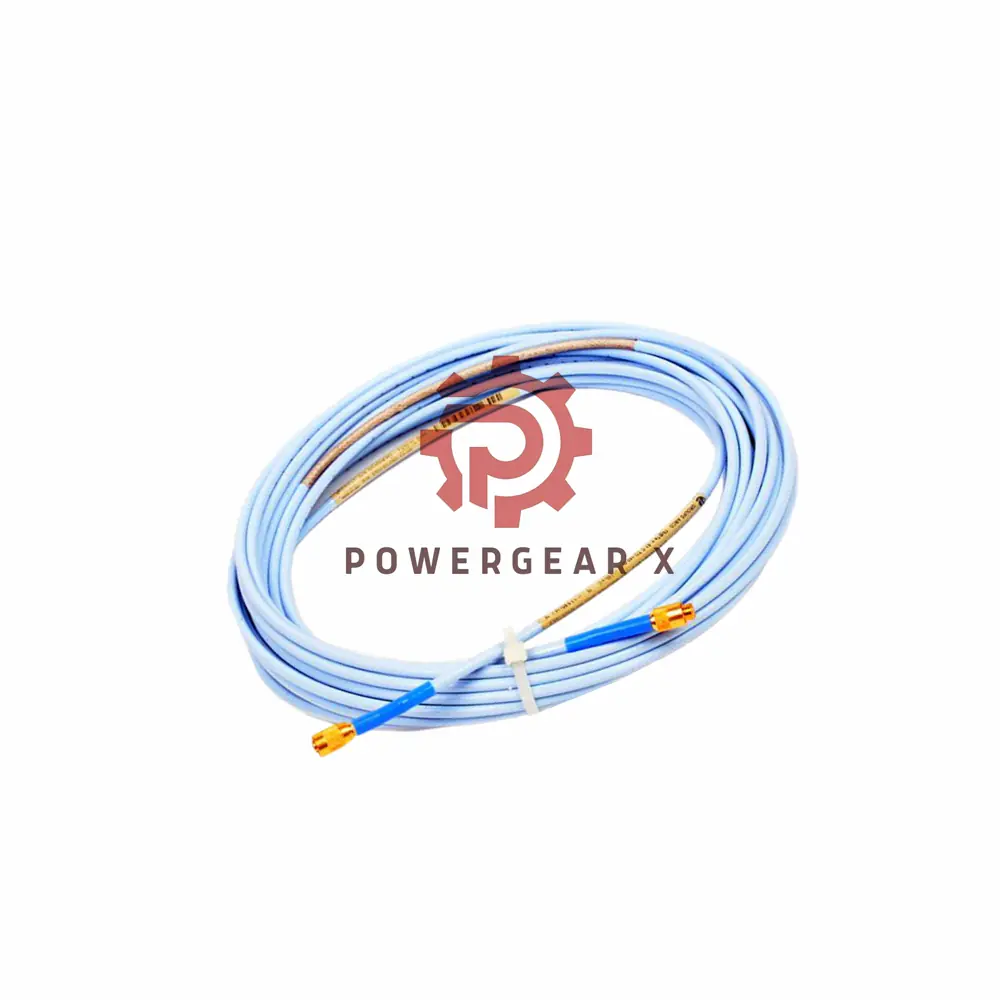

The Bently Nevada 330130-080-10-05 extension cable is a high-performance solution designed for use with 3300 XL 8 mm Proximitor sensors. Manufactured in the U.S.A., it incorporates advanced technologies to ensure reliability and efficiency in various industrial applications.

Technical Specifications

• Manufacturer: Bently Nevada
• Product Number: 330130-080-10-05
• Product Type: Extension Cable
• Cable Length:
  • Option: 080 (8.0 meters / 26.2 feet)
• Connector Protector and Cable Option:
  • Option: 10 FluidLoc cable
• Approvals:
  • Certifications: 05 CSA, ATEX, IECEx
• Weight:
  • Cable Weight: 34 g/m (0.4 oz/ft), Total Weight: 0.272 kg
• Resistance Specifications:
  • DC Resistance:
    • RCORE: 1.76 ± 0.26 Ω (from Center Conductor to Center Conductor, Length: 8.0 m)
    • RJACKET: 0.53 ± 0.11 Ω (from Outer Conductor to Outer Conductor, Length: 8.0 m)
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring:
  • Recommended: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Suggestion: Use 3 conductor shielded triad cable with tinned field wiring
  • Maximum length: 305 meters (1,000 feet) between the sensor and monitor

Performance Characteristics

• Power Supply: Requires -17.5 Vdc to -26 Vdc under non-incendive conditions, with a maximum consumption of 12 mA.
• Sensitivity: Output voltage changes by less than 2 mV per volt change in input voltage.
• Output Resistance: 50 Ω
• Linear Range:
  • 2 mm (80 mils), starting from approximately 0.25 mm (10 mils) from the target and extending to 2.3 mm (90 mils), corresponding to an approximate voltage range of -1 to -17 Vdc.

FAQ

• What is the purpose of the Bently Nevada 330130-080-10-05 extension cable?
  The Bently Nevada 330130-080-10-05 extension cable enhances measurement capabilities when used with 3300 XL 8 mm Proximitor sensors in various industrial applications.
• What approvals does this product have?
  This product holds approvals from 05 CSA, ATEX, and IECEx, ensuring safety and compliance in diverse environments.
• Can I use silicone tape for protection?
  Yes, the extension cable includes silicone tape for connection protection; however, you should avoid using it in environments with turbine oil.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
