Bently Nevada | Proximity Probe 21000-28-05-00-030-04-02

Overview

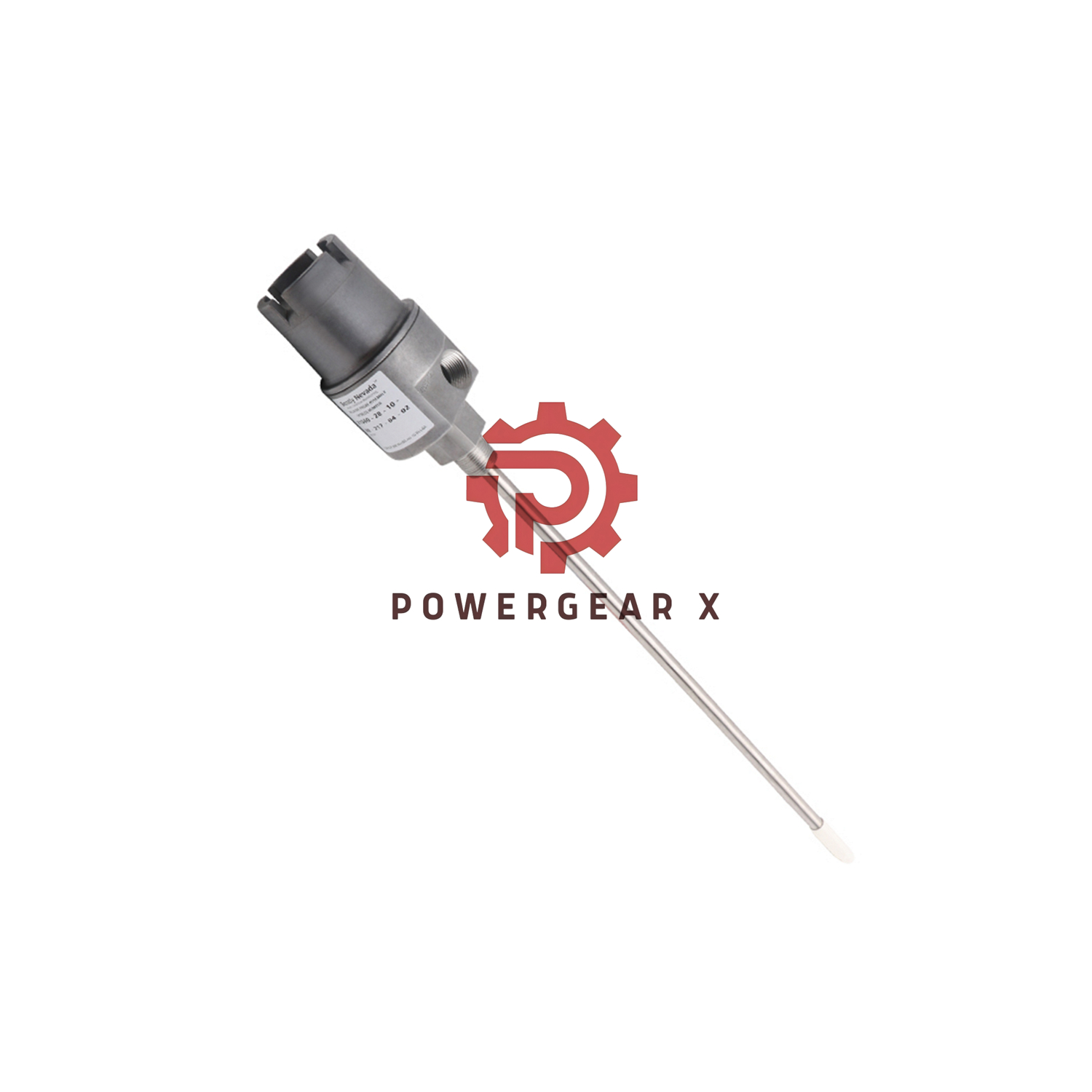

The Bently Nevada 21000-28-05-00-030-04-02 Proximity Probe Housing Assembly provides precise monitoring of machinery vibration and position. Its robust design features an aluminum body paired with a stainless steel sleeve, ensuring durability in harsh environments. Ideal for hazardous areas, this assembly is certified explosion-proof and intrinsically safe.

Technical Specifications

• Brand: Bently Nevada
• Model: 21000-28-05-00-030-04-02
• Material: Aluminum body with 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lb) typical, without fittings
• Maximum Cable Length: 0.5 m (20 in)
• Housing Certifications: CSA, explosion-proof for hazardous areas
• Approval: Compliant with American Petroleum Institute (API) 670 Standard
• Mounting Thread: 3/4-14 NPT
• Warranty: 12 months (factory warranty)

Ordering Information

The model number of the 21000 Proximity Probe Housing Assembly can be configured as follows:

• 21000 – AA-BB-CC-DDD-EE-FF
  • A (Probe with Connector): 28 3300 XL 8 mm probe, selectable hazardous area approvals
  • B (Probe Cable Length): 05 (0.5 m or 20 in)
  • C (Standoff Adapter Length): No standoff adapter = 00
  • D (Probe Penetration): –030 (3 in)
  • E (Fittings Option): 04 (One 3/4-14 NPT plug only)
  • F (Mounting Thread Option): –02 (3/4-14 NPT)

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
