Bently Nevada Proximity Transducer | 330881-28-00-110-03-02

Overview

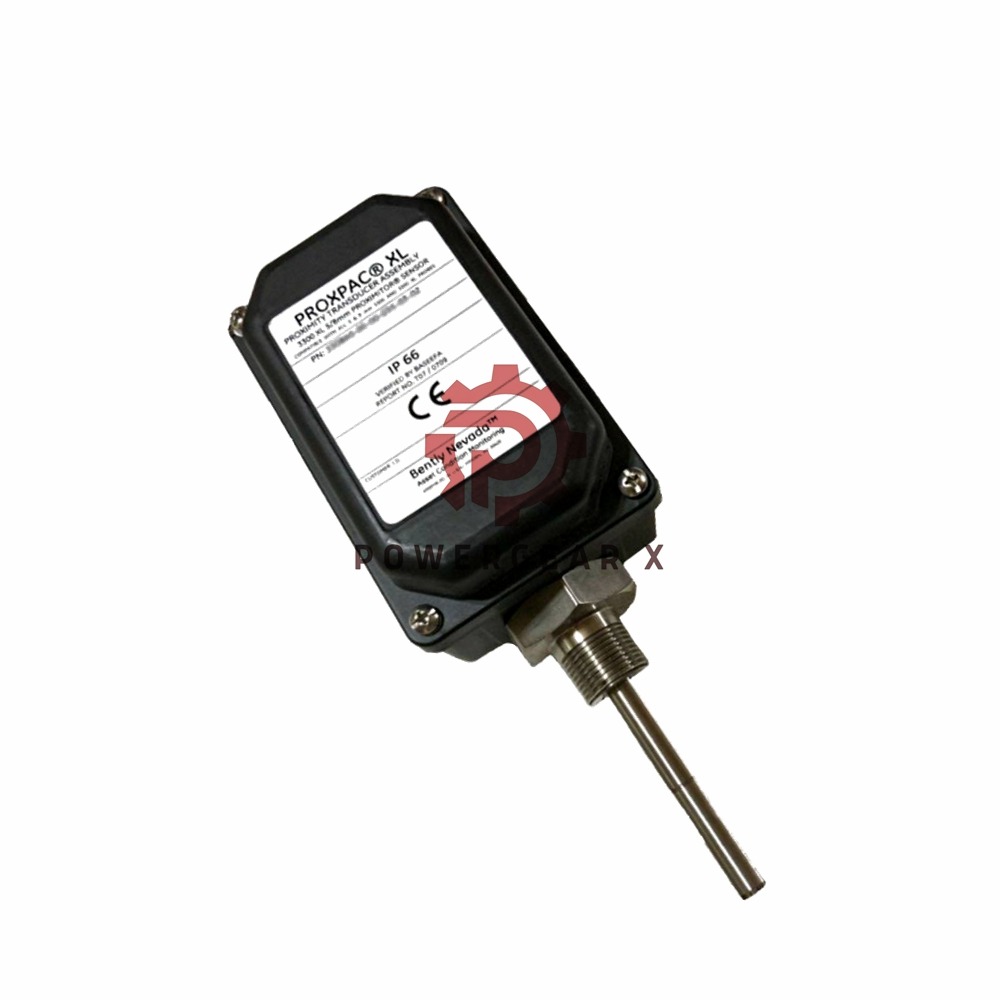

The Bently Nevada 330881-28-00-110-03-02 PROXPAC XL Proximity Transducer Assembly is a self-contained system designed to provide high-precision proximity measurements. It integrates a 3300 XL 8 mm proximity probe with a built-in 3300 XL Proximitor sensor, eliminating the need for a separate Proximitor housing. This assembly is ideal for monitoring applications in extreme environments, offering reliable protection and performance.

Features:

• Integrated Design: No need for an extension cable or a separate Proximitor housing.
• Durability: The housing is made from Polyphenylene Sulfide (PPS), a thermoplastic that enhances strength and electrostatic charge dissipation.
• Environmentally Rated: Type 4X and IP66 for protection against harsh environments.
• Sensor Integration: Direct connection of field wiring to monitors via the PROXPAC XL housing.

Technical Specifications:

• Manufacturer: Bently Nevada
• Model: 330881-28-00-110-03-02
• Probe: 3300 XL 8 mm with multiple approvals
• Probe Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 304 Stainless Steel
• Power Requirements: -17.5 Vdc to -26 Vdc (12 mA max), -23 Vdc to -26 Vdc with barriers
• Mounting Thread: 3/4-14 NPT
• Fittings: One M20 fitting, two plugs
• Operating Temperature: -51°C to +177°C (-60°F to +350°F)
• Probe Length: 1-meter cable, 75 ohm triaxial FEP insulated
• Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305 meters (1000 feet) of field wiring
• Nominal Resistance (RPROBE): 7.59 ± 0.50 ohms (1 meter)
• Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target)
• Shaft Diameter: Minimum 50.8 mm (2.0 in), recommended minimum 76.2 mm (3.0 in)

FAQs:

1. What voltage range does the PROXPAC XL require?
2. The assembly requires -17.5 Vdc to -26 Vdc without barriers or -23 Vdc to -26 Vdc with barriers.
3. What materials are used in the probe?
4. The probe is made of Polyphenylene Sulfide (PPS) for the tip and AISI 304 stainless steel for the case.
5. What is the maximum frequency response?
6. The frequency response is 0 to 10 kHz with up to 305 meters (1000 feet) of field wiring.
7. What is the minimum shaft diameter?
8. The minimum recommended shaft diameter is 50.8 mm (2.0 in), with a preferred minimum of 76.2 mm (3.0 in).

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
