Bently Nevada Proximity Transducer | 330881-28-05-080-00-02

Overview

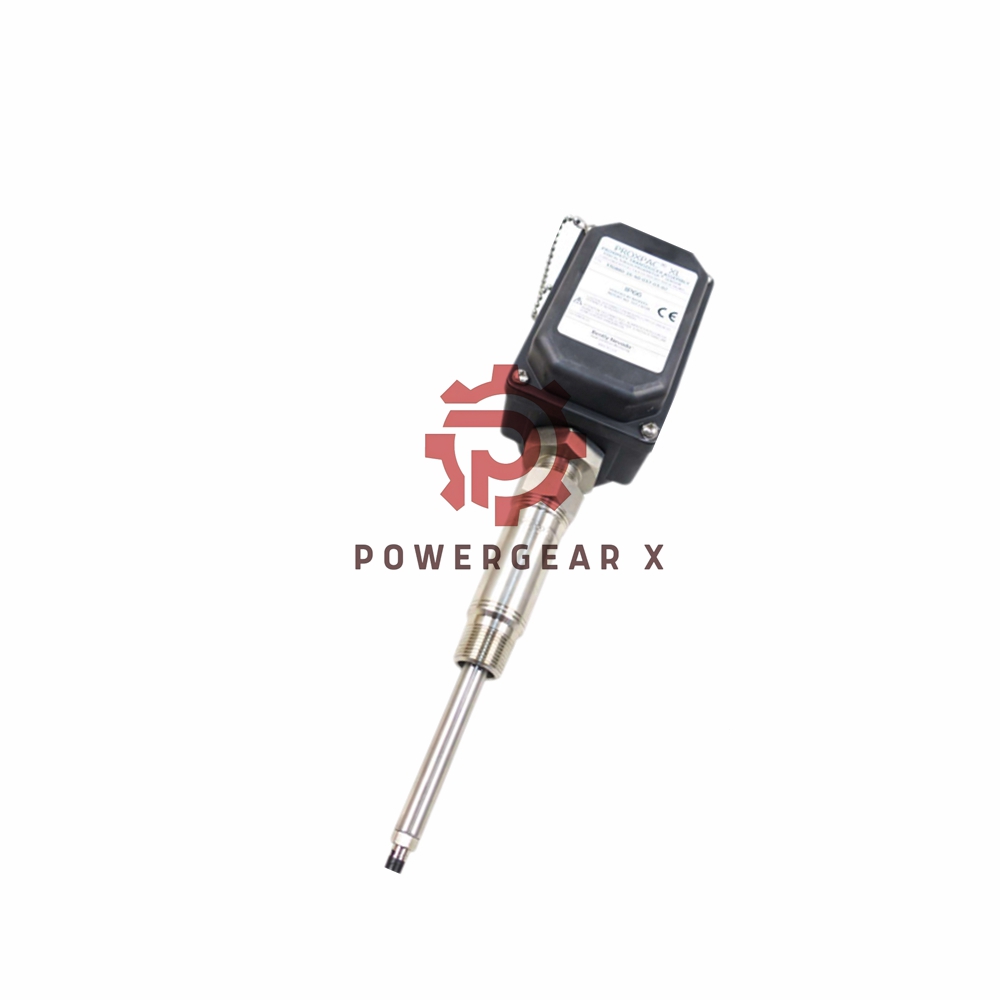

The Bently Nevada 330881-28-05-080-00-02 PROXPAC XL Proximity Transducer Assembly is a robust and self-contained proximity probe system designed to provide high reliability in severe industrial environments. This assembly integrates the 3300 XL 8 mm proximity probe and its corresponding Proximitor sensor into a single housing, eliminating the need for an extension cable and a separate Proximitor housing. The housing is constructed from advanced Polyphenylene Sulfide (PPS), offering superior strength and protection, including electrostatic charge dissipation and high durability against harsh conditions. It is rated for IP66 and Type 4X environments.

Key Features:

• Self-contained design: Combines proximity probe and Proximitor sensor into one housing.
• Material: Made of Polyphenylene Sulfide (PPS) for high strength and electrostatic protection.
• Ease of installation: Direct field wiring between monitors and assembly.
• IP66 and Type 4X rated: Ideal for harsh environments.
• Includes 3300 XL 8mm probe: With multiple approvals for versatile applications.

Technical Specifications:

• Brand: Bently Nevada
• Model: 330881-28-05-080-00-02
• Probe Type: 3300 XL 8 mm Probe
• Standoff Adapter: 50 mm (B Dimension)
• Probe Penetration: 80 mm (C Dimension)
• Fittings: None (Two plugs and two washers supplied as a kit)
• Mounting Thread: 3/4-14 NPT
• Weight: 1.44 kg

Electrical Specifications:

• Proximitor Sensor Input: 3300 XL 8 mm probe with a 1-meter cable
• Power: Requires -17.5 Vdc to -26 Vdc (maximum 12 mA consumption)
• Output Resistance: 50 Ω
• Frequency Response: 0 to 10 kHz with up to 305 meters of field wiring
• Nominal Probe DC Resistance: 7.59 ± 0.50 Ω (at 1-meter length)
• Deviation from Best Fit Line: Less than ±0.025 mm (±1 mil)

Sensitivity:

• Output sensitivity: Less than 2 mV change per volt change in input voltage

Target & Shaft Size:

• Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target)
• Minimum Shaft Diameter: 50.8 mm (2.0 in) (recommended minimum 76.2 mm / 3.0 in)

Frequently Asked Questions (FAQ):

Q: What is the advantage of the PROXPAC XL assembly over other proximity probes?
A: The PROXPAC XL is a fully self-contained system, integrating the probe and Proximitor sensor in one housing, eliminating the need for extension cables and separate sensor housings.

Q: What material is the housing made of?
A: The housing is made of Polyphenylene Sulfide (PPS), a strong thermoplastic material that offers superior electrostatic protection and durability in harsh environments.

Q: Can the PROXPAC XL assembly be used in outdoor environments?
A: Yes, the PROXPAC XL housing is rated IP66 and Type 4X, providing high protection against dust and water, making it suitable for outdoor and challenging environments.

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
