Product details
Overview

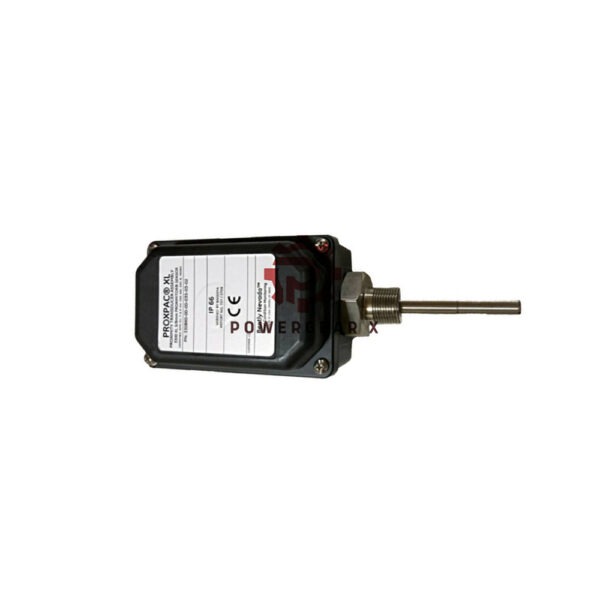

The Bently Nevada 330881-28-10-142-03-02 PROXPAC XL Proximity Transducer offers reliable performance for various industrial applications. Designed and manufactured in the U.S.A., this transducer is essential for precise monitoring in challenging environments. It is particularly suited for machinery condition monitoring and vibration analysis, making it an indispensable tool for predictive maintenance.
Technical Specifications
Product Information
- Brand: Bently Nevada
- Model: 330881-28-10-142-03-02
- Product Type: PROXPAC XL Proximity Transducer
- Weight: 1.44 kg (3.2 lbm)
Key Features
- Probe Details:
- Probe Type: 3300 XL 8 mm
- Approvals: Multiple approvals
- Standoff Adapter: 100 mm
- Probe Penetration: 142 mm
- Fittings: M20 fitting with two plugs
- Mounting Thread: 3/4-14 NPT
Mechanical Characteristics
- Housing Ratings: IP66 certified
- Housing Material: UV resistant glass-reinforced Polyphenylene Sulfide (PPS)
- Connector: Gold-plated brass ClickLoc*
- Cable: 1-meter length, 75 Ω triaxial FEP insulated
- Impact Strength: Resists impacts certified by BASEEFA
Electrical Specifications
- Power Supply: -17.5 Vdc to -26 Vdc
- Consumption: 12 mA maximum
- Sensitivity: Less than 2 mV change per volt change
- Output Resistance: 50 Ω
Environmental Conditions
- Temperature Range: -51 °C to +177 °C
- Recommended Gap Setting: 1.27 mm (50 mils)
- Minimum Target Size: 15.2 mm (0.6 in) diameter
FAQ
- Q: What is the operational temperature range of the PROXPAC XL?
A: The operational temperature range is from -51 °C to +177 °C. - Q: What is the recommended gap setting?
A: The recommended gap setting is 1.27 mm (50 mils). - Q: Can this transducer be used for condition monitoring?
A: Yes, it is designed for precise condition monitoring and vibration analysis in industrial environments.
Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
