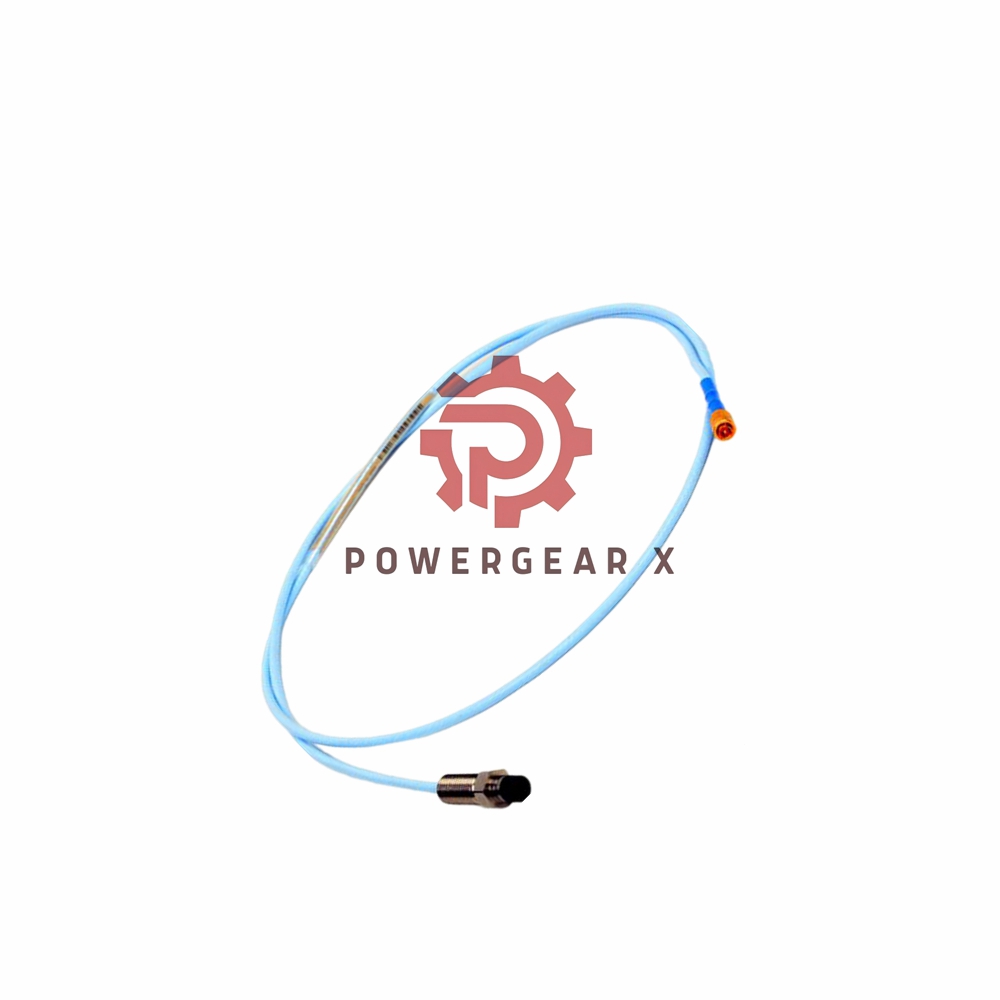

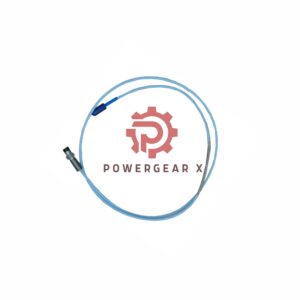

Bently Nevada Reverse Mount Probe 330105-02-12-15-02-00

Overview

The Bently Nevada 330105-02-12-15-02-00 is a premium-grade 3300 XL 8 mm Reverse Mount Probe engineered for precision and durability. It features advanced technologies like the patented TipLoc® molding method for enhanced bond strength and CableLoc® design for improved pull strength. Designed to ensure compatibility, this probe integrates seamlessly with Bently Nevada’s 3300 XL systems.

Technical Specifications

General Information

• Manufacturer: Bently Nevada
• Product Type: 3300 XL 8 mm Reverse Mount Probe
• Model Number: 330105-02-12-15-02-00

Part Number Breakdown

• 330105: Product family
• 02: Thread type (3/8-24 UNF)
• 12: Length of thread engagement
• 15: Total cable length (1.5 meters or 4.9 feet)
• 02: Connector type (Miniature ClickLoc coaxial)
• 00: Agency approval not required

Construction and Material

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Sealing Material: Viton® O-ring for differential pressure sealing
• Weight: 0.323 kg

Environmental Specifications

• Operating Temperature Range:
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Range Probe: -52°C to +218°C (-62°F to +425°F) for probe tip, up to +260°C (+500°F) for cable and connector
• Altitude: Maximum 2000 meters

Performance Characteristics

• Nominal Probe DC Resistance (RPROBE):
  • Probe Length 1.5 m: 7.73 ± 0.50 Ω
• Maximum Probe Case Torque:
  • Rated: 22.6 N•m (200 in•lbf)
  • Recommended: 7.5 N•m (66 in•lbf)

Additional Features

• TipLoc® Technology: Strengthens the bond between probe tip and body.
• CableLoc® Design: Enhances cable attachment strength to withstand 330 N (75 lbf) of pull force.
• FluidLoc® Option: Optional feature to prevent fluid leakage through the cable interior.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
