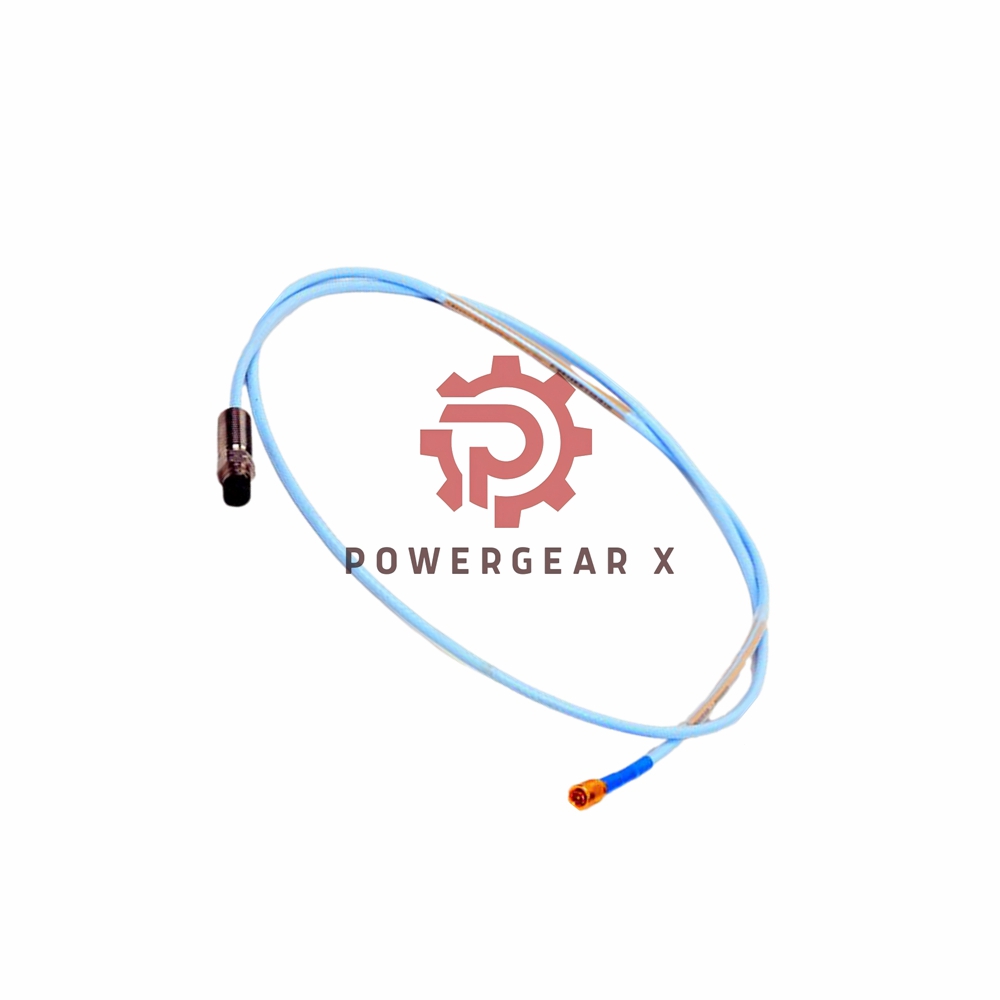

Bently Nevada | Reverse Mount Probes 330106-05-30-05-12-CN

Overview

Bently Nevada’s 330106-05-30-05-12-CN Reverse Mount Probes are engineered for precision vibration and displacement measurement in demanding industrial environments. These probes, manufactured in the U.S.A., offer reliable performance with exceptional temperature tolerance and robust mechanical design.

🔧 Technical Specifications

Key Features

• Brand: Bently Nevada
• Model: 330106-05-30-CC-DD-EE – 330106-05-30-05-12-CN
  • CC: Total length in meters (e.g., 05 = 0.5 meters).
  • DD: Connector type (e.g., 12 = Miniature ClickLoc coaxial).
  • EE: Agency approval options (e.g., CN = Country Specific).
• Thread Type: M10 x 1

Mechanical Properties

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 stainless steel (SST)
• Maximum Thread Engagement: 15 mm
• Torque Ratings:
  • Maximum: 22.6 N·m (200 in·lbf)
  • Recommended: 7.5 N·m (66 in·lbf)

Temperature Range

• Standard Probes: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range Probes:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Cable and Connector: -51°C to +260°C (-60°F to +500°F)

Electrical Characteristics

• Nominal Probe DC Resistance:
  • Center to Outer Conductor: 7.45 ± 0.50 Ω

Physical Dimensions and Weight

• Dimensions: 20.4 cm x 22.2 cm x 3.7 cm
• Weight: 0.23 kg

Pressure Specifications

• Seal Material: Viton® O-ring
• Design: Engineered to seal differential pressure between probe tip and case.

Connector Details

• Type: Miniature ClickLoc coaxial connector with FluidLoc cable option.
• Consideration: FluidLoc cable is generally unnecessary for most installations due to the protective probe sleeve.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
