Bently Nevada | Reverse Mount Probes 330106-05-30-15-12-00

Overview

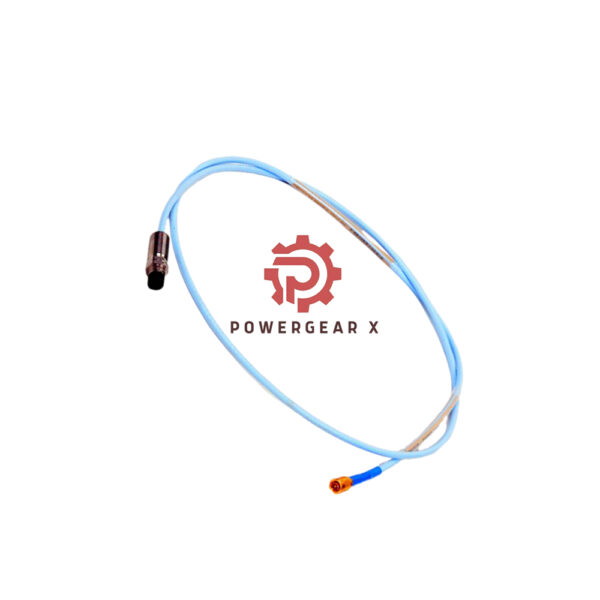

The Bently Nevada 330106-05-30-15-12-00 Reverse Mount Probe is designed for precision monitoring and vibration measurement in demanding industrial environments. Manufactured in the USA, this high-performance probe is part of the renowned 3300 XL series, providing reliable and accurate monitoring of machinery health.

Technical Specifications

• Brand: Bently Nevada
• Model: 330106-05-30-15-12-00
• Probe Type: Reverse Mount Probes
• Connector Option: Miniature ClickLoc coaxial connector, FluidLoc cable
  • The FluidLoc cable option (12) is generally unnecessary for most 330105 and 330106 installations, as the probe sleeve is already adequate. Consider the application carefully before ordering this option.
• Agency Approval Option: 00 (Not Required)

Dimensions & Weight

• Dimensions: 20.4 cm x 22.2 cm x 3.7 cm
• Weight: 0.323 kg

Ordering Information

• Model: 330106-05-30
• Thread Type: M10 x 1 threads
• Total Length: 15 (1.5 meters or 4.9 feet)

Nominal Probe DC Resistance

• Probe Length: 1.5 meters
• Resistance (RPROBE): 7.73 ± 0.50 ohms

Material Composition

• Probe Tip: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)

Torque Ratings

• Maximum Rated Probe Case Torque: 22.6 N•m (200 in•lbf)
• Recommended Probe Case Torque: 7.5 N•m (66 in•lbf)

Temperature Range

• Standard Operating & Storage Temperature: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range Probe:
  • Probe Tip: -52°C to +218°C (-62°F to +425°F)
  • Probe Cable & Connector: -51°C to +260°C (-60°F to +500°F)
  • Exposing the probe to temperatures below –34°C (-30°F) may result in premature failure of the pressure seal.

Pressure Seal & Humidity

• Probe Pressure Seal: The 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The sealing material used is Viton® O-ring. Please note that probes are not pressure-tested before shipment. Custom pressure seal tests are available upon request.
• Relative Humidity: Less than 3% change in Average Scale Factor (ASF) when tested under 93% humidity for up to 56 days, per IEC standard 68-2-3.

FAQ

• Q: What is the benefit of the FluidLoc cable option?
  A: The FluidLoc cable is generally not required for most installations but may be useful in specific applications where additional sealing or protection is needed. It’s advisable to consult with technical experts before ordering.
• Q: What is the pressure sealing material used in the probe?
  A: The probe uses Viton® O-rings to seal the differential pressure between the probe tip and case.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
