Overview

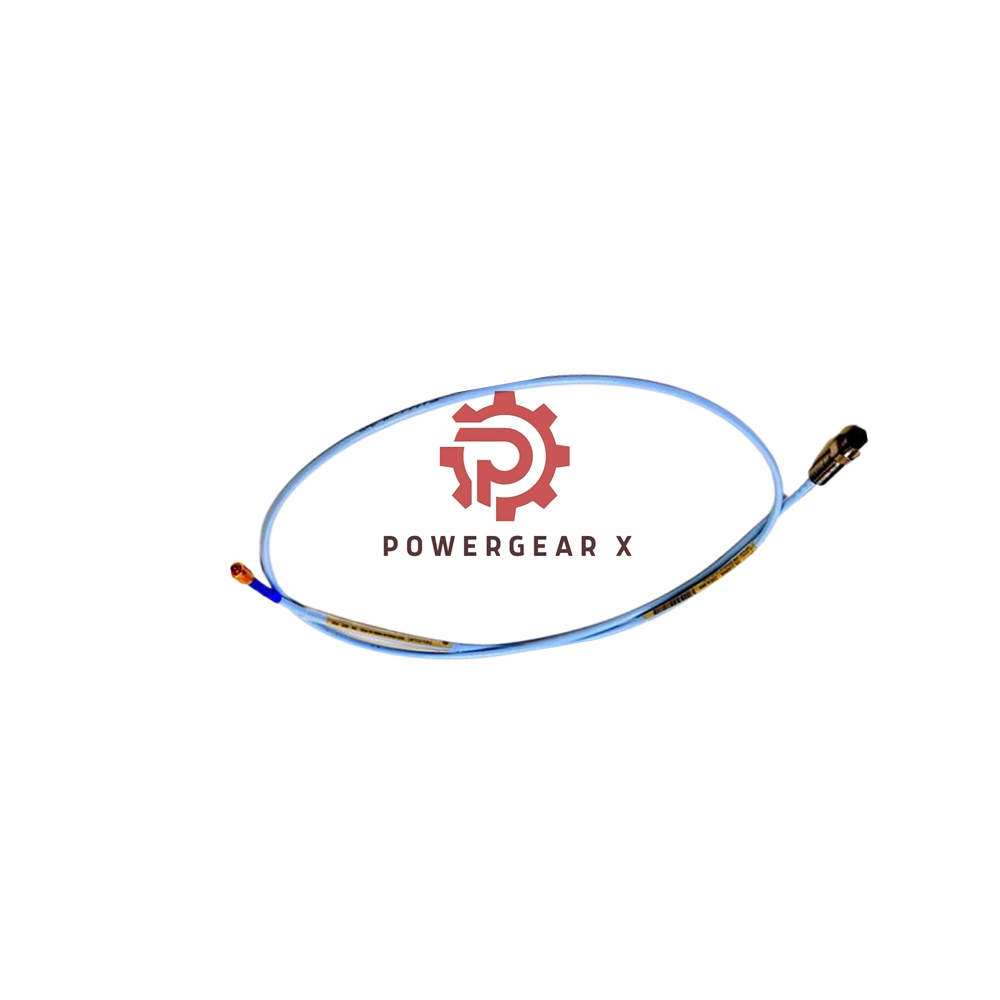

The Bently Nevada 330106-05-30-50-12-CN Reverse Mount Probe is an advanced vibration monitoring device manufactured in the USA. This probe is specifically designed for integration with 5-meter Proximitor sensors, providing high precision and reliability in industrial applications.
Technical Specification
- Brand: Bently Nevada
- Model: 330106-05-30-50-12-CN
- Suffix Meaning:
- 330106-05-30: M10 x 1 threads
- 50: Total length option (5.0 meters)
- 12: Miniature ClickLoc coaxial connector
- CN: Country-specific agency approval
- Dimension: 20.4 cm x 22.2 cm x 3.7 cm
- Weight: 0.323 kg
- Nominal DC Resistance: 8.73 ± 0.50 (from center conductor to outer conductor)
- Material Composition:
- Tip: Polyphenylene sulfide (PPS)
- Case: AISI 303 or 304 stainless steel (SST)
- Torque Ratings:
- Maximum: 22.6 N•m (200 in•lbf)
- Recommended: 7.5 N•m (66 in•lbf)
- Thread Engagement: Maximum length of engagement is 15 mm with M10 x 1 threads
- Temperature Range:
- Standard Operating Range: -52°C to +177°C (-62°F to +350°F)
- Extended Temperature Range:
- Probe Tip: -52°C to +218°C (-62°F to +425°F)
- Probe Cable and Connector: -51°C to +260°C (-60°F to +500°F)
- Pressure Seal: Probes do not undergo pressure testing prior to shipment and are equipped with a Viton® O-ring for sealing differential pressure.
Application Scenarios
This probe is ideal for various industrial settings, including rotating machinery and power generation facilities. Its design allows for precise vibration measurement, ensuring operational safety and efficiency.
Frequently Asked Questions
- Q: Is the FluidLoc cable option necessary?
A: Typically, the FluidLoc cable option is not required for most installations due to the probe sleeve’s presence. - Q: What is the maximum operating temperature of this probe?
A: The standard temperature range for operation is -52°C to +177°C.
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
