Overview

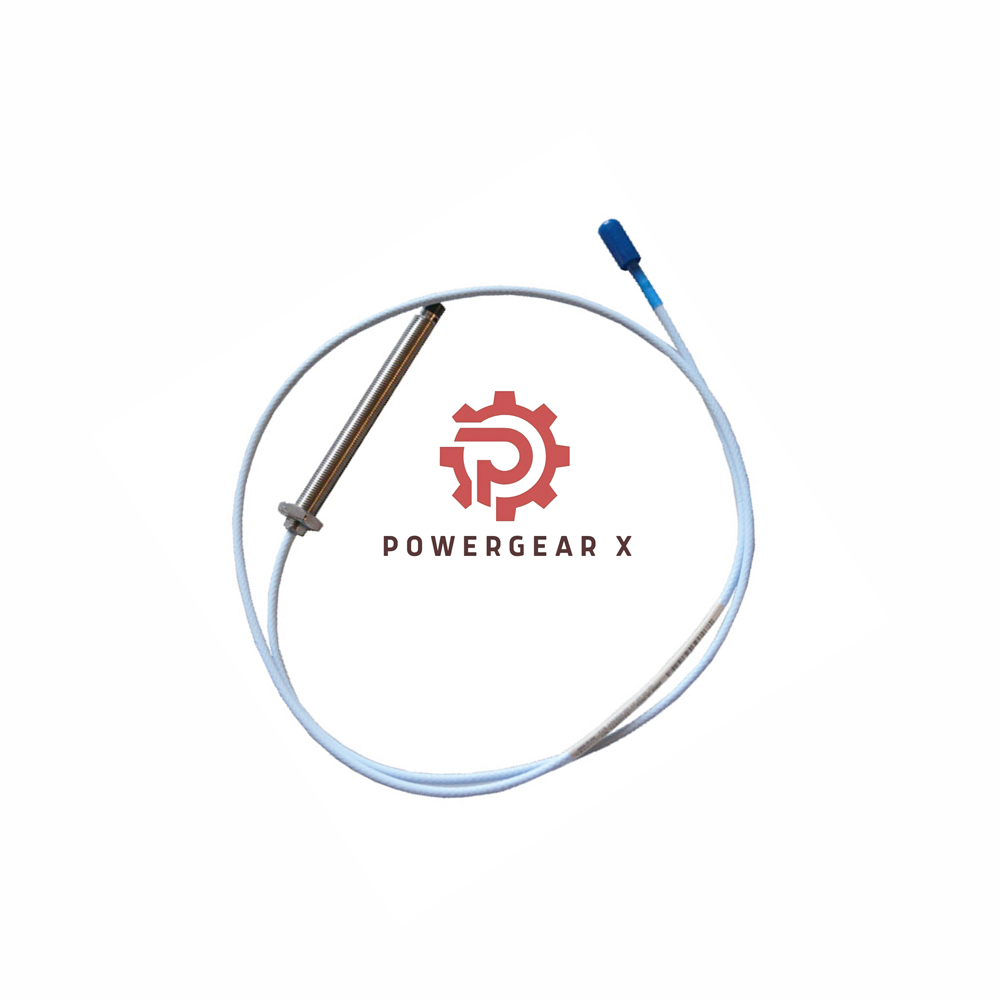

The Bently Nevada 3300 NSv Reverse Mount Probe, designated as Product No. 330907-05-30-05-12-CN, is a high-performance sensing device crafted in the U.S.A. This probe is engineered to meet rigorous demands in various process applications, including gas and oil compressors. Notably, it features improved chemical resistance compared to the prior 3300 RAM probe, making it suitable for a wider range of environments. Furthermore, it exhibits superior side-view characteristics over the previous 3000-series 190 probe when gapping at equivalent distances from the target.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv Reverse Mount Probe
• Product No.: 330907-05-30-05-12-CN
• Threads:
  • M10X1 (refer to ordering information)
• Length Options:
  • 0.5 meters (20 inches)
• Connector Options:
  • Miniature coaxial ClickLoc connector with FluidLoc cable
• Agency Approval:
  • CN (Chinese Country Specific)
• Mechanical Specifications:
  • Probe Tip Material: Polyphenylene sulfide (PPS)
  • Case Material: AISI 304 stainless steel (SST)
• DC Resistance:
  • 4.0 ± 0.5 ohms for 0.5 m length
• Operating Temperature Range:
  • -52°C to +177°C (-62°F to +351°F)
• Storage Temperature Range:
  • -52°C to +177°C (-62°F to +351°F)

Frequently Asked Questions (FAQ)

• Q: What is the maximum length of the 3300 NSv Probe?
  A: The probe is available in a length of 0.5 meters (20 inches), ensuring flexibility for various applications.
• Q: What are the recommended gap settings for the probe?
  A: The recommended gap setting is 1.0 mm (40 mils) for optimal performance.
• Q: Can the 3300 NSv Probe operate in extreme temperatures?
  A: Yes, its operational range is from -52°C to +177°C, making it suitable for extreme environments.

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
