Bently Nevada | Standard Extension Cable 330130-080-13-00

Overview

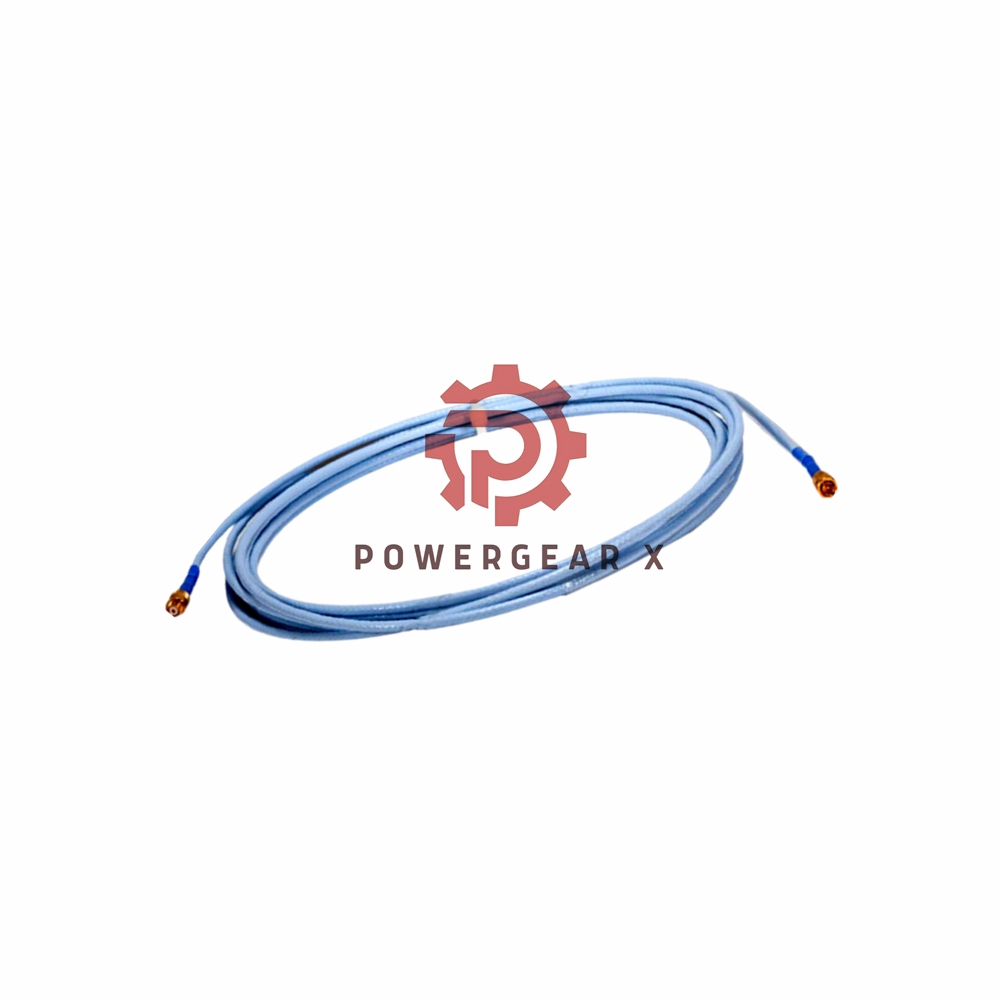

The Bently Nevada 3300 XL Extension Cable, model 330130-080-13-00, is a high-quality accessory designed for the 3300 XL 8 mm Proximitor Sensor system. With robust features such as the patented TipLoc® molding method and CableLoc® design, it ensures superior durability and performance in industrial monitoring systems. This model incorporates the FluidLoc® cable option, which effectively prevents leakage of fluids through the cable, enhancing reliability for demanding environments.

Technical Specifications

Brand & Model:

• Manufacturer: Bently Nevada
• Model Number: 330130-080-13-00

Suffix Meaning:

• 080: 8.0 meters (26.2 feet) cable length.
• 13: Armored FluidLoc® cable with connector protectors.
• 00: No agency approval required.

Cable Material & Construction:

• Material: 75 triaxial, FEP-insulated.
• Weight: 0.89 kg.

Electrical Properties:

• Capacitance: 69.9 pF/m (21.3 pF/ft).
• Power Supply: Requires -17.5 Vdc to -26 Vdc at a maximum of 12 mA.
• Output Resistance: 50 Ω.
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

Linear Range:

• Range: 2 mm (80 mils), starting approximately at 0.25 mm (10 mils).
• Voltage Range: -1 to -17 Vdc.

Field Wiring:

• Cable Type: 3-conductor shielded triad cable.
• Wire Gauge: 0.2 to 1.5 mm² (16 to 24 AWG).
• Maximum Length: 305 meters (1,000 feet).

Environmental Considerations:

• Optimal operating temperature: +18˚C to +27˚C (+64˚F to +80˚F).
• Altitude Limit: 2000 meters.

Frequently Asked Questions (FAQ)

• Q1: What is the significance of the FluidLoc® cable option?
• The FluidLoc® option prevents fluid leakage through the cable’s interior, making it suitable for applications with exposure to oil or other liquids.
• Q2: Can this cable be used in high-altitude locations?
• Yes, the cable performs optimally up to an altitude of 2000 meters.
• Q3: What is the recommended wiring for the 3300 XL system?
• A 3-conductor shielded triad cable with a wire gauge between 16 and 24 AWG is recommended.
• Q4: Is agency approval available for this model?
• This specific configuration (00 suffix) does not include agency approval.
• Q5: How long is the cable in this model?
• The cable length is 8.0 meters (26.2 feet), as indicated by the 080 suffix.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
