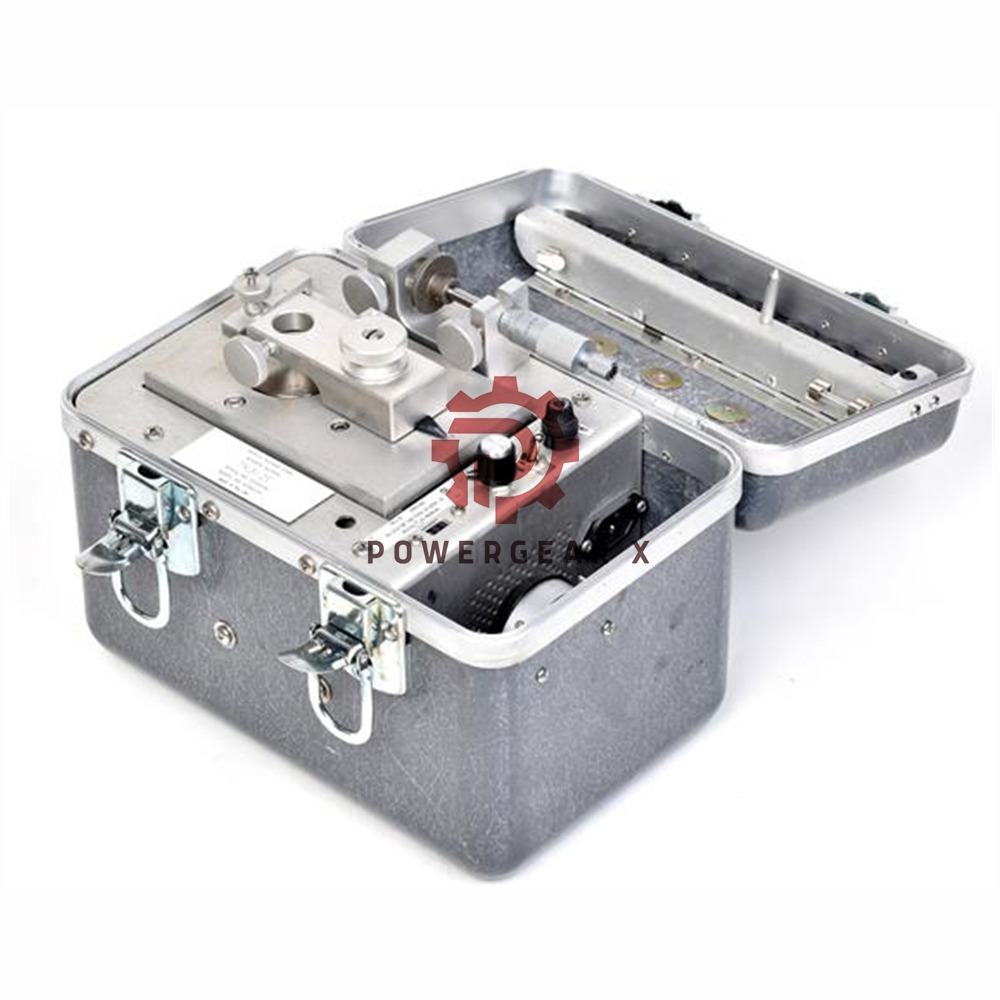

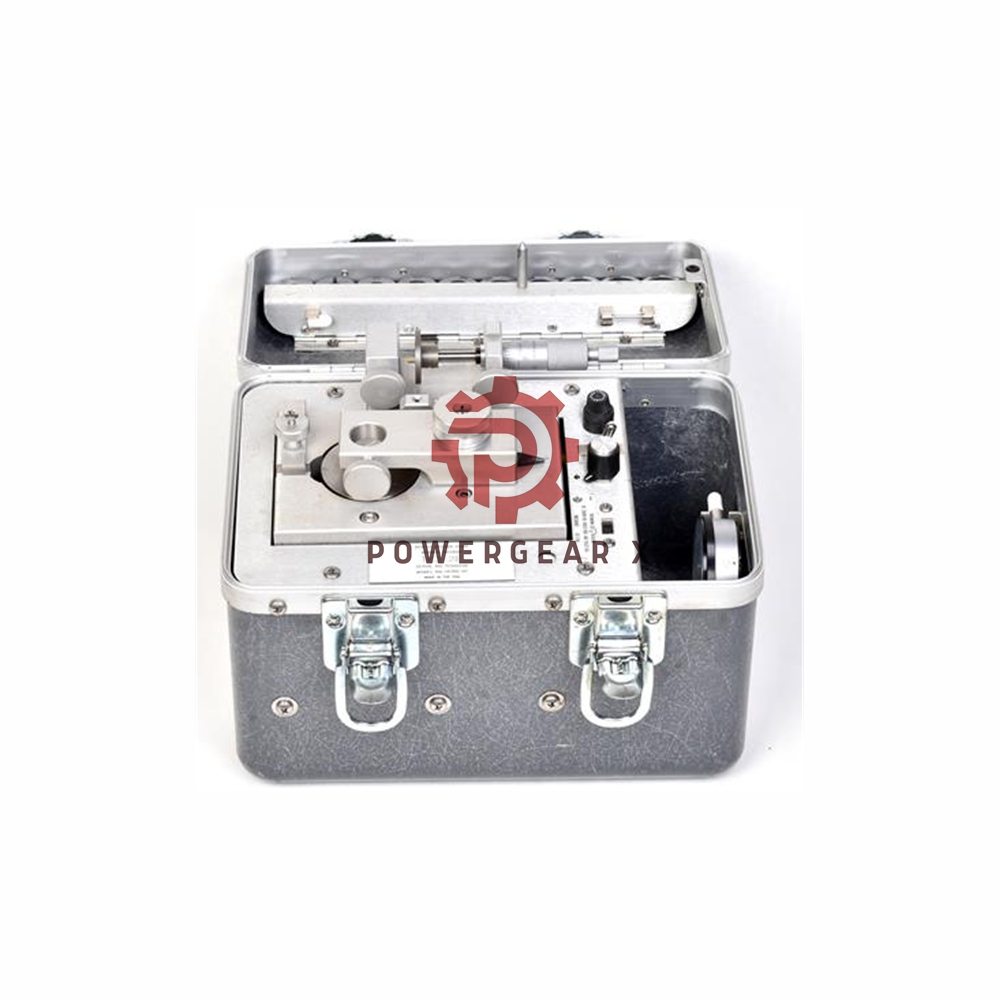

Bently Nevada TK3-2E Calibration Instrument Overview

The Bently Nevada TK3-2E Calibration Instrument is a versatile tool designed for vibration analysis and calibration applications. Engineered to support accurate testing, it is equipped with a robust wobulator and spindle micrometer, ideal for measuring amplitude and speed in various industrial environments.

Technical Specifications

• Brand: Bently Nevada
• Model: TK3-2E
• Power Requirements:
  • Electric: 95-125 Vac, 50/60 Hz, 1A minimum or 190-250 Vac, 50/60 Hz, 1A minimum
  • Air: 90 psi (6.2 bar) maximum
  • Power can be disconnected by unplugging the power cable from the TK3 unit.
• Dimensions:
  • Height: 195 mm (7.68 inches)
  • Width: 299 mm (11.8 inches)
  • Depth: 248 mm (9.76 inches)
  • Weight: 5.22 kg (11.5 lb)
• Operational Conditions:
  • Indoor use only
  • Maximum altitude: 2000 m
  • Operational Temperature: 0 °C to 50 °C (32 °F to 122 °F), with a maximum continuous operating temperature of 40°C
  • Storage Temperature: -18 °C to 65 °C (0 °F to 150 °F)
  • Humidity: 95% non-condensing
• Environmental Protection: Meets IP54 standard for dust and water exposure (closed).

Frequently Asked Questions (FAQ)

1. What is the power supply requirement for the Bently Nevada TK3 Calibration Instrument?
The TK3-2E requires either 95-125 Vac or 190-250 Vac power supply, with 50/60 Hz frequency and 1A minimum current.

2. What is the wobulator’s vibration amplitude range?
The wobulator provides a vibration amplitude range from 50 μm to 254 μm (2 to 10 mils) peak-to-peak.

3. Can the TK3 Calibration Instrument be used in outdoor environments?
No, the TK3-2E is designed for indoor use only and should not be exposed to outdoor conditions.

4. What are the storage temperature limits for the TK3 Calibration Instrument?
The instrument can be stored between -18 °C and 65 °C (0 °F to 150 °F).

5. Is the Bently Nevada TK3-2E suitable for long-term industrial use?
Yes, with its durable construction and IP54 rating for dust and water protection, the TK3-2E is designed for long-term industrial use in harsh environments.
