Overview

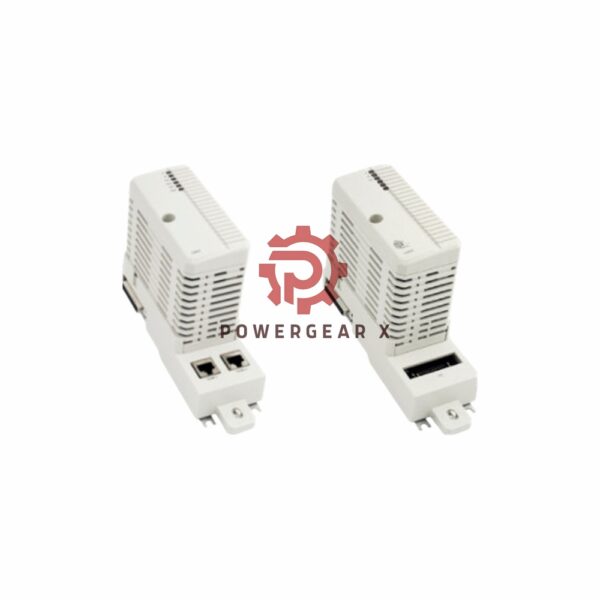

The CI867 (3BSE043660R1) is an advanced Modbus TCP interface module by ABB, designed for seamless communication between the AC 800M controller and external Ethernet devices. It integrates the MODBUS RTU protocol with standard Ethernet and TCP, making it ideal for reliable and flexible industrial networking solutions.
Features & Benefits:
- Redundant Module: Supports hot swap and redundancy to ensure system reliability.
- Dual Ethernet Channels: Channel 1 offers 100Mbps full-duplex, and Channel 2 provides 10Mbps half-duplex.
- Master & Slave Functionality: Supports both master and slave roles for diverse applications.
- Wide Compatibility: Supports up to 70 slave and 8 master units connected via the CEX bus.
- Easy Installation: Equipped with an RJ-45 female connector for straightforward integration into existing systems.
- Industrial-Grade Protection: IP20 protection class, ideal for industrial environments with CE and UL certifications.
Technical Specifications:
- Brand & Model: ABB, CI867, Part Number: 3BSE043660R1
- Protocol: Modbus TCP
- Channels: 2 (Channel 1: Full duplex, 100Mbps; Channel 2: Half duplex, 10Mbps)
- Units Supported on CEX-Bus: Up to 12 units
- Consumption: 160mA typical at 24V DC
- Connector: RJ-45, 8-pin
- Module Redundancy: Yes (hot swap supported)
- Operating Temperature: Up to 55°C
- Protection Class: IP20 (EN 60529, IEC 529)
- Compliance: CE, UL, RoHS, WEEE, Marine Certifications (ABS, BV, DNV-GL, LR)
- Dimensions: Width 59mm, Height 185mm, Depth 127.5mm, Weight 700g
FAQ:
- Q: Can the CI867 be used with other controllers besides ABB’s AC 800M?
- A: The CI867 is specifically designed for use with ABB’s AC 800M controllers but may also be compatible with other devices supporting Modbus TCP protocol.
- Q: What is the maximum number of devices that can be connected to the CI867?
- A: Up to 70 slave units and 8 master units can be connected via both channels.
For more detailed information, please check official datasheet: Product-CI867
