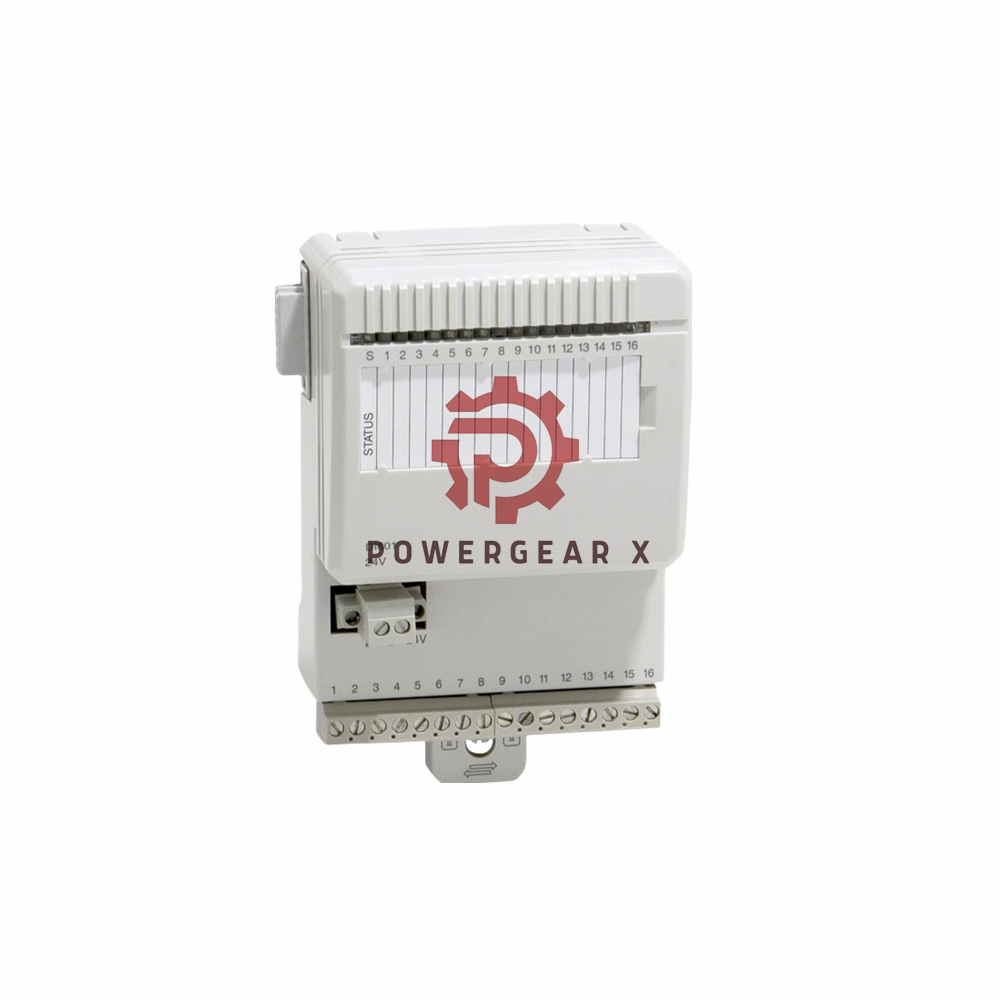

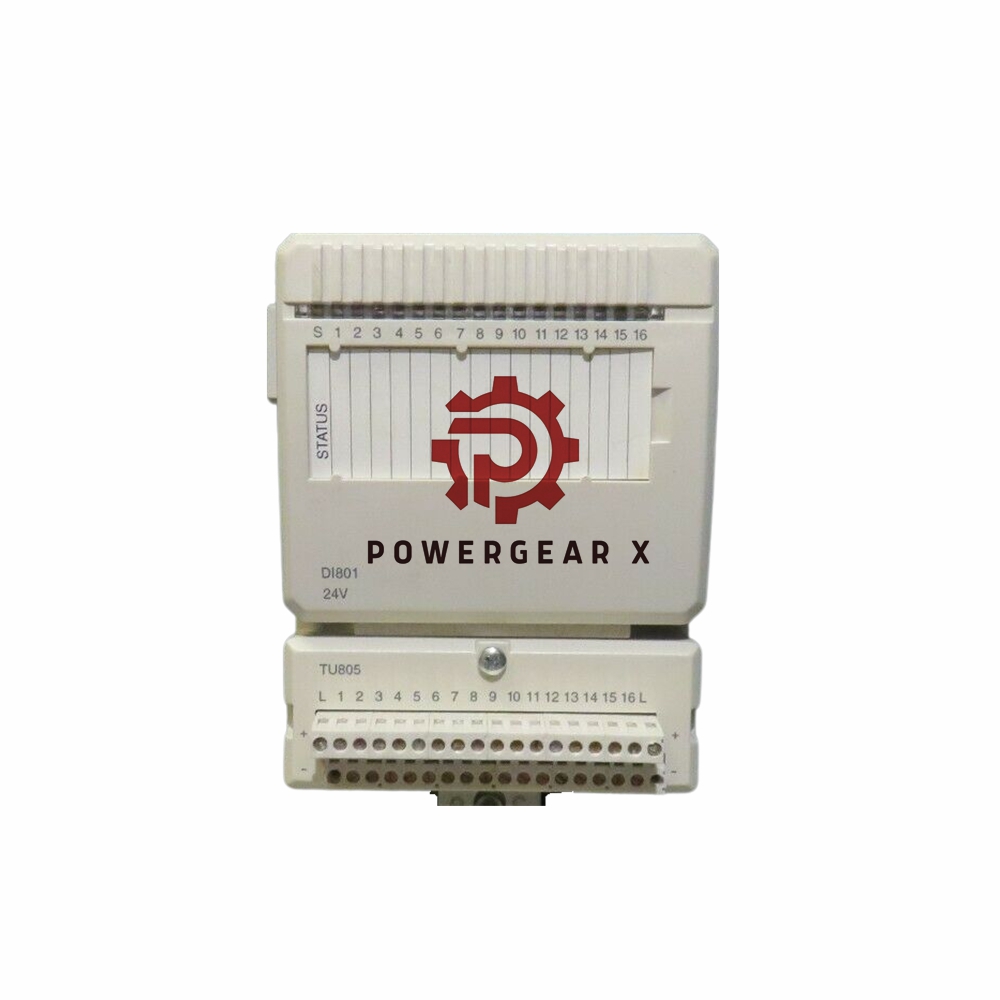

DI801 3BSE020508R1 | ABB | Digital Input 16 Channel

Overview

The ABB DI801 module offers 16 channels of 24V DC digital input with current sinking. It is ideal for systems requiring process monitoring, voltage supervision, and EMC protection. The module is built with optical isolation and features status indicators for easy diagnostics. It’s a versatile solution for automation and control in industries ranging from manufacturing to energy, oil & gas, and more.

Technical Specifications

• Brand: ABB
• Model: DI801
• Signal Type: Current sinking
• Number of Channels: 16
• Input Voltage Range:
  • “0”: -30 to +5 V
  • “1”: 15 to 30 V
• Input Impedance: 3.5 kΩ
• Filter Times: Selectable 2, 4, 8, or 16 ms
• Maximum Field Cable Length: 600 meters (656 yards)
• Power Consumption:
  • Typ Power Dissipation: 2.2 W
  • Current Consumption (5V Modulebus): 70 mA
  • Current Consumption (24V Modulebus): 0
• Dimensions:
  • Width: 86.1 mm (3.4”)
  • Depth: 58.5 mm (2.3”)
  • Height: 110 mm (4.33”)
  • Weight: 0.24 kg (0.53 lbs.)
• Wiring:
  • Supported wire sizes: Solid (0.05-2.5 mm², 30-12 AWG), Stranded (0.05-1.5 mm², 30-12 AWG)
  • Recommended Torque: 0.5-0.6 Nm
  • Stripping Length: 6-7.5 mm (0.24-0.30 in)

Environmental & Certification Details

• Temperature Range:
  • Operating: 0 to +55 °C (+32 to +131 °F)
  • Storage: -40 to +70 °C (-40 to +158 °F)
• Relative Humidity: 5 to 95 %, non-condensing
• Protection Class: IP20 (IEC 60529)
• Electrical Safety Standards: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
• Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
• Marine Certification: ABS, BV, DNV, LR
• Corrosion Protection: ISA-S71.04: G3
• RoHS & WEEE Compliance: Yes (DIRECTIVE/2011/65/EN, DIRECTIVE/2012/19/EU)

FAQ

Q: What is the purpose of voltage supervision on Channel 16?
A: Channel 16 offers voltage supervision to ensure proper functioning of the input group, providing an early warning of any voltage issues.

Q: Can the DI801 be used in hazardous locations?
A: Yes, the module is certified for use in hazardous locations with approvals like ATEX Zone 2 and C1 Div 2 cULus.

Q: How do I mount the DI801 module?
A: The DI801 module is designed for vertical mounting, with a maximum ambient temperature of 55°C (131°F) when mounted horizontally and 40°C (104°F) when mounted vertically.

For more detailed information, please check official datasheet: Product-DI801
