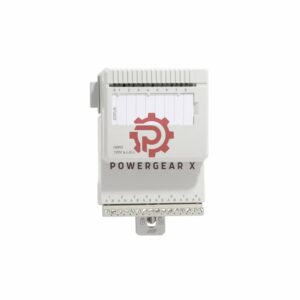

DI814 3BUR001454R1 S800 I/O Input Module 24V Current 16 Ch

Overview

The ABB S800 Digital Input Module (DI814 3BUR001454R1) is a robust and high-performing module designed for industrial automation systems. Featuring 16 digital input channels, it supports current sourcing signals at 24 V DC. The inputs are grouped into two isolated groups, each with integrated voltage supervision for enhanced safety and diagnostics. The module is compatible with several MTUs like TU810 and TU830, providing flexible installation options.

Technical Specifications

General Information

• Brand/Model: ABB S800, DI814 3BUR001454R1
• Type: Digital Input Module
• Channels: 16 channels, current sourcing signals
• Signal Specification: 24 V DC

Electrical Specifications

• Input Voltage Range (“0”): -30 to 5 V
• Input Voltage Range (“1”): 15 to 30 V
• Input Impedance: 3.5 kΩ
• Dielectric Test Voltage: 500 V AC

Diagnostics and Supervision

• LED Indicators: Fault, Warning, and Input State for each channel
• Voltage Supervision: One per group with channel error signaling
• Diagnostics Output: Errors accessible via ModuleBus

Physical Dimensions

• Width: 45 mm
• Height: 119 mm
• Depth: 111 mm (including connector)
• Weight: 0.15 kg

Environmental and Certifications

• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 70°C
• Certifications: CE, ATEX Zone 2, DNV, ABS, UL 61010-1
• Protection Class: IP20

Mechanical and Compliance

• Pollution Degree: 2 (IEC 60664-1)
• RoHS/WEEE Compliance: DIRECTIVE/2011/65/EU, DIRECTIVE/2012/19/EU

FAQ

Q: What input signals does the module support?
A: It supports 24 V DC current sourcing signals.

Q: Is the module compatible with redundant setups?
A: No, this module does not support redundancy.

Q: What MTUs are compatible with this module?
A: Compatible MTUs include TU810, TU812, TU814, TU830, and TU838.

Q: Can this module operate in hazardous environments?
A: Yes, it is certified for ATEX Zone 2 and C1 Div 2 hazardous locations.

Q: What is the maximum field cable length supported?
A: The maximum field cable length is 600 meters (656 yards).

For more detailed information, please check official datasheet: Product-DI802
