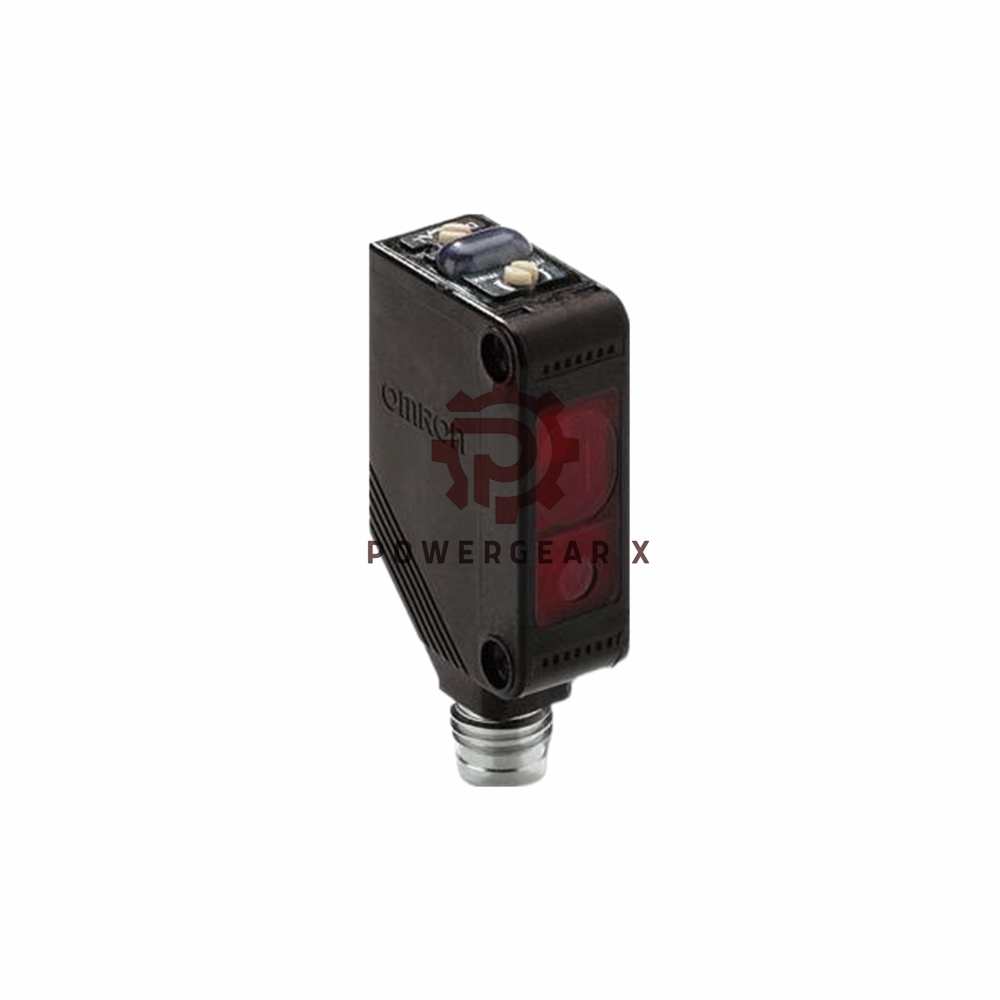

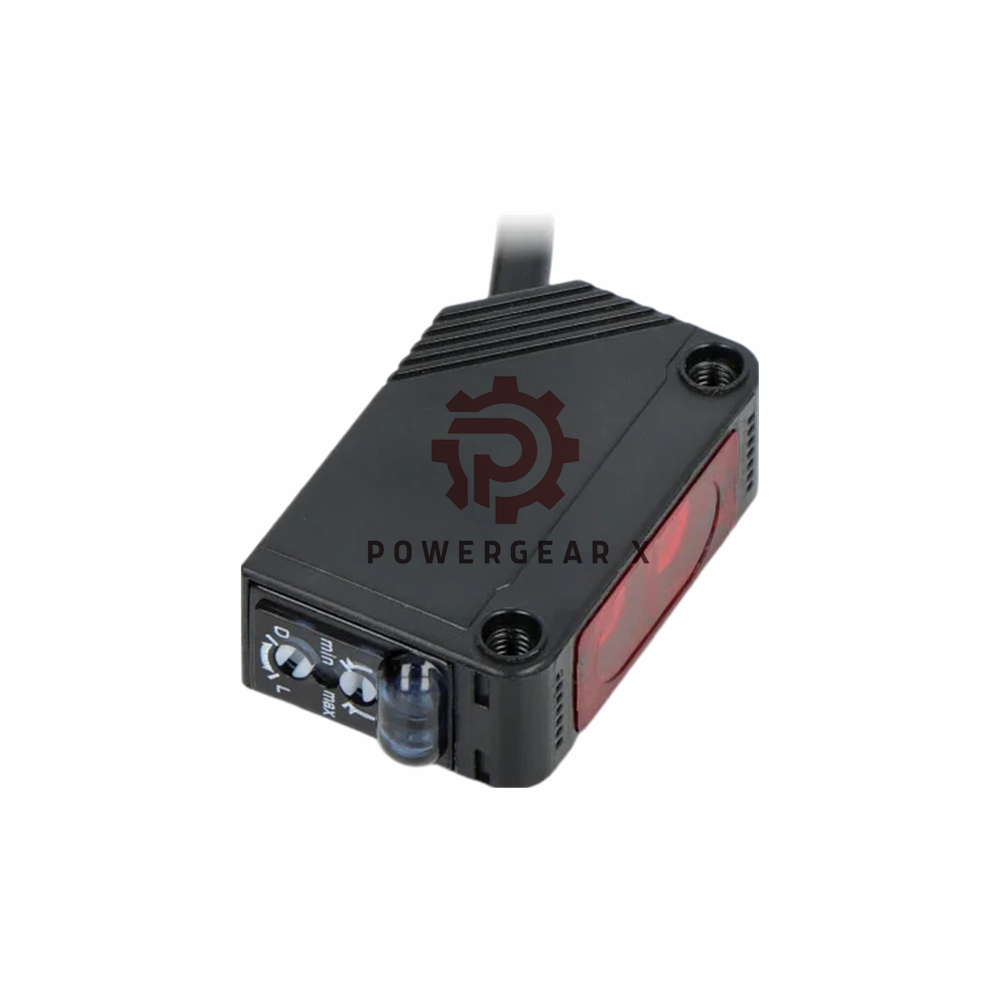

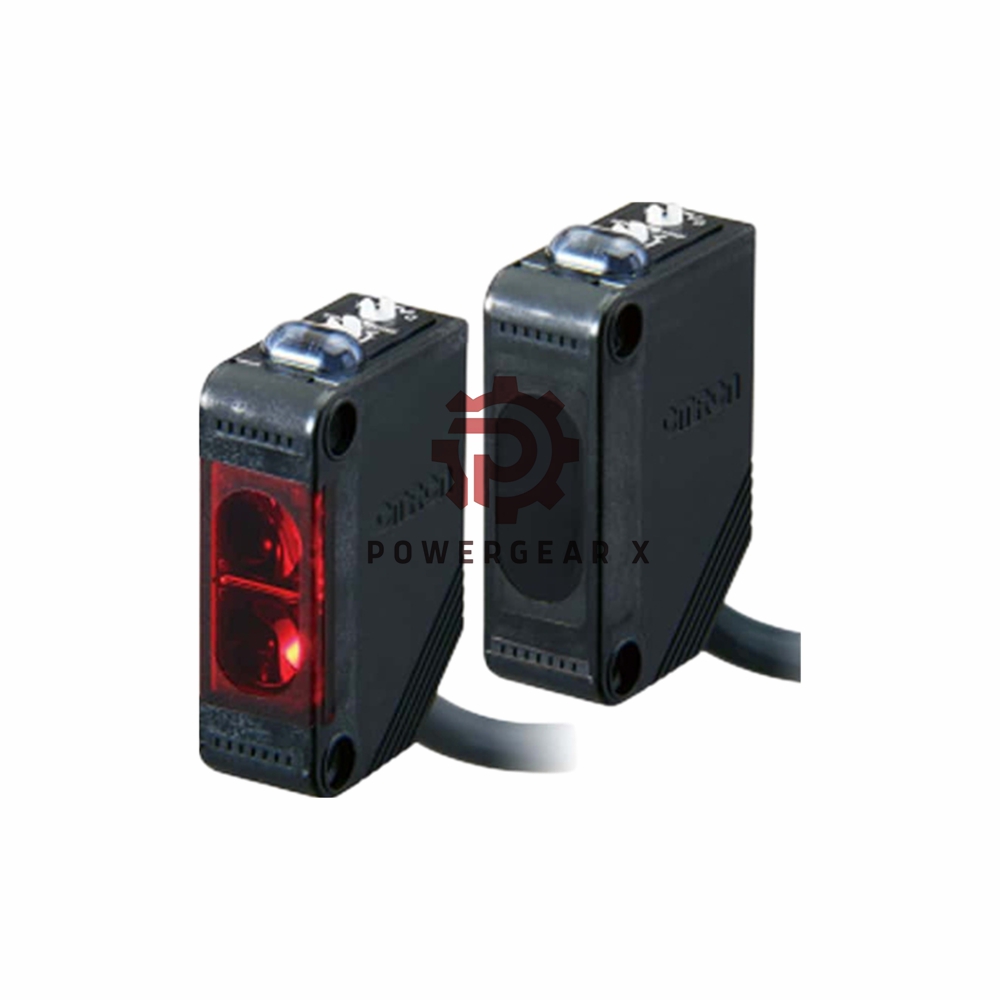

E3Z-R86 Omron Automation Photoelectric Sensor

Technical Specifications:

• Model: Omron Automation
• Model Number: E3Z-R86
• Power Supply Voltage: DC12 to 24V ±10%, Ripple (p-p) ≤ 10%
• Current Consumption: ≤ 30mA
• Response Time:
  • Operating and Recovery: ≤ 1ms
• Sensitivity Adjustment: Single-turn potentiometer
• Surrounding Light:
  • Incandescent lamp: ≤ 3,000 lx
  • Sunlight: ≤ 10,000 lx
• Ambient Temperature Range: -40°C to 55°C (No freezing or condensation)
• Storage Temperature Range: -40°C to 70°C (No freezing or condensation)
• Ambient Humidity Range: 35% to 85% (No condensation)
• Storage Humidity Range: 35% to 95% (No condensation)
• Insulation Resistance: ≥ 20MΩ (at DC 500V)
• Withstand Voltage: AC1000V 50/60Hz for 1 minute
• Vibration Resistance: 10–55Hz, 1.5mm amplitude, X, Y, Z directions, 2 hours
• Shock Resistance: 500m/s², X, Y, Z directions, 3 times
• Ingress Protection: IEC IP67
• Connector Type: M8 Connector
• Indicators: Operation indicator (Orange), Stable indicator (Green)
• Weight (with packaging): Approximately 20g
• Material:
  • Case: Polybutylene Terephthalate (PBT)
  • Lens: Methacrylate resin

FAQ:

• Q: What is the maximum detection range of the E3Z-R86?
  • A: The sensor can detect objects up to 4 meters with the E39-R1S reflector.
• Q: Can the sensor be used in outdoor environments?
  • A: Yes, the sensor is designed for outdoor use, with an IP67 rating for dust and water resistance.
• Q: What is the power supply voltage range for this sensor?
  • A: The sensor operates within a voltage range of DC12V to 24V ±10%.
