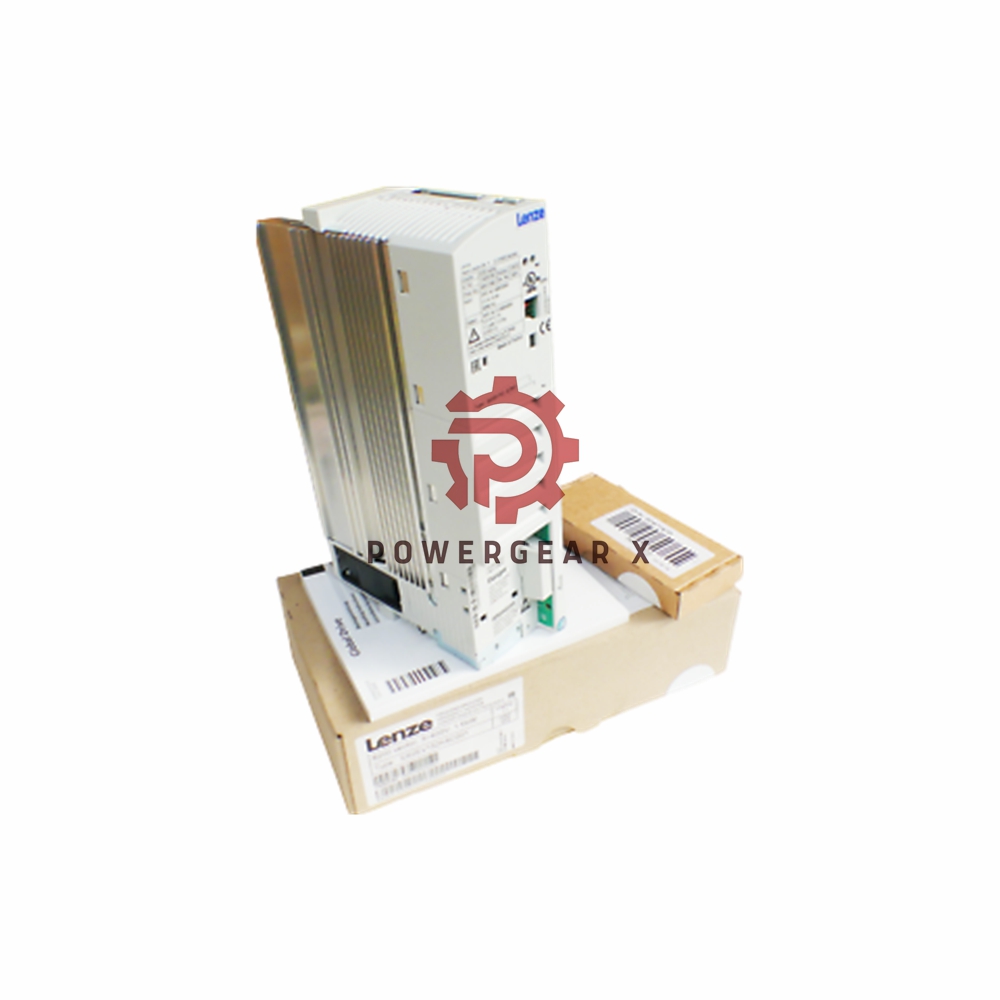

E82CV113K4C Lenze 8200 E82C Frequency Inverter

Overview

The Lenze Series 8200 Frequency Inverter (Model: E82CV113K4C) is designed for industrial automation applications requiring high-performance motor control. This base controller offers advanced features, including vector control, to ensure smooth and efficient motor operation. It’s built with a cold plate variant for enhanced cooling performance, making it ideal for environments with varying temperatures. The IP20 protection class ensures that the inverter can operate in a wide range of industrial conditions.

Technical Specifications

• Brand: Lenze
• Model: 8200 Series
• Part Number: E82CV113K4C
• Rated Mains Voltage: 400V AC
• Mains Voltage Range: 320-550V AC
• Mains Frequency: 45/65 Hz
• Alternative DC Supply: 450-775V DC
• Rated Typical Motor Power: 11 kW
• Cold Plate Variant: Yes
• Protection Class: IP20
• Vector Control: Supported
• Ambient Operating Temperature: -10°C to +55°C
• Ambient Storage Temperature: -25°C to +60°C
• Dimensions: 240 x 125 x 140 mm
• Weight: 3.6 kg

FAQ

Q1: What is the maximum motor power supported by the Lenze Series 8200 Frequency Inverter (E82CV113K4C)?

• The inverter supports motors with a typical rated power of up to 11 kW.

Q2: What is the protection class of the inverter?

• The inverter has an IP20 protection class, making it suitable for general industrial environments.

Q3: What temperature range can the inverter operate in?

• The ambient operating temperature ranges from -10°C to +55°C, with a storage temperature range of -25°C to +60°C.

Q4: Can the inverter be used with both AC and DC power supplies?

• Yes, the E82CV113K4C model supports 3-phase AC power with a voltage range of 320-550V AC and also provides an alternative DC supply option (450-775V DC).
