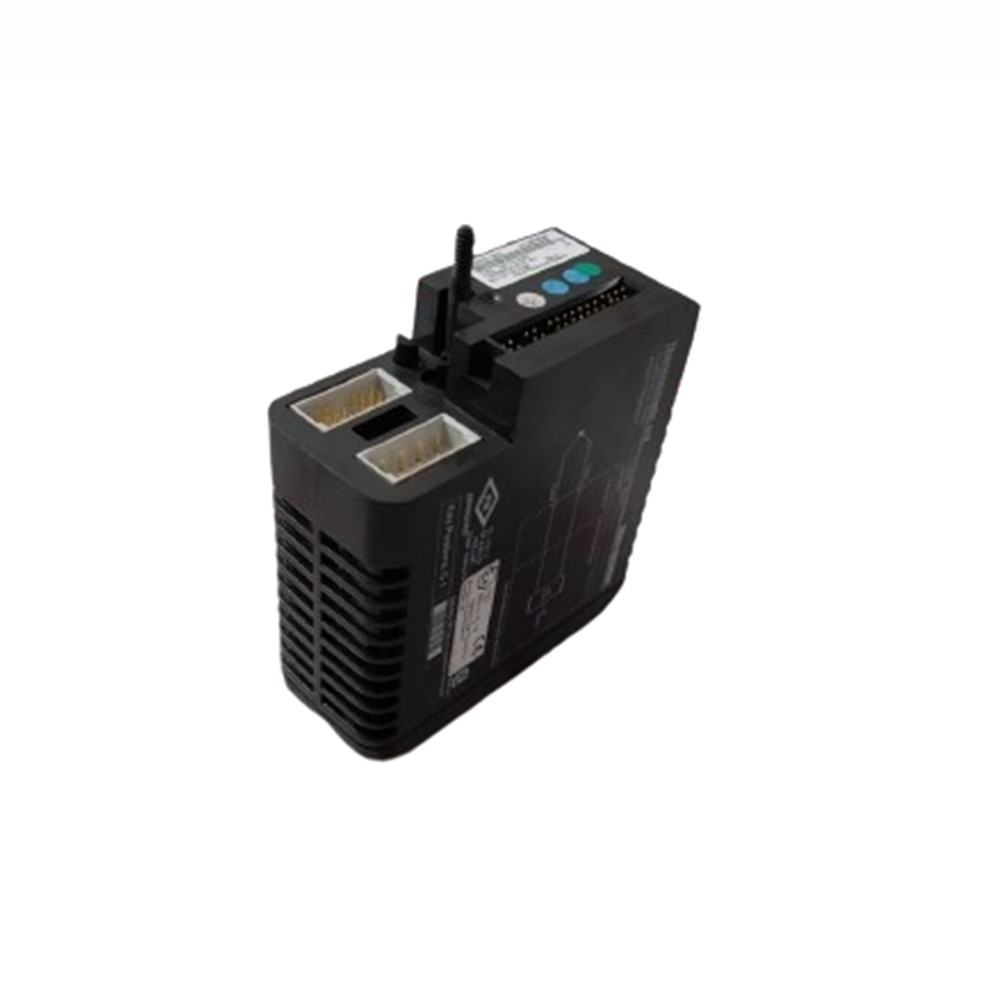

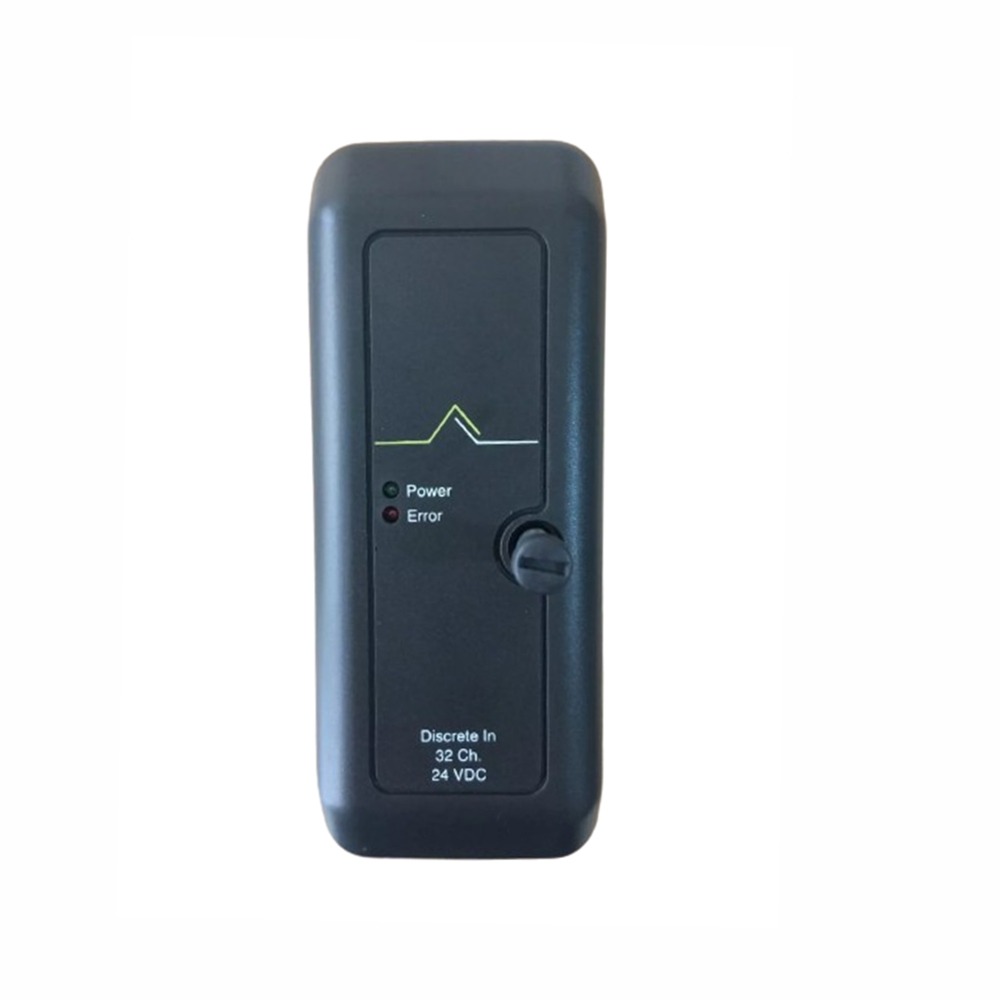

Emerson DeltaV KJ3008X1-BA1 SOE Card 12P2293X052

Technical Specifications

• Brand: Emerson
• Model: KJ3008X1-BA1 (Suffix: 12P2293X052, SOE – Sequence of Events Card)
• LocalBus Power: 12 VDC, 75 mA
• Bussed Field Power: 24 VDC, 75 mA
• Field Circuit Power: 24 VDC, 5 mA/channel
• Ambient Temp: 0 to 60°C
• Shock: 10g, 11ms half-sine
• Vibration: 1mm (5-16Hz), 0.5g (16-150Hz)
• Humidity: 5-95%, non-condensing
• Protection: IP20 rated
• Terminal Block Key Position: C5

Applications

• Designed for precise sequence of event recording.
• Ideal for critical process monitoring in automation.
• Suitable for harsh industrial environments.

FAQs

• What does SOE stand for?
  Sequence of Events for event timestamping.
• What is the suffix meaning?
  Identifies product version and specifications.
• Can it be hot-swapped?
  Yes, under specified power conditions.
• What is the IP20 rating?
  Protection against finger-sized object entry.
• What’s the field power rating?
  24 VDC at 5 mA per channel.

For more detailed information, please check official datasheet: KJ3008X1-BA1 SOE Card
