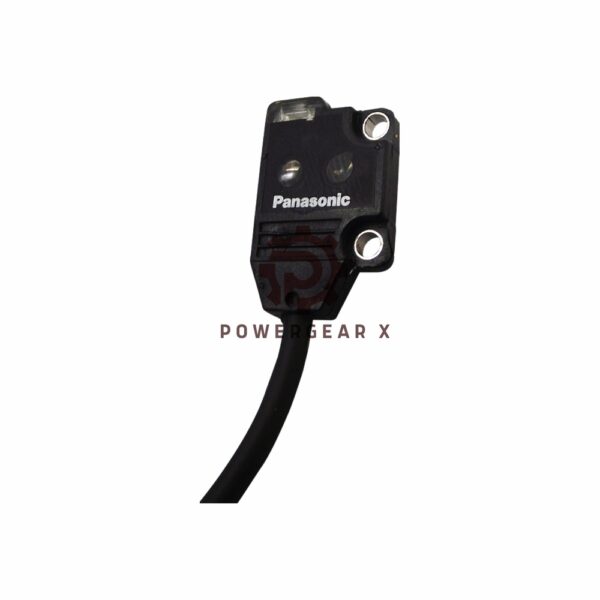

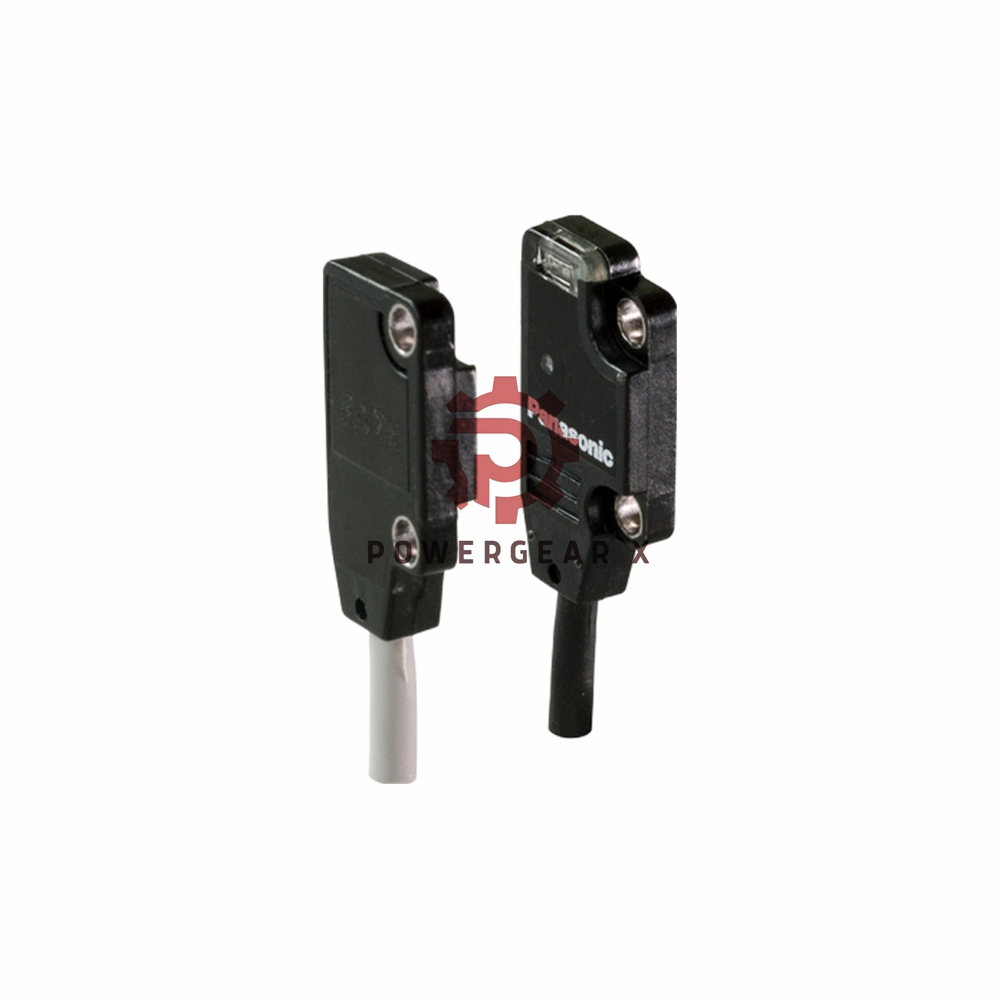

EX-13A-PN Panasonic | Ultra-slim Photoelectric Sensor EX-10 Serie

Technical Specifications

• Brand: Panasonic
• Model Number: EX-13A-PN
• Regulatory Compliance:
  • EMC Directive: EN60947-5-2
  • RoHS Compliant
  • ISO13849-1 (Category 1, PLc)
  • UL Certification
• Power Supply: 12V to 24V DC ±10%, Ripple P-P 10% or less
• Current Consumption:
  • Emitter: 10mA or less
  • Receiver: 10mA or less
• Material:
  • Case: Polyarylate
  • Lens: Polyarylate
• Cable: 3-core 0.1mm², 2m, rubber cable included (Emitter has 2-core cable)
• Cable Extension: Can extend up to 50m with a cable of 0.3mm² or higher (recommendation: 30m for safety applications)
• Mounting Accessories: One set of mounting screws included
• Weight: Sensor body approx. 20g; Packaging weight approx. 50g

FAQ

• Q: What is the maximum detection distance?
  A: The Panasonic EX-13A-PN has a maximum detection range of 500mm.
• Q: Can the sensor be used in harsh environments?
  A: Yes, the sensor has IP67 protection and can withstand a wide range of environmental conditions, including moisture, dust, and vibration.
• Q: Is the sensor RoHS compliant?
  A: Yes, the Panasonic EX-13A-PN is fully compliant with RoHS standards.
• Q: What is the maximum operating temperature?
  A: The sensor can operate in temperatures ranging from -25°C to +55°C.
• Q: Can I extend the cable length?
  A: Yes, you can extend the cable up to 50m, though for safety-critical applications, a maximum of 30m is recommended.
