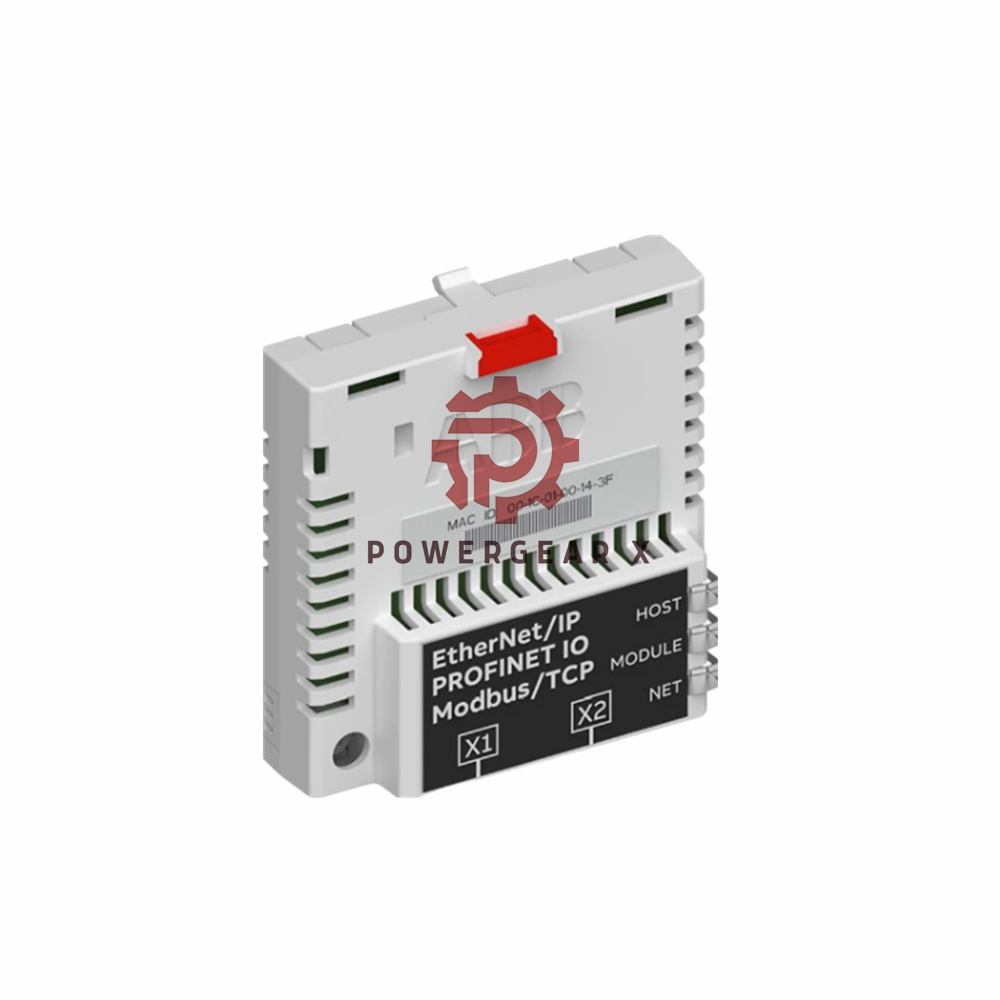

FENA-01 ABB Ethernet Adapter Module

Overview

The ABB FENA-01 Ethernet Adapter Module is a versatile communication interface designed for seamless integration into ABB drives. It provides compatibility with various Ethernet-based protocols such as Modbus/TCP, EtherNet/IP, and PROFINET IO, ensuring efficient data exchange across industrial networks. With robust design features, including conformal-coated PCBs and compliance with EMC standards, the module guarantees reliable performance in demanding environments.

Technical Specifications

• Brand: ABB
• Model: FENA-01
• Connection to Drive: 20-pin terminal
• Ethernet Ports:
  • X1: RJ-45 for Ethernet connection
  • X2 (for FENA-21 only): RJ-45 for linking additional adapter modules
• Power Supply: +3.3 V ±5%, max. 400 mA (supplied by the drive)
• Ethernet Standards: IEEE 802.3, IEEE 802.3u
• Cabling: CAT5/6 UTP, FTP, or STP (maximum segment length: 100 m / 328 ft)
• Communication Speed: 10 Mbps or 100 Mbps (half-duplex or full-duplex)
• PCB Coating: Conformal-coated for enhanced durability
• EMC Standards: Compliant with EN 61800-3:2004
• Topology: Bus or star, daisy-chain topology allows up to 50 nodes
• Protection Class: IP20

FAQs

1. What protocols does the FENA-21 module support?
The module supports Modbus/TCP, EtherNet/IP, and PROFINET IO protocols for versatile communication.

2. How many nodes can be connected in a daisy-chain topology?
Up to 50 nodes are allowed in a daisy-chain configuration.

3. What is the maximum Ethernet cable length supported?
The maximum segment length is 100 meters (328 feet) when using CAT5/6 Ethernet cables.

4. Can this module operate in harsh environments?
Yes, the module features a conformal-coated PCB for protection and complies with EMC standards EN 61800-3:2004.

For more detailed information: EN_FENA_01_EthernetIP_ProtocolManual_A
