FluidLoc Extension Cable 330130-035-10-05 | Bently Nevada

Overview

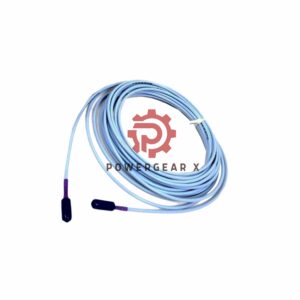

The Bently Nevada 3300 XL Standard Extension Cable (Part Number: 330130-035-10-05) is a high-quality component designed for use with the 3300 XL series of proximity probes. It features a FluidLoc cable option and is certified with CSA, ATEX, and IECEx approvals. With a robust design and advanced connector protection, it offers secure connectivity for measurement systems, ensuring reliability and longevity in industrial applications.

Key Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Standard Extension Cable
• Part Number: 330130-035-10-05
• Cable Length: 3.5 meters (11.5 feet)
• Connector Protector: FluidLoc cable
• Agency Approvals: CSA, ATEX, IECEx
• Cable Type: FluidLoc cable, designed to prevent leakage of oil and other liquids.

Electrical Specifications:

• DC Resistance (RCORE):
  • 3.5 meters: 0.77 ± 0.12 Ω (from center conductor to center conductor)
• DC Resistance (RJACKET):
  • 3.5 meters: 0.23 ± 0.05 Ω (from outer conductor to outer conductor)
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Power Requirements:

• Voltage: -17.5 Vdc to -26 Vdc
• Maximum Consumption: 12 mA
• Operation Range:
  • -23 Vdc to -26 Vdc with barriers
  • Above -23.5 Vdc reduces linear range

Output Resistance:

• 50 Ω

Field Wiring:

• Recommended Cable: 3-conductor shielded triad cable, 0.2 to 1.5 mm² (16 to 24 AWG)
• Maximum Field Wiring Length: 305 meters (1,000 feet)

FAQ

1. What is the maximum cable length for the 3300 XL extension cable?
   The maximum recommended field wiring length is 305 meters (1,000 feet).
2. Can I use the silicone tape as a permanent connector protector?
   While silicone tape can be used, it is not recommended for applications involving exposure to turbine oil.
3. What are the agency approvals for this extension cable?
   This extension cable is CSA, ATEX, and IECEx approved, ensuring compatibility with safety standards in various industrial environments.
4. What is the maximum voltage this cable supports?
   The extension cable operates within a voltage range of -17.5 Vdc to -26 Vdc.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
