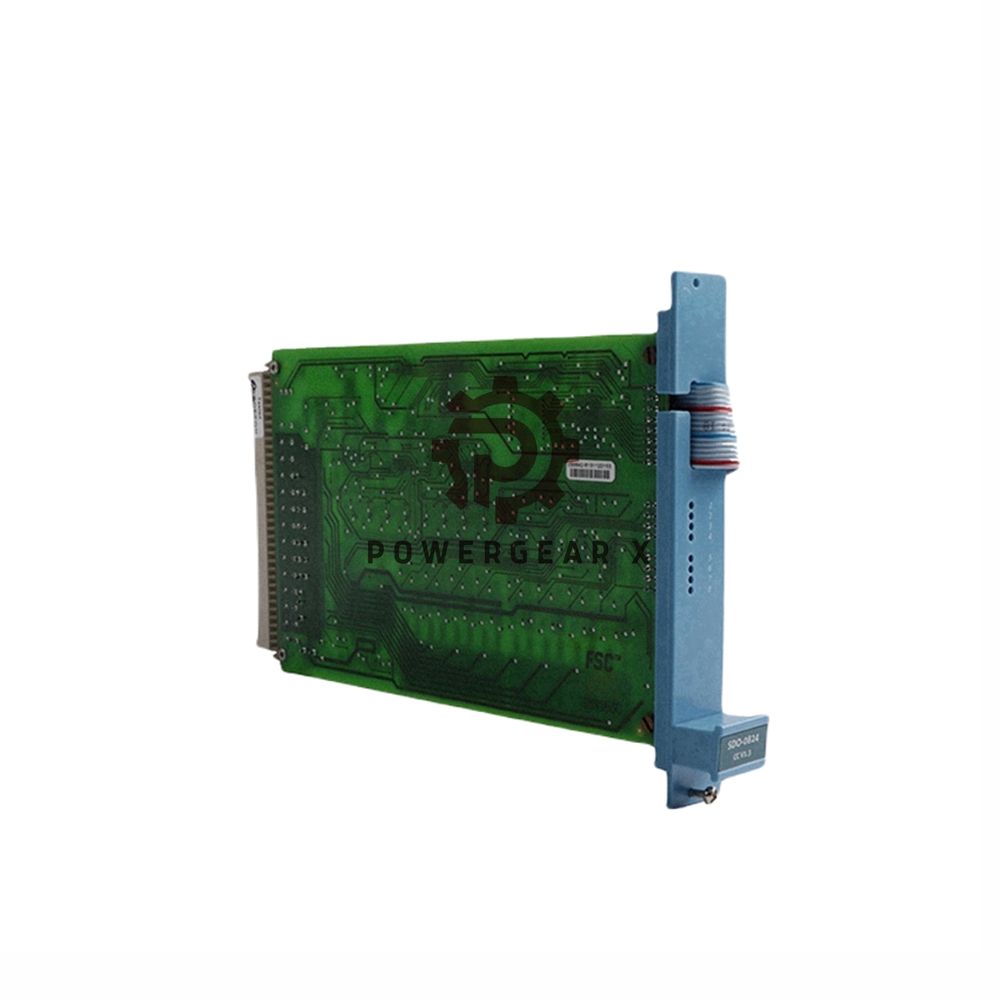

FS-SDOL-0424 Honeywell 24 V DC Digital Output Module

FS-SDOL-0424 Safe Loop-Monitored Digital Output Module

The FS-SDOL-0424 is a highly reliable and safety-certified digital output module, designed to ensure safe and efficient operation in industrial applications. This module provides four loop-monitored output channels that are ideal for driving both resistive and inductive loads.

Technical Specifications:

• Brand & Model: FC-SDOL-0424, a part of the FC series of Safe Digital Output Modules.
• Type Numbers: FS-SDOL-0424, FC-SDOL-0424
• Standards Compliance: CE, TUV, UL, CSA, FM certified for industrial safety.
• Space Requirements: 4 TE, 3 HE (4 HP, 3U), compact design suitable for various installation environments.

Power Requirements:

• Supply Voltage: 5 V DC (Internal), 24 V DC (External)
• Internal Power Consumption: 50 mA (24 V DC)
• External Power Consumption: 15 mA (without output load)
• 5 V DC Power Consumption: 15 mA

Output Characteristics:

• Number of Channels: 4
• Output Type: 24 V DC, solid-state source
• Max Channel Current: 1 A per channel
• Max Load Per Module: 3.6 A (dissipation limit)
• Maximum Inductive Load: 0.5 H
• Maximum Capacitive Load: 1 μF
• Voltage Drop: < 1.3 V at 1 A output
• Off-Current: < 0.1 mA
• Current Sense Voltage Drop: < 1 V at 1 A
• Watchdog Input Current: 4 mA

LED Indicator Functionality:

• Off Channel: LED flashes intermittently during lead breakage tests.
• On Channel (Non-Redundant): LED flashes periodically during internal self-tests.
• On Channel (Redundant): Flashing appears intermittent due to synchronization between processors.

FAQ:

1. What is loop monitoring? Loop monitoring ensures that the output channels are continuously checked for faults, such as lead breakage or short circuits, for enhanced operational safety.
2. What types of loads can the FC-SDOL-0424 module drive? The module can drive both resistive and inductive loads, with the ability to manage up to 24 W of power per channel.
3. Can the output channels be used in redundant configurations? Yes, the module supports redundant configurations for greater fault tolerance and safety.
4. What certifications does the FC-SDOL-0424 comply with? The module meets CE, TUV, UL, CSA, and FM standards, ensuring compliance with global safety and quality standards.

For more detailed information, please check official datasheet: Honeywell SDOL-0424
