GE | 21000-16-10-15-114-03-02 Bently Nevada

Overview:

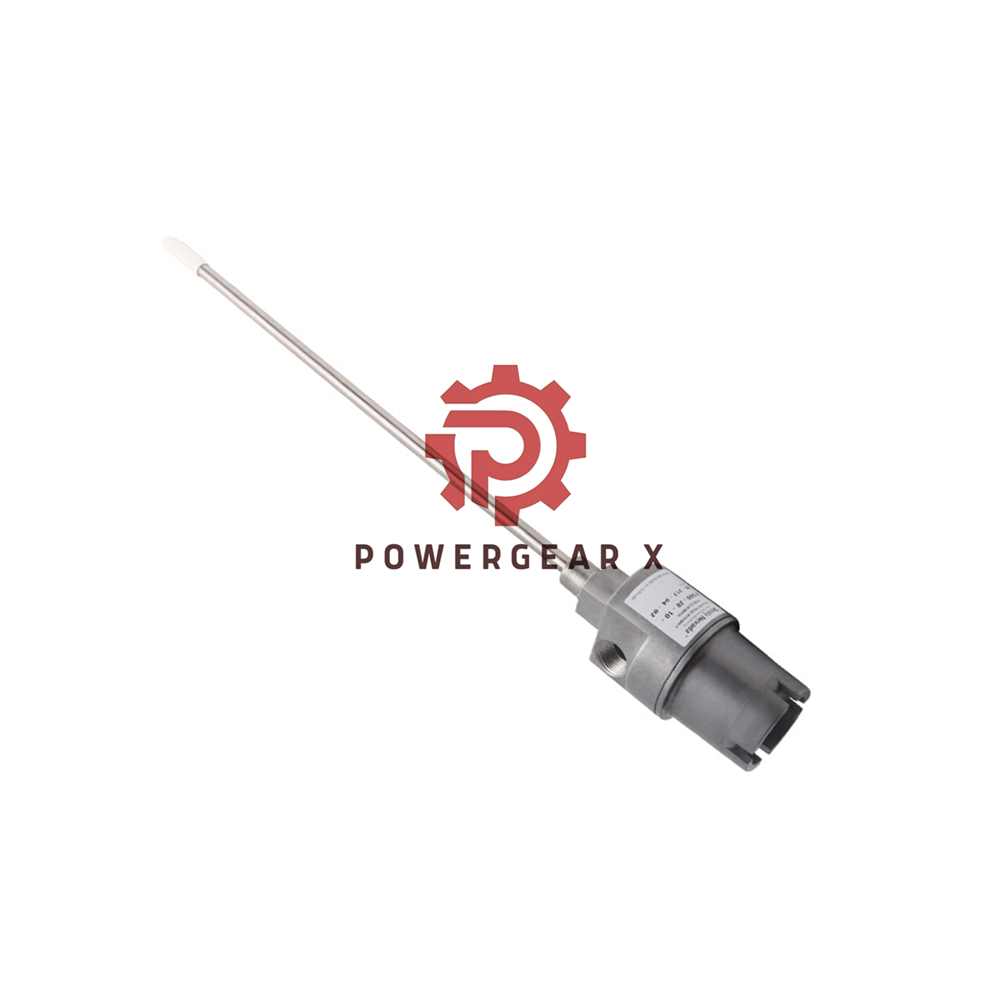

The Bently Nevada 21000-16-10-15-114-03-02 Proximity Probe Housing Assembly is a high-quality, factory-warranted solution designed for rugged industrial applications. Constructed from durable aluminum with a stainless steel sleeve, this assembly is ideal for measuring vibration and position in hazardous environments. With CSA approval and compliance with API 670 standards, it is a reliable choice for explosion-proof, intrinsically safe applications. The housing features a dome cover, threaded ports, and optional fittings, making it adaptable to a wide range of setups.

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000-16-10-15-114-03-02
• Probe Option: -16 (3300 XL 8 mm probe)
• Probe Cable Length: -10 (1.0 m / 39 in)
• Standoff Adapter: -15 (Minimum length: 1.5 in / 38 mm)
• Probe Penetration: -114 (11.4 in)
• Fitting Option: -03
  • One 3/4-14 NPT plug
  • One 3/4-14 to 1/2-14 NPT reducer
  • Cable seal grip with grommets for 1/8 to 3/8-inch cables
  • Includes:
• Mounting Thread Option: -02 (3/4-14 NPT, required if Standoff Adapter Length Option is not -00)
• Material: Aluminum body with 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lb) typical, excluding fittings
• Maximum Dimensions:
  • For visible probe (P/N and S/N): 13.5 in (34.3 cm)

Ordering Information:

The 21000 Proximity Probe Housing Assembly can be customized with various options:

• Probe Cable Length: Choose between standard 1.0 m (39 in) or other available lengths.
• Fitting Options: Tailored for a range of conduit sizes, ensuring flexibility in installation.
• Mounting: 3/4-14 NPT threads, offering compatibility with most industrial setups.
• Standoff Adapter: Available in customizable lengths to accommodate different mounting needs.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
