GE | Bently Nevada 21000-16-10-00-256-01-02

Overview:

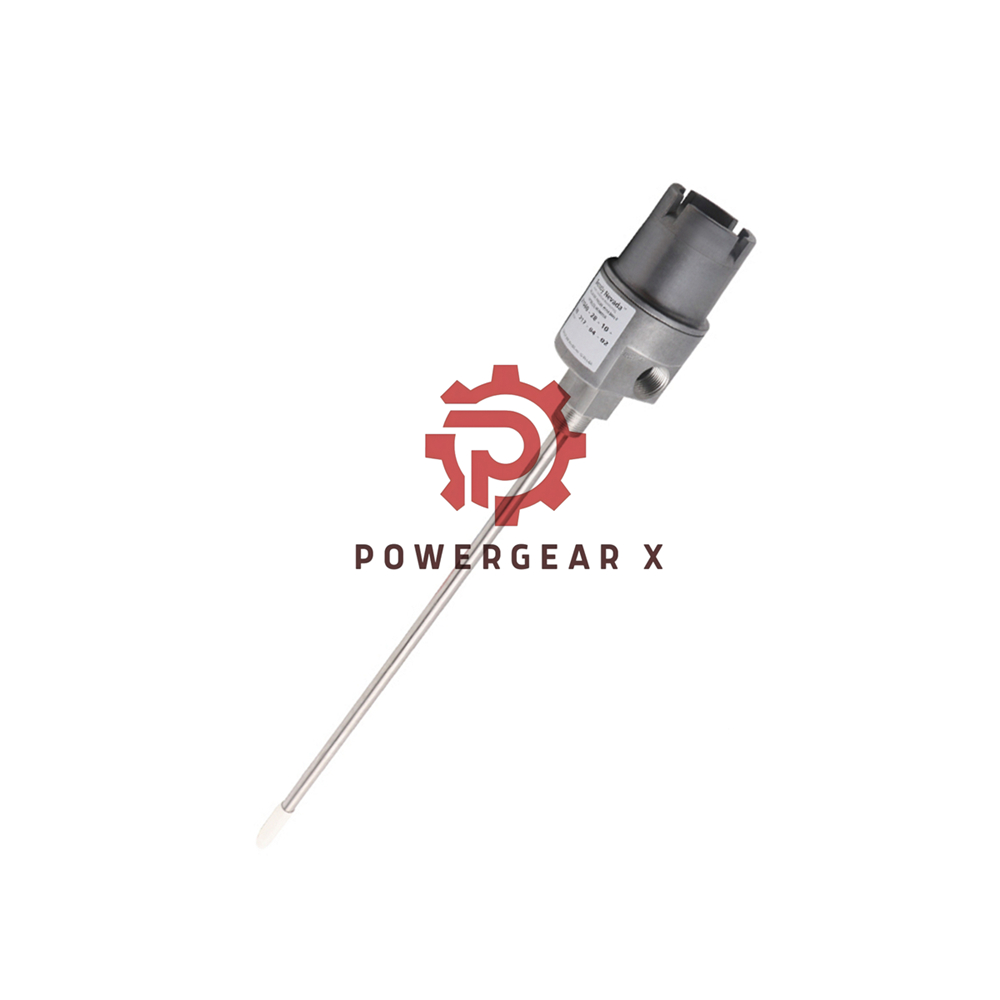

The Bently Nevada 21000-16-10-00-256-01-02 Proximity Probe Housing Assembly is for use in hazardous area applications. Featuring an explosion-proof construction, it is ideal for externally mounted proximity probes, ensuring high reliability in critical monitoring systems. This assembly is fully compliant with American Petroleum Institute (API) 670 standards and offers CSA Type 4 approval for intrinsically safe environments.

Ordering Information:

To ensure compatibility and meet specific needs, select the appropriate options when ordering the 21000 Proximity Probe Housing Assembly:

• Probe Option: -16 3300 XL 8 mm probe
• Probe Cable Length Option: -10 1.0 m (39 in)
• Standoff Adapter: -00 (no standoff adapter)
• Probe Penetration: -256 (25.6 in)
• Fitting Option: -01 (one explosion-proof fitting and one plug)
• Mounting Thread Option: -02 (3/4-14 NPT, if no standoff adapter is used)

Technical Specifications:

• Model: 21000-16-10-00-256-01-02
• Brand: Bently Nevada
• Material: Aluminum body with 304 stainless steel sleeve
• Maximum Cable Length: 1.0 m (39 in)
• Weight: 1.1 kg (2.4 lb), typical without fittings
• Mounting Thread: 3/4-14 NPT (when applicable)
• Housing Dimensions: 13.5 in (34.3 cm) maximum for non-visible probe

Key Components:

• Dome cover that screws into the housing body
• Threaded ports for conduit connections
• A probe sleeve of optional length
• O-rings for sealing
• Reverse mount proximity probe
• Thread seal and optional conduit fittings
• Optional standoff adapter

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
