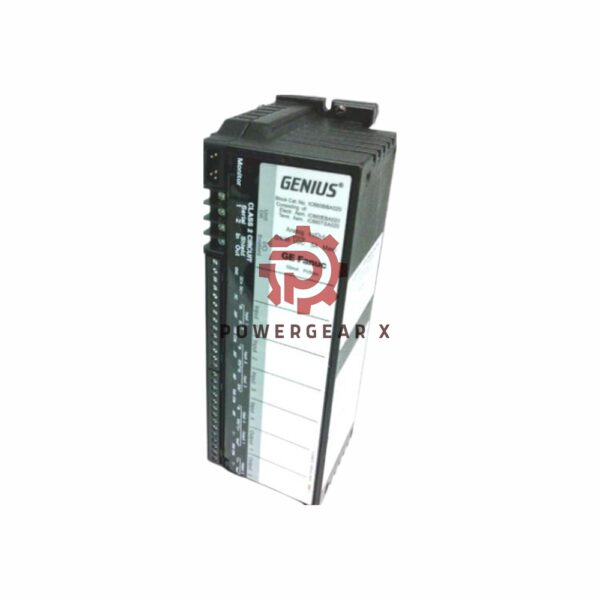

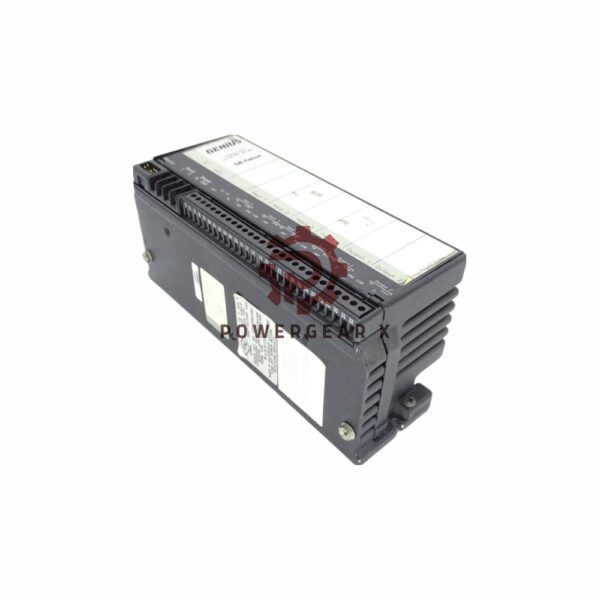

GE Fanuc IC660BBA020 24/48 VDC Analog I/O Block

GE Fanuc IC660BBA020 Overview

The IC660BBA020 is a Genius Block I/O module, formerly manufactured by GE Fanuc and now part of Emerson Automation. It is a stand-alone combination I/O unit powered by 24/48 VDC. The module includes four analog inputs capable of accepting a variety of signals: 0–10 VDC, 10 VDC, 5 VDC, 0–5 VDC, 4–20 mA (or 1–5 VDC). It also features two analog outputs, which can deliver signals in the ranges of 0–10 VDC, 10 VDC, 5 VDC, 0–5 VDC, and 4–20 mA (or 1–5 VDC). The module offers 12-bit resolution, including a sign bit, with an update rate of 4 ms. Utilizing the Genius communication protocol, the IC660BBA020 functions as a stand-alone Remote I/O module.

Technical Specifications

• Model: IC660BBA020 (4-input/2-output Analog I/O Block)
• Power Supply:
  • 115 VAC (Operating range: 98-132 VAC, Maximum Power: 10 VA, Frequency: 47-63 Hz)
  • 24/48 VDC (Maximum Power: 8 W)
• Environmental Conditions:
  • Operating temperature: 0 to 60°C (32°F to 140°F)
  • Storage temperature: -40°C to 100°C (-40°F to 212°F)
  • Humidity: 5% to 95% (Non-condensing)
  • Vibration: 5-10 Hz, 0.2″ (5.08 mm) displacement; 10-200 Hz at 1G.
• Input Characteristics:
  • Resolution: 12-bit + sign
  • Update Frequency: Every 4 ms
  • Diagnostics: Includes underrange, overrange, high alarm, low alarm, and open wire detection
  • Input Filter Ranges: Options from none to 1024 ms
• Output Characteristics:
  • Resolution: 12-bit + sign
  • Update Frequency: Every 4 ms
  • Diagnostics: Includes underrange and overrange
  • Output Load:
    • Voltage mode: ≥ 2000Ω
    • Current mode: 0 to 300Ω

FAQ

Q1: What is the power supply range for the IC660BBA020?
A1: The IC660BBA020 requires a 24/48 VDC power supply range for operation.

Q2: What types of analog signals are supported by the IC660BBA020?
A2: The module supports various analog signals such as 0–10 VDC, 10 VDC, 5 VDC, 0–5 VDC, 4–20 mA, and 1–5 VDC.

Q3: What is the update rate of the IC660BBA020 module?
A3: The module updates at a rate of 4 ms, ensuring real-time data processing.

Q4: How much does the IC660BBA020 module weigh?
A4: The module weighs 4 pounds (1.8 kg).

Q5: What is the block-to-block isolation rating?
A5: The IC660BBA020 provides 1500 Volts block-to-block isolation for added protection and reliability.

For more detailed information, please check official datasheet. Genius IO Discrete and Analog Blocks
