GE Fanuc IC694PWR330 | Remote Base Power Supplies

Overview

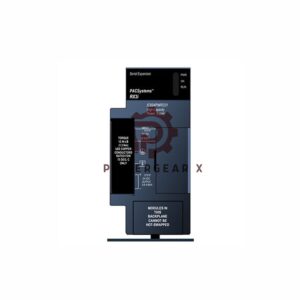

The GE Fanuc RX3i IC694PWR330 power supply module is designed to provide reliable expansion power for GE RX3i PacSystems PLCs. Operating on both AC and DC voltage, it is specifically engineered to be installed in the serial expansion backplane of the RX3i PLC, delivering up to 30 watts of additional power.

Technical Specifications:

• Brand: GE Fanuc
• Series: RX3i PacSystems
• Model: IC694PWR330
• Voltage Type: AC & DC
• AC Input Voltage: 85 to 264 Volts AC
• DC Input Voltage: 100 to 300 Volts DC
• Current Rating: 2 Amps
• Fuse Type: GE 44A724627-109 Fuse
• Torque Rating: 12 Pounds per Inch (1.3 N-m)
• Power Capacity:
  • 30 Watts at 5 Volts DC
  • 20 Watts at 24 Volts DC isolated
  • 15 Watts at 24 Volts DC relay
• Installation: Must be installed in the serial expansion backplane
• Rack Number Selection: Set DIP switch prior to installation

This power supply module is compatible with all RX3i CPUs, enabling seamless expansion capabilities. The IC694PWR330 can support significant power demands but cannot facilitate load-sharing redundancy.

FAQ:

1. Can the IC694PWR330 module support redundancy?
   • No, the IC694PWR330 does not support load-sharing redundancy.
2. What is the torque rating for this power supply module?
   • The module has a torque rating of 12 pounds per inch (1.3 N-m).
3. What fuses does this power supply use?
   • The IC694PWR330 uses a GE 44A724627-109 fuse for protection.
4. Can this power supply module work with all RX3i CPUs?
   • Yes, it is compatible with any CPU in the GE RX3i series.
