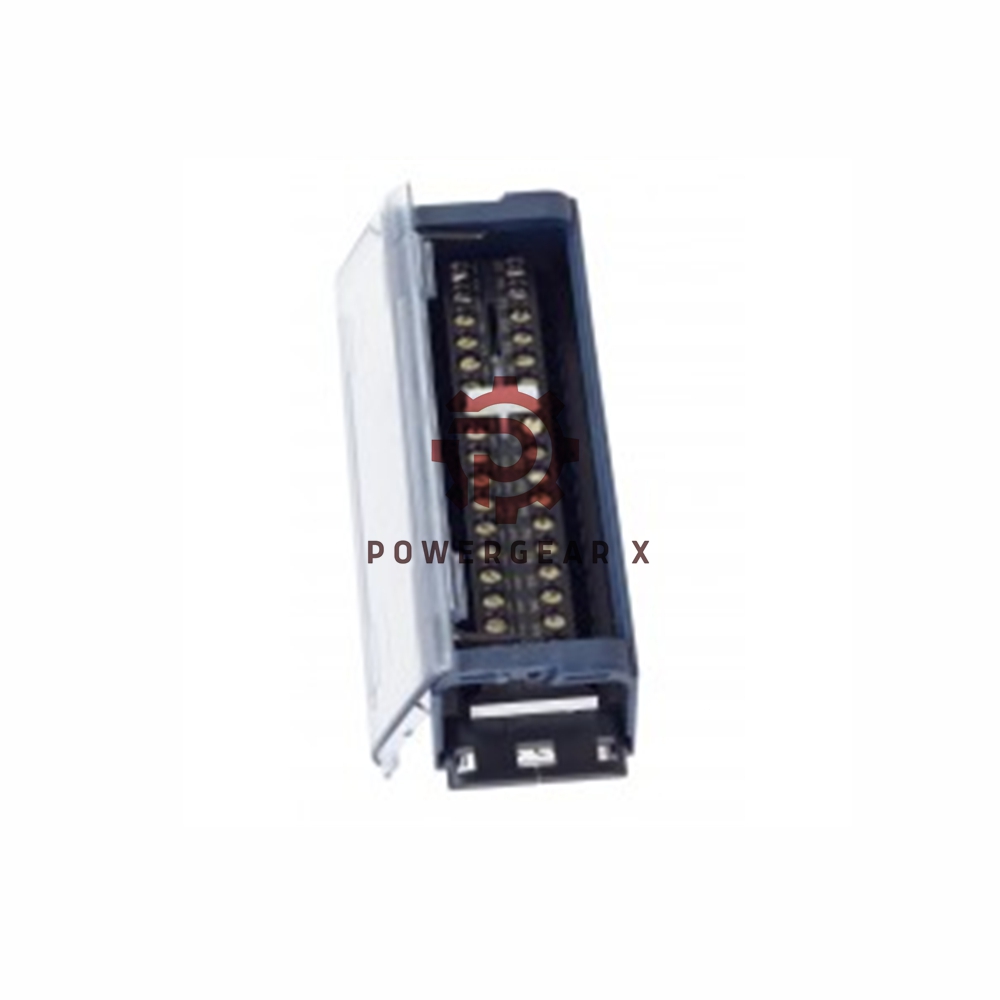

GE Fanuc | IC694TBS032 Spring-Style Terminal Block

Overview

The GE Fanuc IC694TBS032 Spring-Style Terminal Block is designed to support high-density PACSystems RX3i modules and Series 90-30 PLC modules. It is equipped with 36 spring-style terminals, ideal for field wiring connections to modules. This terminal block features a standard-depth outer cover, aligning with the depth of most PACSystems and Series 90-30 PLC modules. It is highly reliable for use in industrial environments, providing secure and efficient wiring management.

Key Features:

• Compatible with: PACSystems RX3i and Series 90-30 PLC modules
• Outer cover: Standard-depth design (depth of the module) for IC694TBS032; Extended-depth for IC694TBS132
• Terminal types: 36 spring-style terminals for secure field wiring

Technical Specifications

• Model: IC694TBS032
• Type: Spring-Style Terminal Block
• Wire Gauge Supported: #14-28 AWG (solid or stranded)
• Wire Strip Length: 0.310 inches (7.87 mm)
• Material: High-quality, durable construction for industrial use
• Brand: GE Fanuc
• Applications: Used with PACSystems RX3i and Series 90-30 PLC modules for efficient field wiring

Terminal Block IC694TBS032 vs. IC694TBS132

Both terminal blocks, IC694TBS032 and IC694TBS132, are functionally identical. However, the IC694TBS132 comes with an extended outer cover, which is approximately ½-inch deeper than the IC694TBS032. This depth adjustment accommodates wires with thicker insulation, typically used for AC I/O modules, while the IC694TBS032 maintains the standard-depth cover suitable for regular wiring.
