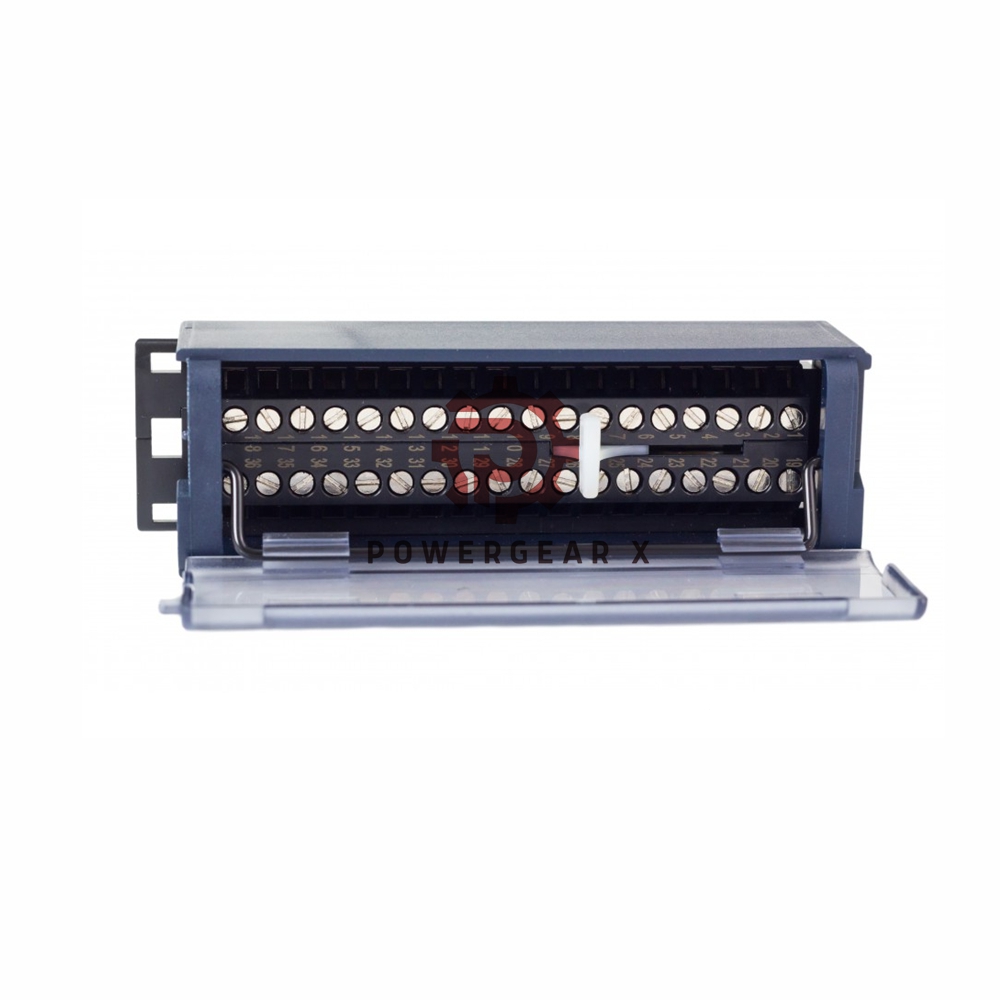

GE Fanuc | IC694TBS132 Extended Spring-style Terminal Block

Overview:

The IC694TBS132 and IC694TBS032 terminal blocks are designed to provide a high-density wiring solution for PACSystems RX3i modules and Series 90-30 PLCs. These spring-style terminal blocks are essential for connecting field wiring to the modules, ensuring reliable electrical connections. While both terminal blocks are functionally identical, the IC694TBS132 has an extended outer cover for accommodating thicker insulation on wires, commonly used with AC I/O modules.

Key Features:

• Spring-style terminal blocks for easy installation.
• 36 pins for high-density connections.
• Compatible with PACSystems RX3i and Series 90-30 PLC modules.
• Extended outer cover (IC694TBS132) accommodates thicker wires.
• Provides secure connections for solid and stranded wires.

Technical Specifications:

• Model Numbers:
  • IC694TBS032
  • IC694TBS132
• Brand: GE Fanuc
• Wire Strip Length: 0.310 inches (7.87 mm)
• Supported Wire Gauges:
  • #14-28 AWG (solid or stranded)
• Cover Depth:
  • IC694TBS032: Standard depth
  • IC694TBS132: Extended depth, ½-inch (13 mm) deeper
• Compatibility: PACSystems RX3i and Series 90-30 PLC modules
• Terminal Type: Spring-style for easy wire insertion and secure connection
