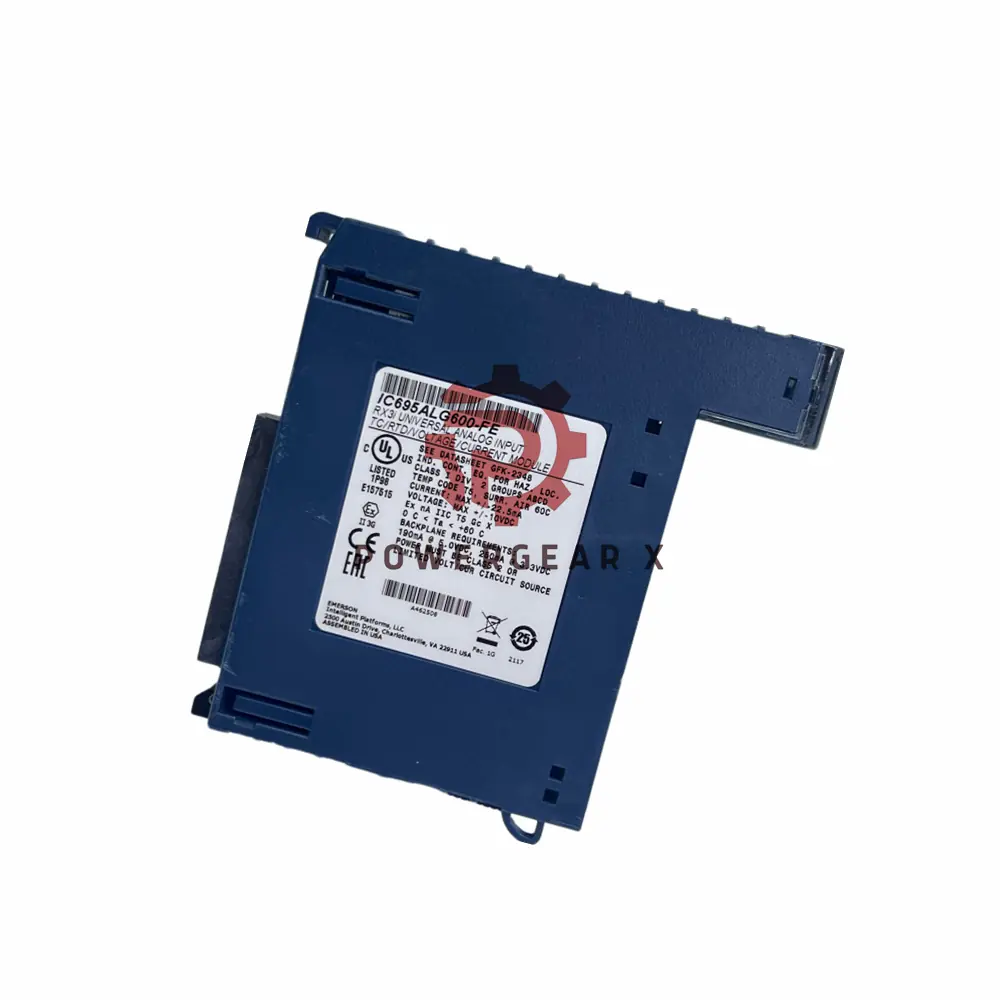

GE Fanuc IC695ALG600 RX3i Universal Analog Input Module

Overview

The IC695ALG600 is a universal analog input module designed for the PACSystems RX3i Programmable Automation Controller (PAC) series. Manufactured by Emerson Automation, formerly GE Intelligent Platforms (GE IP), this module offers flexibility and high performance for various industrial applications. It accommodates up to eight input channels, split into two groups of four channels, supporting multiple signal types, including current, voltage, RTD, resistance, and thermocouple inputs. This modular solution is ideal for automation, process control, and data acquisition systems that require precise analog input processing.

Technical Specifications

• Brand: GE Fanuc (now Emerson Automation)
• Model: IC695ALG600
• Module Type: Universal Analog Input
• Channels: 8 (2 groups of 4 channels each)
• Cold Junction Compensation (CJC): 2 channels
• Signal Types:
  • Current Inputs: 0-20 mA, 4-20 mA, ±20 mA
  • Voltage Inputs: ±50 mV, ±150 mV, 0-5 V, 1-5 V, 0-10 V, ±10 V
  • Resistance Inputs: 0 to 250/500/1000/2000/3000/4000 Ohms
  • Thermocouple Inputs: B, C, E, J, K, N, R, S, T
  • RTD Inputs: PT 385/3916, N 618/672, NiFe 518, CU 426
• Configurable Input Filter: 8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, 1000 Hz
• Module Resolution: 11-16 bits
• Internal Power: 3.3V (350mA), 5V (400mA)
• Power Dissipation: 5.4W max
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Humidity: 5% to 95%, non-condensing
• Field Status LED: Yes
• Module OK LED: Yes
• Terminal Block LED: Yes

Installation and Configuration

This module is compatible with the PACSystems RX3i backplane and requires version 2.80 firmware or later. It can be configured using Proficy Machine Edition (PME) version 5.0 SP1A LD-PLC Hotfix 1 or later. For terminating input signals, the module uses compatible terminal blocks such as Box-style (IC694TBB032), Extended Box-style (IC694TBB132), Spring-style (IC694TBS032), and Extended Spring-style (IC694TBS132). Extended terminal blocks are recommended for thicker insulation wires and shielded wires.
