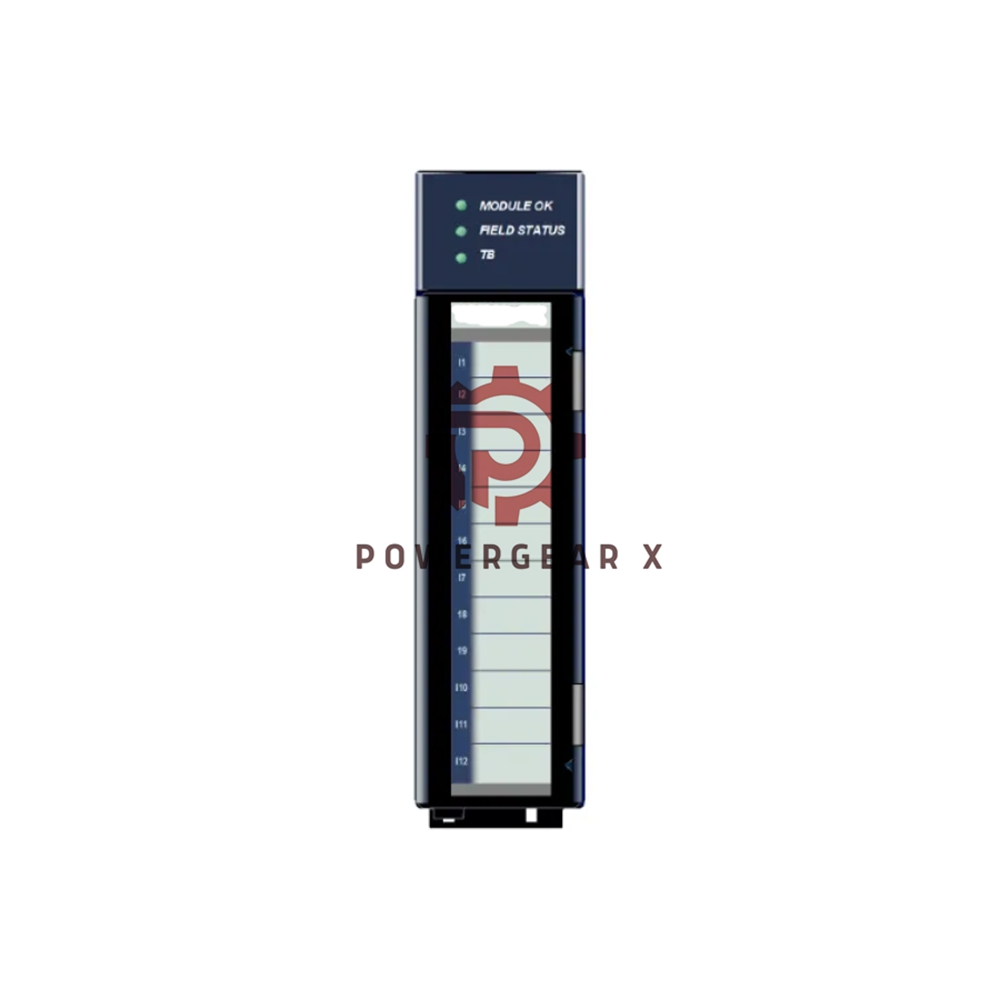

GE Fanuc IC695ALG808 RX3i Analog I/O 4-20 mA

Overview

The GE Fanuc IC695ALG808 is a powerful isolated analog output module for the PACSystem RX3i, manufactured by Emerson Automation (formerly GE Intelligent Platforms). It offers eight isolated output channels with multiple configurations, providing current signals (0-20 mA, 4-20 mA) and voltage signals (+/-10 VDC, 0-10 VDC). The module is designed for use in industrial automation, delivering precise analog outputs to modulating devices such as Variable Frequency Drives (VFDs), control valves, and dampers.

Technical Specifications

• Brand: GE Fanuc (Emerson Automation)
• Series: PACSystem RX3i
• Part Number: IC695ALG808
• Product Type: Isolated Analog Output Module
• Number of Channels: 8
• Signal Types:
  • Current: 0-20 mA, 4-20 mA
  • Voltage: +/-10 VDC, 0-10 VDC
• Resolution:
  • +/-10V: 14 bits
  • 0-10V / 0-20mA / 4-20mA: 15 bits
• Voltage Range: 0 to +10 V, -10 to +10 V
• Output Load (Max.): 1350 Ohms
• Update Rate: 8 ms for all channels
• External Power Supply: 19.2 to 30 VDC (24 V nominal)
• Power Dissipation: 7.25 Watts (maximum)
• Isolation Voltage: 2550 VDC for 1 second
• Current Draw: 360 mA max at 3.3 VDC, 17 mA @ 5.0 VDC
• Module Fault Reporting & Alarm Settings: Configurable low, high, very low, and very high alarm limits
• Analog Output Settling Time: 2 milliseconds (0 to 95%)
• Current Input: 160 mA (external)

FAQ

• What is the required power supply for the IC695ALG808 module?
• The module requires an external 24 VDC power supply within the range of 19.2 to 30 VDC.
• What types of devices can the IC695ALG808 module be used with?
• It is compatible with modulating devices like VFDs, control valves, and dampers, as well as panel meters and data loggers.
• What are the available signal types for this module?
• The module supports current outputs (0-20 mA, 4-20 mA) and voltage outputs (+/-10 VDC, 0-10 VDC).
• What is the accuracy of the module’s output?
• The module has a calibrated accuracy of 0.15% of full scale at 25°C and 0.25% at 60°C.

Check official datasheet for more detailed information: GFK-2481J_ALG808_IPI
