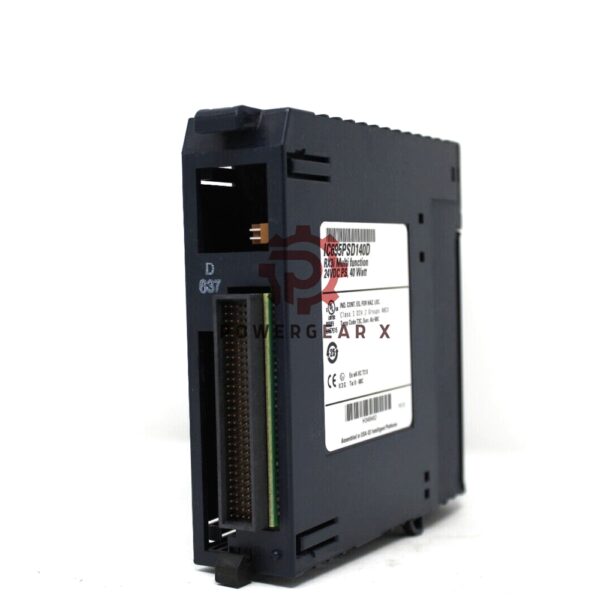

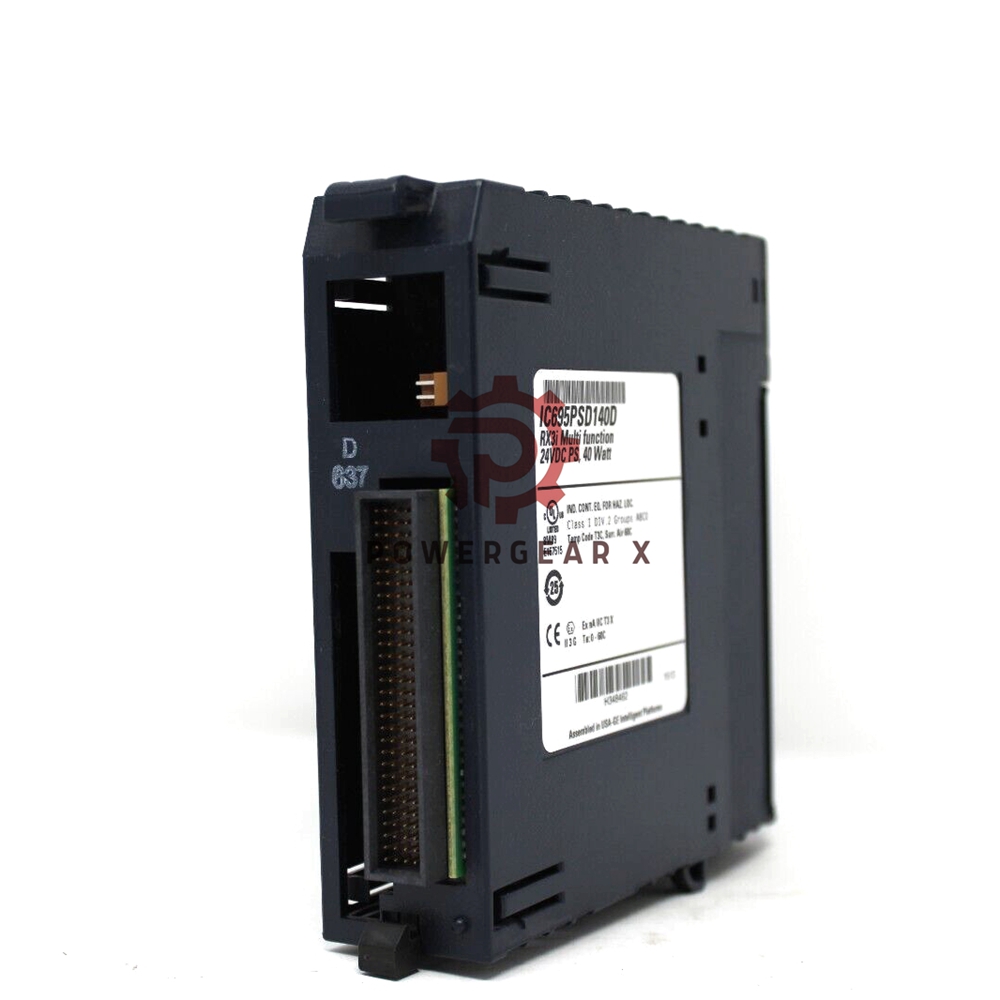

GE Fanuc IC695PSD140 | PSD Multipurpose Power Supply

Overview

The IC695PSD140 is a versatile power supply module in the PACSystems RX3i series, manufactured by Emerson Automation (formerly GE Fanuc). It is designed to provide reliable DC power, suitable for both redundancy and load-sharing applications. This power supply module can support multiple modules in a system, providing stable voltage outputs for various components. It operates within the RX3i platform, delivering consistent power across 5.1V, 3.3V, and 24V outputs for optimal system performance.

Technical Specifications

• Brand: GE Fanuc (now Emerson Automation)
• Model: IC695PSD140
• Part Number: IC695PSD140
• Type: Universal Base Power Supply Module
• Manufacturer: Emerson Automation
• Nominal Rated Voltage: 120/240 VAC or 125 VDC
• Input Voltage Range: 18 to 30 VDC
• Input Power: 60 Watts maximum (at full load)
• Output Power: 40 Watts maximum (total output power)
• Outputs:
  • 24 VDC (19.2 VDC to 28.8 VDC)
  • 5.1 VDC (5.0 VDC to 5.2 VDC, 5.1 VDC nominal)
  • 3.3 VDC (3.1 VDC to 3.5 VDC, 3.3 VDC nominal)
• Output Current:
  • 24 VDC: 0 to 1.6 Amps
  • 5.1 VDC: 0 to 6 Amps
  • 3.3 VDC: 0 to 9 Amps
• Ripple: 150 mV
• Noise: 150 mV
• LED Indicators:
  • Power (green/amber)
  • P/S Fault (red)
  • Overload (red)
  • Over-temperature (amber)
• Redundancy: Supported (up to four modules)
• Daisy Chain Capability: Up to 4 modules
• Terminal Current: 6 Amps
• Wire Size Range: #14 – #22 AWG
• Ride-through Time: 20 ms
• Installation: RX3i universal backplane (occupies two slots)
• On/Off Switch: Yes
• Isolation: None
• Increased Capacity Mode: Not compatible with IC695PSD040 or IC695PSA040 in redundancy/increased capacity modes.
