Overview

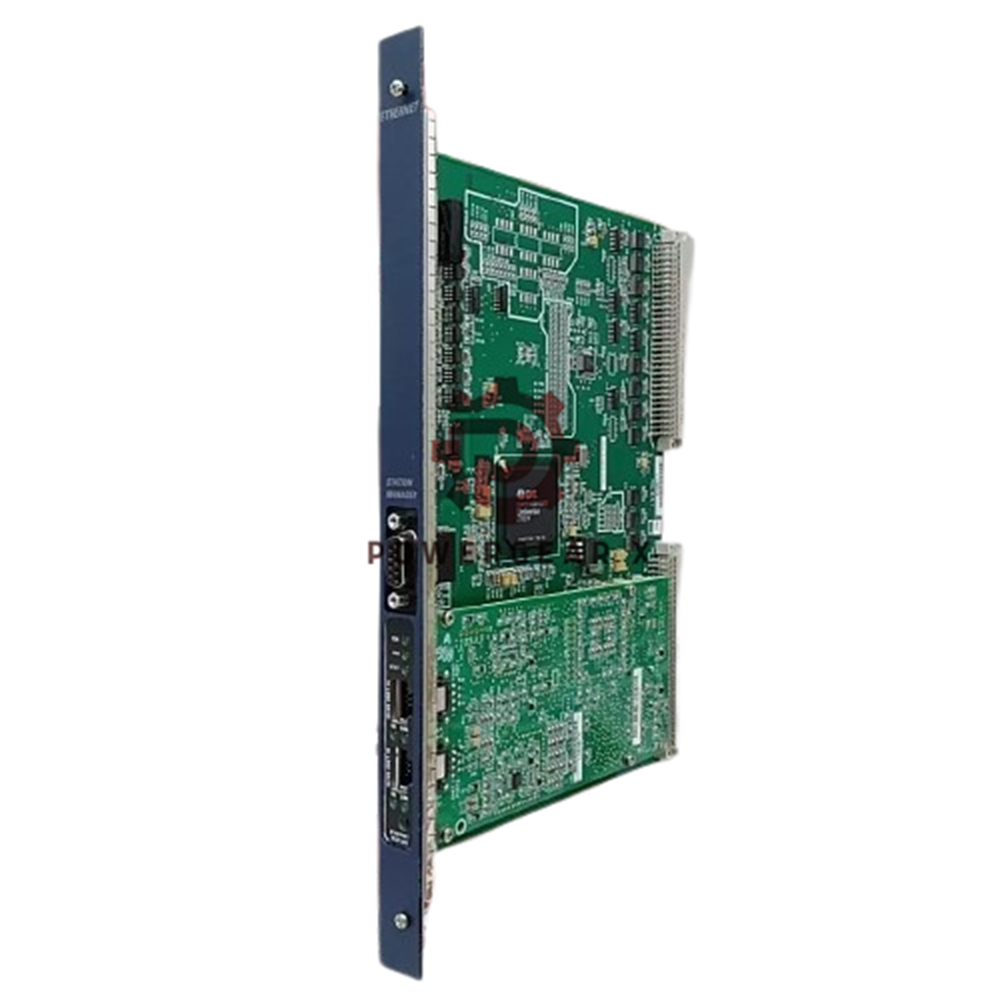

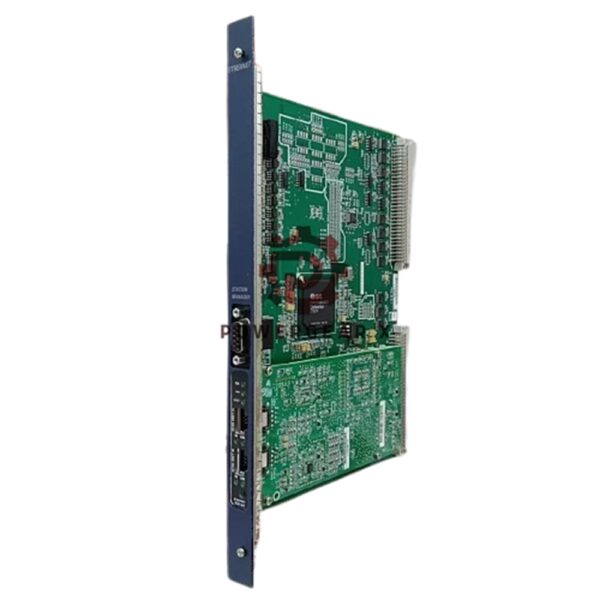

The IC698ETM001 is a high-performance Ethernet interface module designed by GE Fanuc, part of the RX7i PACSystem series. It provides efficient and reliable Ethernet communication for industrial automation systems, including support for TCP/IP communication, Modbus/TCP, and SRTP. It offers a robust solution for integrating control systems over Ethernet, providing extended connectivity, high-speed communication, and easy troubleshooting.
Technical Specifications
- Brand: GE Fanuc
- Model: IC698ETM001
- Series: RX7i PACSystem
- Speed: 200 MHz Ethernet processor
- Operating Voltage: +5 VDC
- Current: 1.5 A max
- Ports: 2 Ethernet ports (RJ-45), 1 serial port (RS-232, 9-pin D-connector)
- Network Protocols: TCP/IP, Modbus/TCP Server, Modbus/TCP Client, SRTP Client
- Redundant IP Addressing: Supported
- LED Indicators: MODULE OK, LAN ONLINE, STATUS 100, LINK P1, LINK P2
- Temperature Range: 0°C to +60°C
- Connector: 10/100 Base T RJ-45
- Maximum Number of IP Addresses: 1 per module
- Mounting Method: Rack-mounted
- Weight: 0.34 kg
FAQ
- Q1: What is the primary function of the IC698ETM001 module?
The IC698ETM001 enables Ethernet-based communication between RX7i control systems and other devices using TCP/IP protocols. - Q2: Does the IC698ETM001 support redundant IP addressing?
Yes, it supports redundant IP addressing, allowing two Ethernet modules to share the same IP address for greater redundancy. - Q3: How can the communication protocol be upgraded?
The communication protocol is stored in flash memory, and updates can be applied via the CPU serial port. - Q4: What is the operating temperature range of the module?
The operating temperature range is from 0°C to 60°C.
