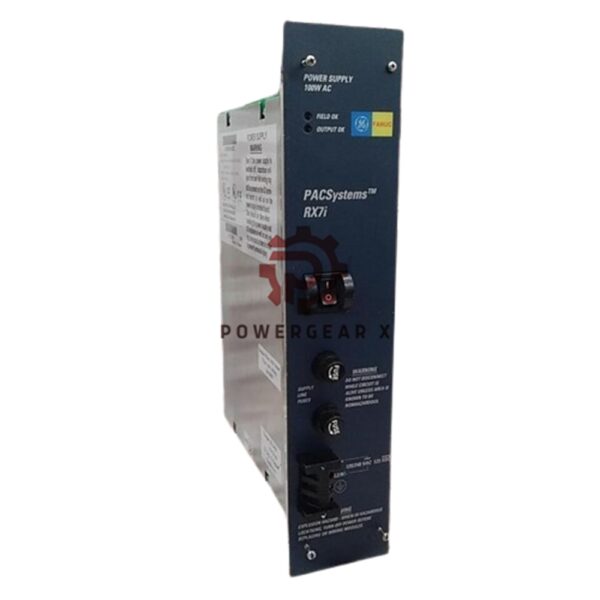

GE Fanuc IC698PSA100 | RX7i Power Supply Module

Overview:

The IC698PSA100 is a reliable power supply module designed for use with the GE Fanuc RX7i PACSystems series. It provides essential power for various system modules, delivering three key DC outputs: +5 VDC, +12 VDC, and -12 VDC. This robust module ensures a steady power supply with protection features like overcurrent, overvoltage, and overtemperature safeguards. The power supply operates efficiently without forced air cooling in ambient temperatures ranging from 0°C to 60°C.

Key Features:

• Multi-Output: Provides +5 VDC (up to 20A), +12 VDC (up to 2A), and -12 VDC (up to 1A) outputs for diverse system needs.
• Power Rating: 125W typical, 150W maximum input, delivering a maximum output of 100W across all outputs.
• Wide Input Range: Supports input voltages from 85 to 264 VAC or 100 to 150 VDC, compatible with various power sources.
• Fault Protection: Safeguards against overcurrent, overvoltage, and overtemperature conditions to ensure system reliability.
• Mounting: Simple slide-in rack mount for easy installation into the leftmost slot (Slot 0) of the PACSystem RX7i main rack.
• On/Off Switch: Logic-level switch on the front panel to control power without interrupting the AC line input.
• LED Indicators: Visual indicators to monitor both field and output status, providing feedback on system health.

Technical Specifications:

• Brand: GE Fanuc (Now Emerson Automation)
• Model: IC698PSA100
• Series: PACSystem RX7i
• Nominal Voltage: 120/240 VAC or 125 VDC
• Input Voltage Range: 85 to 264 VAC or 100-150 VDC
• Power Input: 125W typical, 150W maximum
• Output Voltage: +5.1 VDC, +12 VDC, -12 VDC
• Current Output: +5.1 VDC (0-20A), +12 VDC (0-2A), -12 VDC (0-1A)
• AC Input Frequency: 47-63 Hz
• Power Factor: Minimum 0.99
• Isolation: 1500 Volts
• Ride Through: 15 milliseconds
• Holdup Time: 5 ms
• Operating Temperature: 0 to 60°C
• Fault Protection: Overvoltage, Overcurrent
• Mounting Location: Slot 0 (Leftmost Slot)
• Wiring Terminals: Input Terminals: AWG #16, GND Terminals: #12 AWG

FAQ:

1. What is the maximum current output of this power supply?
   • The IC698PSA100 provides a maximum current of 20A for +5 VDC, 2A for +12 VDC, and 1A for -12 VDC.
2. What is the purpose of the on/off switch?
   • The logic-level on/off switch controls the power output without interrupting the AC input, providing convenient operation.
3. Can this power supply work with both AC and DC input?
   • Yes, the IC698PSA100 supports both 85 to 264 VAC and 100 to 150 VDC inputs.
4. What are the temperature operating conditions?
   • The module operates within a temperature range of 0°C to 60°C without the need for forced air cooling.
