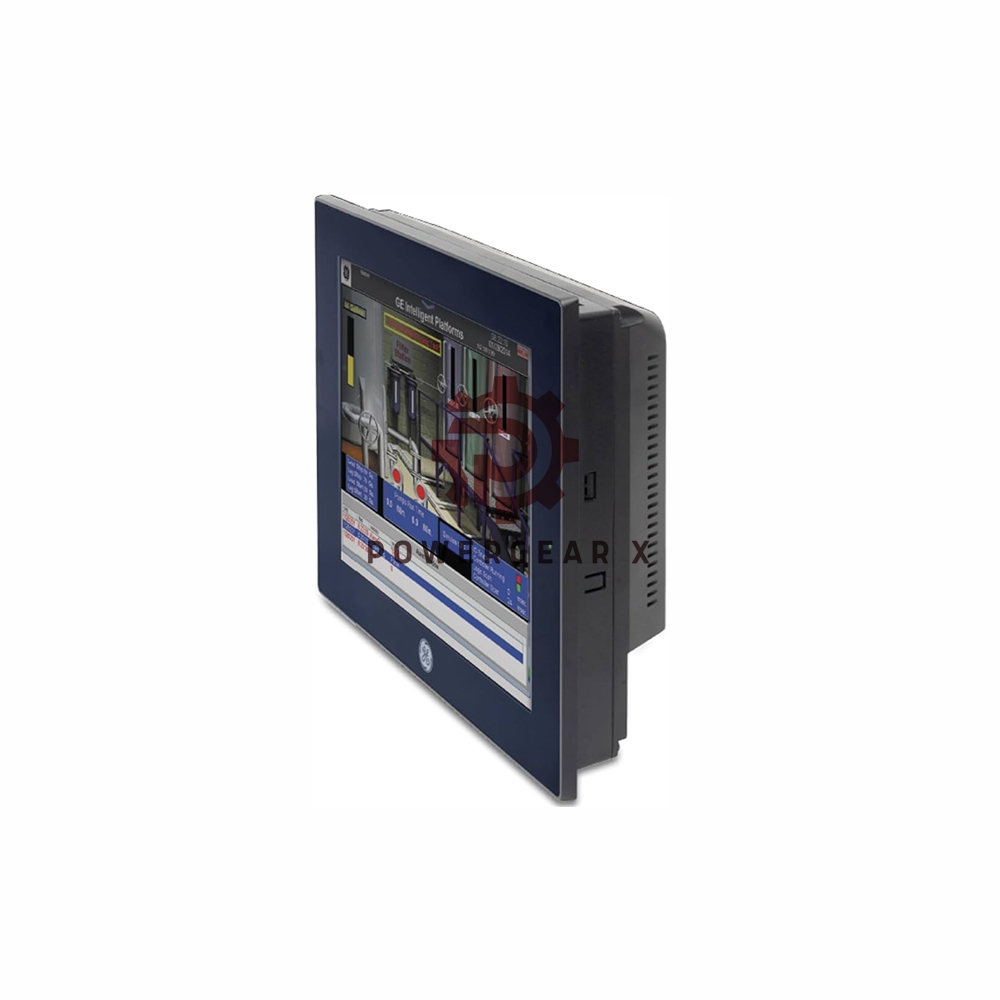

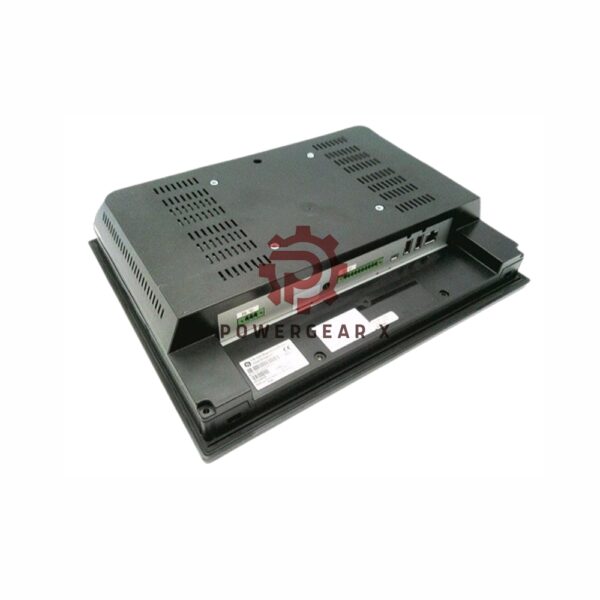

GE Fanuc IC755CSS12CDB | QuickPanel+ Operator Interface

Overview

The GE Fanuc IC755CSS12CDB QuickPanel+ is a robust and advanced 12″ operator interface that provides excellent control and monitoring capabilities. Designed for demanding industrial environments, this device is built to support various applications with dual Ethernet ports, multiple serial communication options, and extensive I/O connectivity. The user-friendly Color TFT display with multi-touch capacitive screen ensures an intuitive interaction for operators. With high-quality construction and versatile features, the QuickPanel+ is suitable for a wide range of industrial automation systems.

Technical Specifications

• Brand: GE Fanuc
• Model: IC755CSS12CDB
• Display Type: 12.1” Color-TFT with 800 x 600 resolution
• Display Size: 12.1” Diagonal
• Memory: 1 GB DRAM
• Serial Ports:
  • Com #1: RS 232
  • Com #2: RS 422/485/232
• Ethernet:
  • LAN #1: 10/100 Mbps
  • LAN #2: 10/100 Mbps
• USB Ports:
  • 2x USB 2.0 (Type-A)
  • 1x USB 2.0 (Mini Type-B)
• External Storage: SD/SDHC card slot
• Input Voltage: 24 VDC @ ±20%
• Power Consumption: Maximum 30W
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Storage Temperature: -10 to 60°C (14 to 140°F)
• Operating Humidity: 85% RH (non-condensing at 30°C)
• Indicators: Tri-color LED (Amber/Green/Red)
• Panel Cut-Out (W x H): 11.89” x 8.98” (30.2cm x 22.8cm)
• Panel Dimensions (W x H x D): 13.27” x 10.35” x 2.76” (33.7cm x 26.3cm x 7cm)
• Shipping Weight: 8 kg

FAQ

Q1: What is the resolution of the GE Fanuc IC755CSS12CDB display?
A1: The display offers a resolution of 800 x 600 pixels for sharp, clear visuals.

Q2: What kind of serial communication options does it support?
A2: It supports RS 232, RS 422/485/232 for flexible communication with a variety of devices.

Q3: How many USB ports does this model have?
A3: The model has two USB 2.0 Type-A ports and one USB 2.0 Mini Type-B port.

Q4: What is the operating temperature range?
A4: It operates within the range of 0 to 55°C (32 to 131°F).

Q5: Can I use external storage with this device?
A5: Yes, the IC755CSS12CDB supports SD/SDHC cards for external storage.

For more detailed information, please check official datasheet. GE quickpanel-pacsystems
