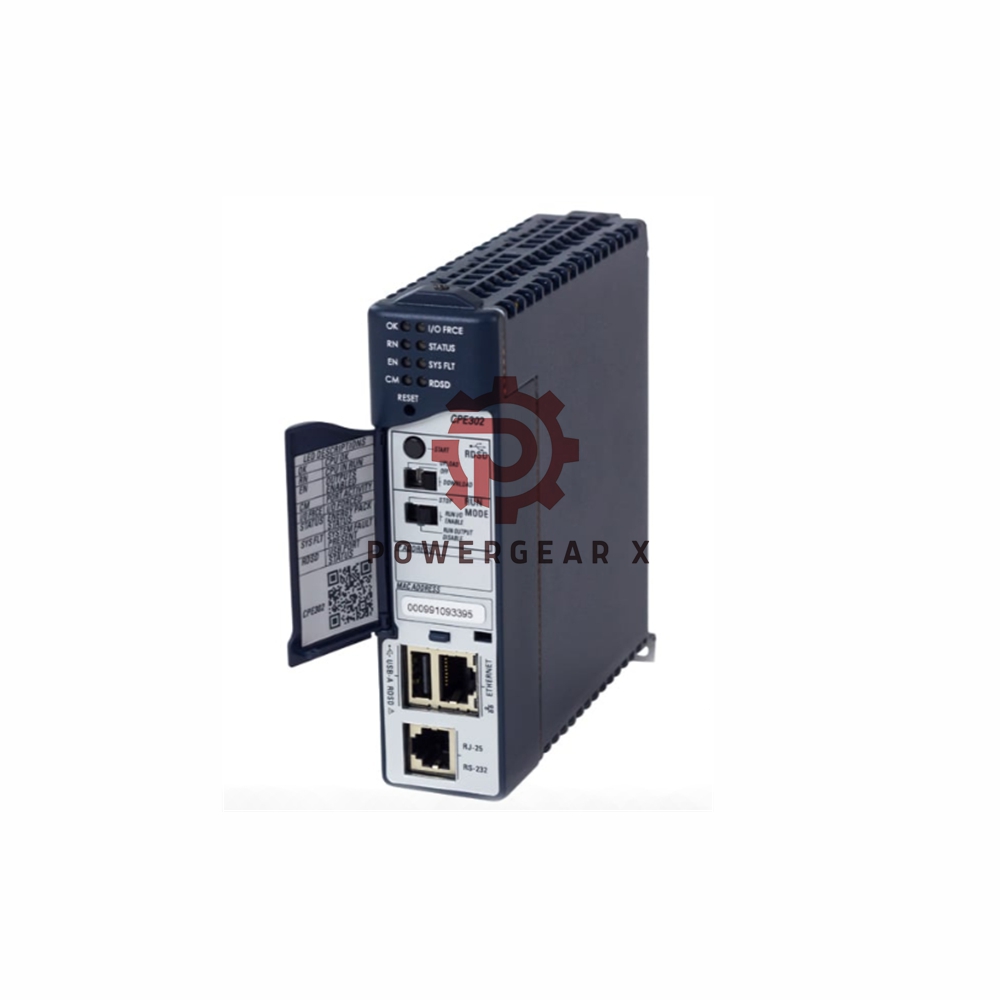

GE Fanuc RX3i IC695CPE302 Central Processing Unit

Overview

The IC695CPE302 is a high-performance RX3i Central Processing Unit developed by GE Fanuc. This modular controller is designed to integrate seamlessly into industrial automation systems, providing robust functionality and connectivity options.

Technical Specifications

Basic Information:

• Brand: GE Fanuc
• Model: IC695CPE302
• Suffix Meaning: CPE indicates Central Processing Engine.

Storage and Processing:

• Program Storage: 2 MB of user memory
• Type of Memory Storage: SRAM and Flash
• Processor Speed: 1.1 GHz

Input/Output Specifications:

• Discrete I/O: 16k bits
• Analog I/O: 16k words

Power Requirements:

• Current Consumption: 1 Amp at +5 and +3.3 Volts DC
• Additional Current: 0.5 Amps at +24 Volts DC

Communication Interfaces:

• Serial Communication: 1 RS-232 port
• Ethernet Port: Yes (10/100 Mbps)
• USB Interface: Standard 2.0
• Protocol Support:
  • Modbus RTU Slave
  • SNP Slave
  • Serial I/O
  • Modbus TCP/IP
  • SRTP Client/Server
  • OPC-UA Server
  • EGD

Environment and Mounting:

• Operating Temperature: 0 to 60 degrees Celsius
• Mounting Option: Rack mounting

Additional Features:

• Status LEDs: 8 on faceplate
• Real-Time Clock Backup: Coin battery
• User Memory Retention: No batteries required
• Internal Temperature Monitoring: Yes

FAQ

Q1: What are the key communication protocols supported by the IC695CPE302?
A1: The module supports multiple protocols including Modbus TCP/IP, SRTP, OPC-UA, and EGD.

Q2: Can the IC695CPE302 function without external batteries?
A2: Yes, it retains user memory without requiring external batteries.

Q3: What is the recommended operating temperature for this module?
A3: The operating temperature range is from 0 to 60 degrees Celsius.
