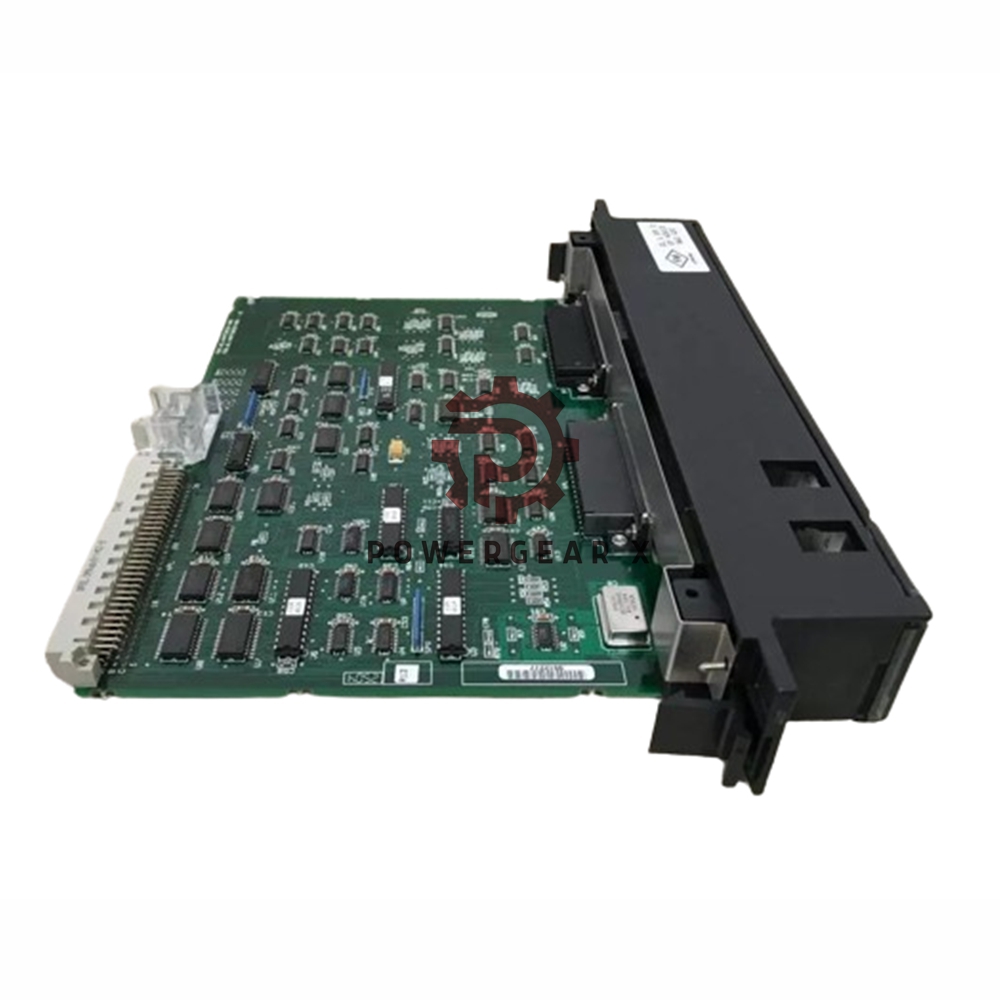

GE Fanuc Series 90-70 IC697BEM711 Bus Receiver Module

Overview

The IC697BEM711 is a high-speed Bus Expansion Module (BEM) from GE Fanuc’s Series 90-70 programmable logic controller (PLC) series, now part of Emerson Automation. Designed for expanding IC697 PLC systems, this Bus Receiver Module (BRM) enables the connection of up to seven expansion racks, providing greater flexibility and scalability to your automation setup.

Key Features:

• Dual Ports: Two 25-pin D-shell connectors for easy integration.
• Expansion Capabilities: Connects up to seven additional racks with a maximum cable length of 50 feet (15 meters).
• Status LEDs: Indicates Module OK, Last Rack, and Bus Active statuses for easy troubleshooting.
• Electrical Isolation: Non-isolated differential communication ensures stable performance.
• Easy Installation: Must be installed in Slot 1 on the IC697 PLC baseplate, with no DIP switches required.

Technical Specifications:

• Brand: GE Fanuc / Emerson Automation
• Model: IC697BEM711
• Series: Series 90-70
• Module Type: Bus Receiver Module (BRM)
• Effective Data Rate: 500 Kbytes/sec
• Ports: 2 x 25-pin D-shell connectors
• Current Draw: 0.8 Amps (at 5V DC)
• Voltage Input: 5V DC
• Rack Addressing: Configured via jumper settings
• Maximum Cable Length: 50 feet (15 meters)
• Slot Width: Single Slot
• Installation Location: Slot 1 on the IC697 PLC CPU baseplate
• Number of Expansion Racks: 7

For more detailed information, please check official datasheet: series_90-70_plc
