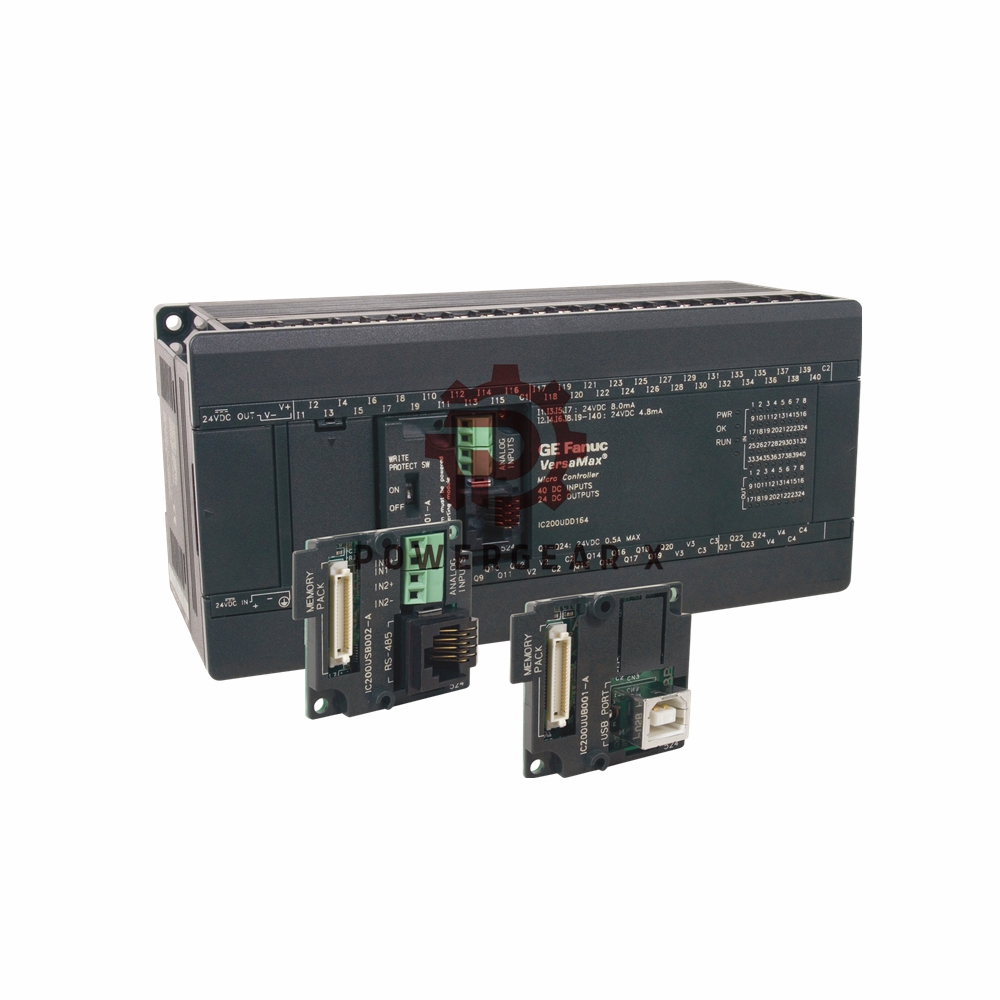

GE Fanuc | VersaMax IC200ALG230 Analog Input module

Overview:

The IC200ALG230 is a versatile analog input module from the VersaMax series by GE Fanuc (now under Emerson Automation). It is designed to handle four (4) analog inputs, configurable for both 4-20 mA current and -10VDC / +10VDC voltage signals, providing high precision with 12-bit resolution. Ideal for industrial automation systems requiring fast and accurate analog data conversion.

Features:

• Four (4) Analog Inputs: Allows for flexible monitoring of different signals.
• Configurable Signal Types: Supports 4-20 mA current and ±10 VDC voltage input.
• 12-Bit Resolution: High accuracy for critical analog signal processing.
• Bipolar/Unipolar Voltage Type: Default is Bipolar, but configurable.
• Fast Response Times: 5 ms for real-time signal processing.
• Update Rate: As fast as 0.4 ms for high-speed applications.
• Single-Ended Input Type: Simplifies the signal conversion.
• LED Indicators: INT PWR LED and OK LED for easy status monitoring.
• Optical Isolation: Rated 250VAC continuous, 1500VAC for 1 minute for enhanced protection against surges.

Technical Specifications:

• Brand: GE Fanuc (Emerson Automation)
• Model: IC200ALG230
• Number of Channels: 4
• Input Type: Single-Ended
• Analog Input Signal Types: 4-20 mA and ±10 VDC
• Analog Input Resolution: 12-bit
• Response Time: 5.0 ms
• Update Rate: 0.4 ms
• Configuration: Via 2 jumpers
• Backplane Current: 125 mA at 5V DC
• Voltage Type: Bipolar (default), configurable for Unipolar
• Diagnostics: Loss of internal power
• LED Indicators: INT PWR LED; OK LED
• Reaction to Errors: Hold last state or go to predefined value
• Optical Isolation: 250VAC continuous; 1500VAC for 1 minute
• Configuration Parameters: Range select, mode select
