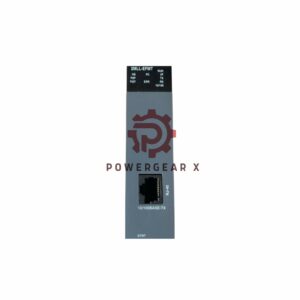

Honeywell 2MLL-EFMF Ethernet I/F Module

Overview

The MasterLogic Ethernet Module series, including models 2MLL-EFMT and 2MLL-EFMF, offers high-speed Ethernet communication for seamless integration within industrial automation systems. Designed for robust performance and reliable operation, these modules ensure optimal data exchange with various protocols and network configurations.

Features

• Dual Ethernet Standards: IEEE802.3U compliant for 100baseTx (Twisted Pair) and 100baseFx (Fiber Optic) configurations.
• Comprehensive Protocol Support: TCP/IP, UDP/IP, and Modbus TCP protocols ensure versatile integration.
• Dynamic IP Support: DHCP protocol support for ADSL environments.
• Highway Topology: Baseband transmission supporting 10/100 Mbps and 100 Mbps speeds.
• SoftMaster Compatibility: Enables IP address configuration and firewall settings for secured access.
• Advanced Diagnostics: Includes Auto-scan, Ping Test, Frame Monitor, and Link Monitor tools.
• LED Indicators: Provide real-time status for network and module diagnostics.
• Compact Design: Suitable for diverse industrial applications requiring reliability and speed.

Technical Specifications

• Brand: MasterLogic
• Model: 2MLL-EFMF
• Ethernet Standards: IEEE802.3U
• Protocols Supported: TCP-IP, UDP-IP, Modbus TCP slave, and MLDP (Experion Interface).
• Physical Layer: 100baseTx (UTP/STP, RJ45) and 100baseFx (Fiber-Optic, SC connector).
• Transmission Distance: Up to 100m (UTP/STP) and 2Km (Fiber Optic).
• Maximum Nodes: 64
• Configuration Software: SoftMaster-NM
• Current Consumption:
  • 2MLL-EFMT: 410 mA
  • 2MLL-EFMF: 630 mA

For more detailed information, please check official datasheet: pmt-hps-master-logic-200-specifications-and-technical-data
