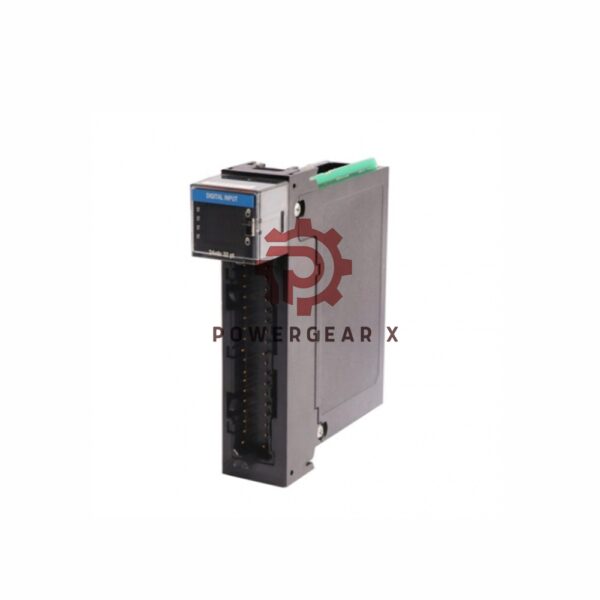

Honeywell TC-FID321 – 24 Vdc Sink Digital Input

Overview

The TC-FID321 is a 32-channel digital input module designed for industrial automation systems. It supports a 24 VDC sinking configuration and is ideal for applications requiring reliable input processing, such as control panels, machinery, and automation systems.

Key Features:

• 32 sinking digital inputs, organized in 2 groups of 16 channels.
• Compatible with 19.2Vdc to 31.2Vdc external power.
• High current handling with 2mA minimum, 4.1mA nominal, and 6.0mA maximum ON-state current.
• Selectable input filtering time for both ON to OFF and OFF to ON transitions (ranging from 0.25ms to 32ms).
• Status indicators for each of the 32 channels.
• DIN-rail mountable, ensuring easy installation in industrial control cabinets.

Technical Specifications:

• Brand/Model: TC-FID321, 24 Vdc Sink Digital Input Module
• Power Supply: 19.2Vdc to 31.2Vdc (includes 5% AC ripple)
• Input Impedance: 6.0KΩ
• ON-State Voltage: 19.2Vdc to 31.2Vdc
• OFF-State Voltage: 5.0Vdc max
• Maximum Isolation Voltage: 2121Vdc for 2 seconds between user and system (no isolation between channels)
• Current: ON-State: 4.1mA nominal; OFF-State: 1.5mA minimum
• Filter Time: 0.25ms default, selectable up to 32ms for both ON and OFF transitions
• Thermal Dissipation: 20.5 BTU/hr at 31.2Vdc
• Size: 94mm x 94mm x 69mm (3.7in x 3.7in x 2.7in)

FAQ:

1. What is the power supply requirement for the TC-FID321?
2. The TC-FID321 requires an external DC voltage between 19.2Vdc and 31.2Vdc, with up to 5% AC ripple.
3. What is the input filter time range?
4. The input filter time can be adjusted from 0.25ms to 32ms for both ON to OFF and OFF to ON transitions.
5. Can I use this module for isolating individual channels?
6. No, there is no isolation between individual channels; however, isolation exists between the system and the user.

For more detailed information, please check official datasheet: C200-introduction
