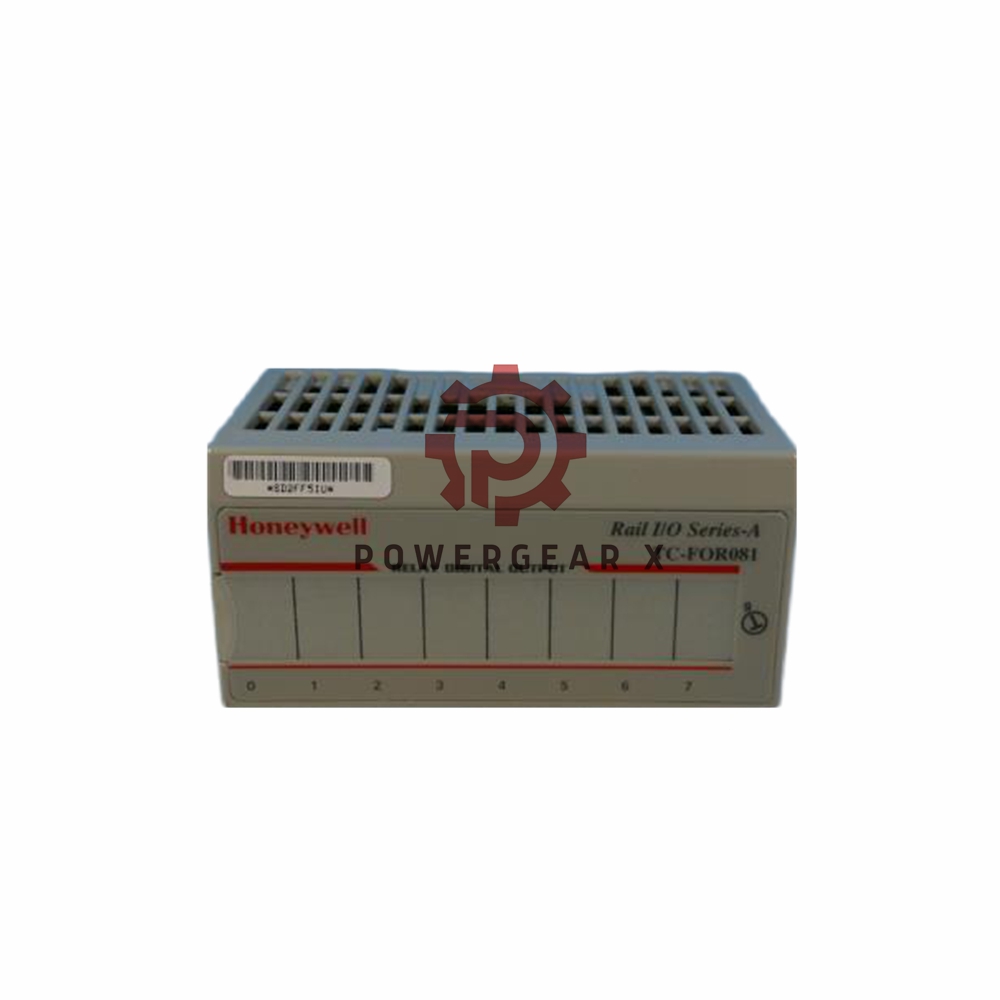

Honeywell TC-FOR081 Relay Digital Output

Overview

The TC-FOR081 Relay Digital Output Module is a versatile industrial solution designed for controlling isolated electromechanical relays in various automation systems. With robust power ratings, high isolation voltage, and reliable performance, it meets the demands of both resistive and inductive loads in complex environments.

Features

1. Output Type: 8 isolated, normally open electromechanical relays.
2. Power Ratings:
   • Up to 480W for resistive outputs.
   • Up to 480VA for inductive outputs.
3. Wide Voltage Range: Supports 5-30V DC, 125V DC, 125V AC, and 240V AC.
4. High Isolation Voltage: 2550V DC ensures safety across critical components.
5. Field-Side Indication: 8 yellow logic-driven status LEDs for real-time monitoring.
6. Compact Design: Dimensions of 46mm x 94mm x 53mm save space in control cabinets.

Technical Specifications

• Model and Brand: Honeywell TC-FOR081 Digital Output Relay Module.
• Voltage Range:
  • DC: 5-30V @ 2A, 48V @ 0.5A, 125V @ 0.25A.
  • AC: 125V @ 2A, 240V @ 2A.
• Thermal Dissipation: 18.8 BTU/hr maximum.
• Relay Performance:
  • Minimum load: 100μA @ 100mV DC.
  • Switching frequency: 0.3Hz (1 operation/3s at rated load).
• Inrush Current: 15A maximum.
• Operational Life: Minimum 100,000 operations at rated loads.
• Power Dissipation: 5.5W maximum.
• Environmental Tolerance:
  • Operating Temperature: 0 to 55°C.
  • Storage Temperature: -40 to 85°C.

For more detailed information, please check official datasheet: C200-introduction
